74HCT14 Nexperia Hex inverting Schmitt trigger Data Sheet
Download PDF datasheet for Nexperia 74HCT14 Hex inverter with Schmitt-trigger inputs (EN) 16 pages Rev.9 2021 zip
Description

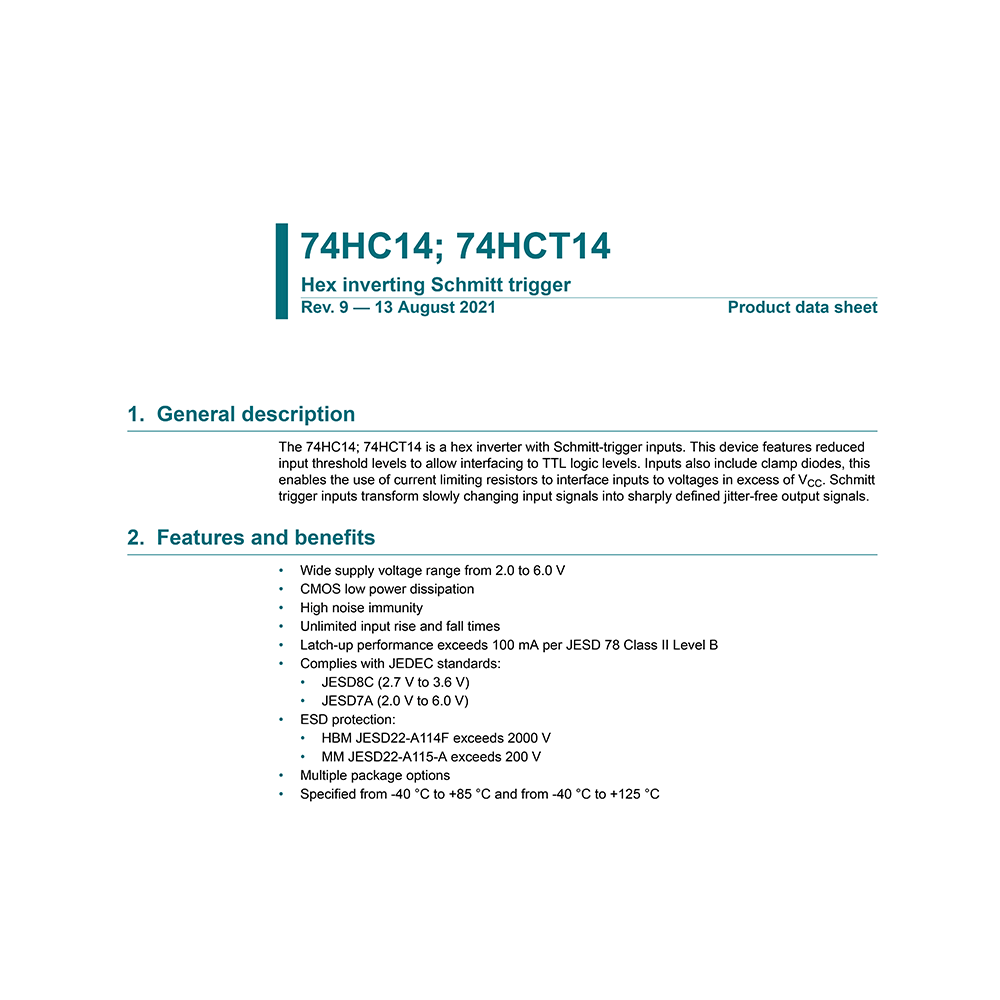

This PDF datasheet is for the Nexperia 74HCT14 Hex inverter.
About the Item
Nexperia 74HCT14 Hex inverter with Schmitt-trigger inputs
Hex inverting Schmitt trigger
The 74HCT14 is a hex inverter with Schmitt-trigger inputs.
This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of Vcc. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– General description
– Features and benefits
– Applications
– Ordering information
– Functional diagram: Logic symbol, IEC logic symbol, Logic diagram
– Pin description
– Functional description
– Limiting values
– Recommended operating conditions
– Static characteristics
– Dynamic characteristics
– Waveforms and test circuit
– Test circuit for measuring switching times
– Test data
– Transfer characteristics
– Transfer characteristics waveforms
– Application information
– Package outline
– Abbreviations
– Revision history
Why Download the Datasheet?
This datasheet provides all the information from Nexperia about the 74HCT14 Hex inverter, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to Download the Datasheet?
Download it by clicking the button below
