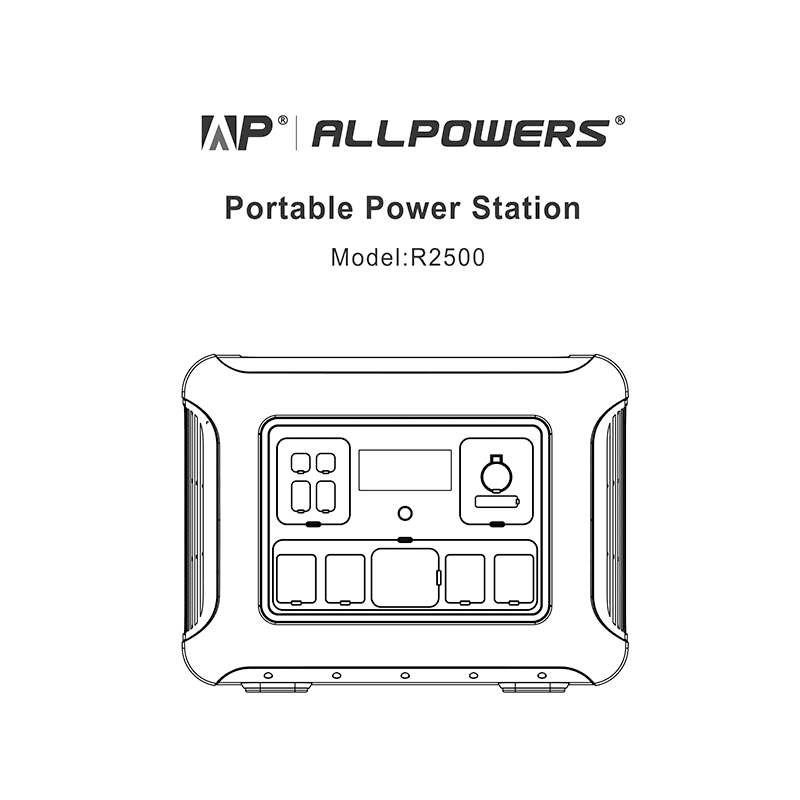

ALLPOWERS R2500 Portable Power Station User Manual
Download PDF user manual for Allpowers R2500 Portable Power Station 2500W (4000W surge peak) 2016Wh LiFePO4 (EN|DE|JA|ZH) 64 pages zip
Description
This PDF user manual is for the ALLPOWERS R2500 Portable Power Station.
About the Item
ALLPOWERS R2500 Portable Power Station 2500W (4000W surge peak) 2016Wh LiFePO4
Experience unparalleled performance with its massive 2016Wh capacity and powerful AC output of 2500W (4000W peak). This powerful power station is ready to provide reliable backup power for your home.
From charging at home to more mobile solutions, we offer multiple ways to charge your R2500: AC charging, Car charging, solar charging, dual charging (AC+solar).
Monitor & control from the ALLPOWERS Smart App: Easy to realize by connecting with ALLPOWERS APP via WIFI power monitoring/function setting/remote control/system upgrade.
ALLPOWERS R2500 portable power supply is equipped with UPS (uninterruptible power supply). After turning on the UPS function, even if there is a sudden power failure, the connected electrical products will not stop and can be used as they are. There is a momentary interruption when switching, but only 15ms if the switching takes longer.Since the current of an ordinary household AC power outlet is 15A, the maximum output power is 1500W when using UPS mode.
R2500 is equipped with an excellent lithium iron phosphate battery. Due to the low energy density, it is heavier than ternary Li-ion batteries, but has excellent cycle times. Due to our unique technology, the ALLPOWERS R2500 life cycle number exceeds 3500. Even with daily use, it will last approximately 10 years or more.
ALLPOWERS R2500 uses a BMS with higher performance than ordinary portable power supplies to properly manage high temperature protection, overvoltage protection, low voltage protection, discharge low temperature protection, overcurrent protection, overload protection, short circuit protection, charging overvoltage protection, etc. to ensure user safety.
FEATURES
– 2016Wh Capacity;
– 2500W Pure Sine Wave Inverter (4000W peak);
– Maximum 2000W dual input in 1 hour (AC + Solar);
– Maximum 1000W solar charge in 2 hours;
– 4 ways to charge (AC/Solar/Auto/Double AC+Solar);
– 15ms uninterruptible home backup UPS;
– Long-life LiFePO4 battery with over 3,500 charging cycles;
– Expandable up to 3x B1000 expansion battery;
SPECS
– Capacity: 2016Wh(48V-42Ah)
– Battery type: LiFePO4
– AC Output: 4x 100-120V/220-240V 2500W Max (Surged 4000W)
– USB-C Port: 2x 5/9/15V/3A, 20V/5A, 200W Max.
– USB-A Outlets: 2x 5V/2.4A, 12W Max.
– 2x 5V/3A, 9V/2A, 12V/1.5A, 36W Max.
– 2* DC5525 / Car Port: 12V-10A, 120W Max
– AC Input: (100~120)V ~ 15A Max, (220-240)V ~ 7A Max, 1500W max.
– Solar Input: 12~150V 20A, 1000W Max.
– Car Input: 12V/24V DC
– Dual Input (AC+Solar): 2000W max.
– Dimensions: 456 x 360 x 346 mm / 17.95 x 14.17 x 13.62 inch
– Weight: 29 kg / 63.93 lbs
– UPS: Support
– App Connection: Wi-Fi / Bluetooth
Before using this product, please read the user manual of this product to ensure correct use after full understanding.
(PDF) USER MANUAL (ENGLISH) (DEUTSCH) (CHINESE | ZH) (日本語)
Why download the Manual?
This user manual provides all the information from ALLPOWERS about the R2500 power station, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to download the Manual?
Download it by clicking the button below
