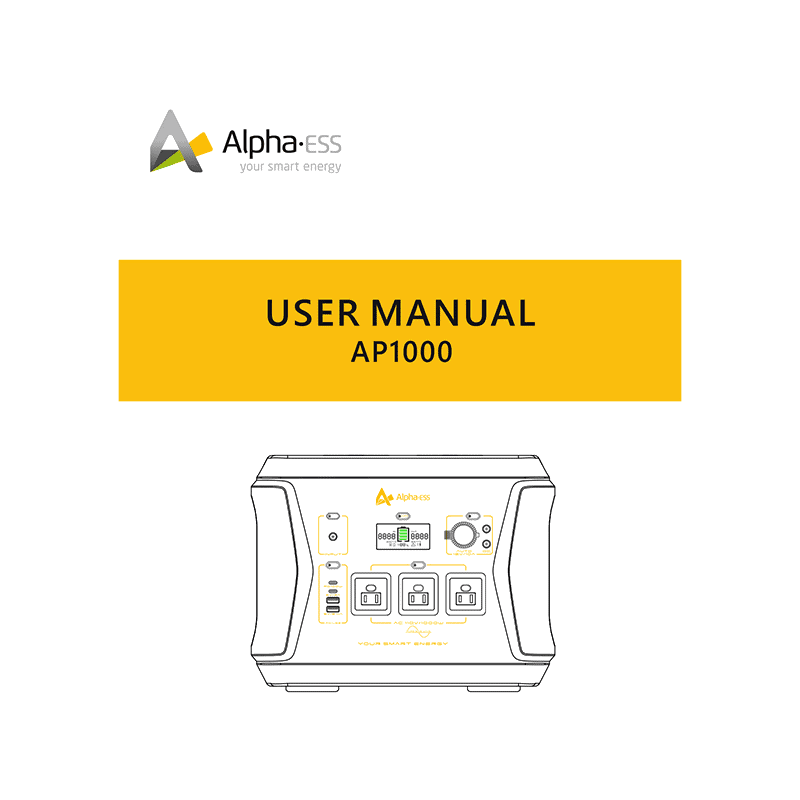

AlphaESS AP1000 Portable Power Station User Manual

Description

This PDF user manual is for the AlphaESS AP1000 Portable Power Station.

About the Item

AlphaESS AP1000 Portable Power Station 1000W (2000W peak surge) 1036.8Wh Lithium Ion

– Capable to charge 12 devices simultaneously
– Fast solar recharging with MPPT
– 94V0 flame-resistant case
– Wild & Practical design
– Wireless charging
– SOS function

Please read the user manual thoroughly before using this product, and keep the manual for future reference.

(PDF) USER MANUAL (ENGLISH)

SUMMARY OF CONTENTS

ABOUT ALPHA-ESS

WARNING AND ATTENTION

PACKAGE LIST
-What’s in the box

SPECIFICATION
– Battery
– Input ports
– Output ports
– General info
– LED lighting function

PRODUCT TOUR AND FUNCTIONS
– Product view
– Names of parts, buttons, indicators, input/output ports

CHARGE AND DISCHARGE
– Warning symbols on LCD screen
– Battery symbol

HOW TO RECHARGE
– Racharging from the wall with AC adapter (7-8 hours)
– Racharging from a USV-C charger
– Racharging from auto charger
– Racharging from solar panel (DC5525 12-24V)

WHAT IT CAN POWER
– Output from USB-A, USB-C ports
– Output from AC ports
– Output from DC ports
– Wireless charging

BATTERY MANAGEMENT SYSTEM (BMS)

USE TIPS
– First use
– Energy consumption tip
– Low load
– An operating principle (The fan will run when cell temperature is higher than 113 deg F or AC output power is more than 400W).
– Battery recycle

TROUBLESHOOTING

1. PROBLEM WITH INPUT (AC/DC)
– Make sure the ORIGINAL AC/DC charger cables are connected firmly and correctly.
– Check if the charging indicator is ON.
– Check if the LCD shows INPUT WATTS.
– Check if the power station can be recharged via the DC/AC charger cables normally.

2. PROBLEM WITH SOLAR CHARGING
– Make sure the ORIGINAL cable is connected firmly and correctly.
– Use a SOFT cloth to remove the dust or dirt on the solar panel.
– Make sure there is NO shadow cast on the panel.
– Test it under midday STRONG sunlight.
– Try to unplug and plug for several times.
Note: Test if the power station can be recharged via the AC charger normally, if yes, please check if something is wrong with the solar panel.

3. PROBLEM WITH OUTPUT(AC/DC/USB/LCD SCREEN)
– Try RESETTING the power station by holding the INFO BUTTON for 15 seconds.
– Recharge the power station to 100% and test it again.

FAQ

Ql: What devices can AP1000 power?
A1: Please note that the total output of AP1000 is 1000W, which means it can power any devices under 1000W.

Q2: Can the AP1000 be recharged while using?
A2: Yes, AP1000 supports pass-through charging.

Q3: Can the AP1000 be used as UPS?
A3: No, the AP1000 can’t be used as UPS, need to press the power button to turn on the AC/USB /DC output, so it can’t be turned on and off automatically.

Q4: How to know the working time for my device?
A4: Working time =1036Wh* 0.9 / operating power of your device.

Q5: Does the AP1000 include a built-in MPPT controller?
A5: All AlphaESS power stations have built-in MPPT controller.

Q6: How do I know the AP1000 is recharged?
A6: Check if the LCD Battery Display shows the input watts.

Q7: Can I keep this charged up by keeping it plugged in all the time in case of power outage?
A7: Yes, you can keep the battery plugged in to charge.

Q8: Can I use it indoors?
A8: Yes, the AP1000 is safe to use indoors.

Q9: Why it takes so long to recharge the power station from 99% to 100%?
A9: When the power station is charged at low power, the charging power is the largest. With the increase of the power, the internal battery pack voltage of the energy storage gradually increases to the charging limit voltage and then enters the trickle charging stage with a lower charging rate, which can protect the battery from high current impact to damage the internal structure, so the charging speed will slow down.

Q10: Can I find any video about recharging the AP1000?
A10: Please kindly check the video in the following instructions:
1. Go to www.alphaess-pps.com
2. Click the “Support”, and then choose “FAQ”
3. Check “Product Video”

Q11: Are the output ports regulated, and if so, which ones are regulated?
A11: All output ports of AlphaESS power stations are regulated. The voltage won’t change when the battery power decreases.

Q12: Can the battery inside be replaceable?
A12: No, the batteries inside of AlphaESS power station are not replaceable.

More questions, please kindly find the answer in the following way:
1. Go to www.alphaess-pps.com
2. Click the “Support”, and then choose “FAQ”

WARRANTY
– Warranty period
– After-sales service
– Not applicable conditions

WARRANTY CARD

PHYSICS TECHNICAL TERM REFERENCE
