Anker SOLIX C1000 Portable Power Station User Manual
Download PDF user manual for Anker SOLIX C1000 Portable Power Station 1800W (2400W surge peak) 1056Wh LiFePO4 Model: A1761 (EN|FR|JA) V1, V4 2023, 2024 zip
Description
This PDF user manual is for the Anker SOLIX C1000 Portable Power Station.
About the Item
Anker SOLIX C1000 Portable Power Station 1800W (2400W surge peak) 1056Wh LiFePO4 Model: A1761
FEATURES:
– Achieve 80% battery capacity in just 43 minutes and a full charge in under an hour.
– Power up to 99% of appliances at once with 2400W access 11 Ports.
– Offering up to 600W Fast Solar Recharging, fully powering the device in just 1.8 hours.
– Monitor energy intelligently via the app. Connect with Bluetooth and Wi-Fi.
– Long-Lasting LFP batteries with 3,000 Cycles.
– Providing unparalleled compatibility and capacity for RVs and Outdoor Camping.
TECH SPECS
– Capacity: 1056Wh
– Battery Type: LiFePO4 (Lithium Iron Phosphate)
– Battery Life Cycles: 3,000 (80% Capacity)
– AC Continuous Output: 1800W Pure Sine Wave
– AC Surge Output: 2400W
– AC Outlets: 6x
– Solar Input Recharge: 600W Max, 11-60V MPPT
– AC Input Recharge: 1,300W Max
– Cigarette Lighter Output: 120W, 12V/10A
– UPS Switch Time: less than 20ms
– USB-A Output: 2x 12W
– USB-C Output: 1x 100W, 1x 30W
– Scalability: Up to Max. 2112Wh Capacity with Expansion Battery (Coming soon.)
– Discharging Temperature: -4 deg F – 104 deg F
– Charging Temperature: 32 deg F – 104 deg F
– Wireless Connection for App: Wi-Fi and Bluetooth
– Length x Width x Height: 14.8 x 8.07 x 10.5 in / 37.6 x 20.5 x 26.7 cm
– Net Weight: 28.44 lb / 12.9 kg
(PDF) USER MANUAL (ENGLISH) / (FRANÇAIS) / (日本語)

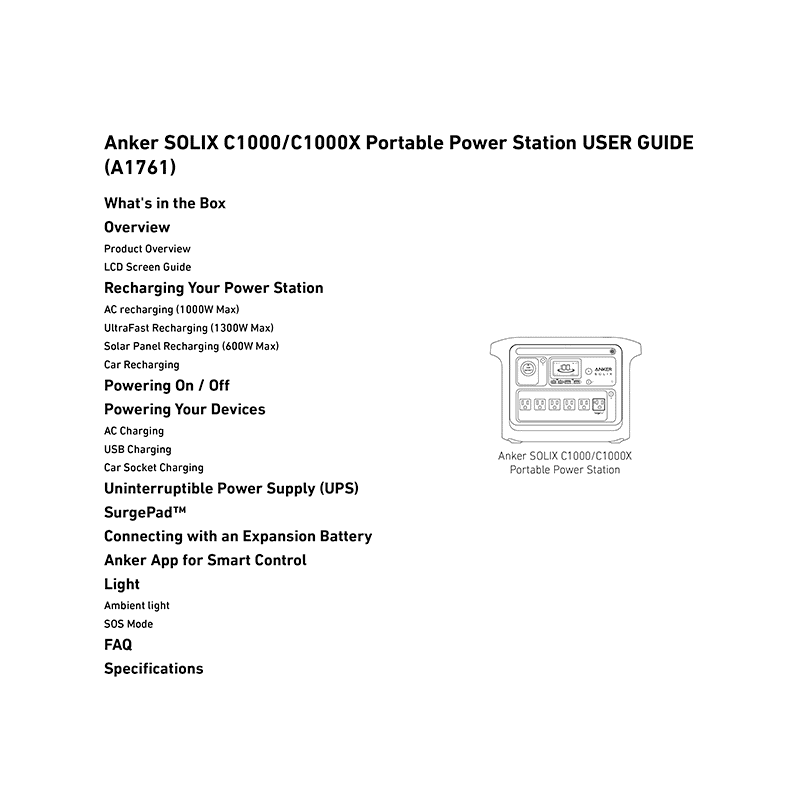

SUMMARY OF CONTENTS
WHAT’S IN THE BOX
OVERVIEW
– Product Overview
– Product Appearance
– Description of buttons, indicators, input/output ports
LCD SCREEN GUIDE
– Description of icons and symbols
– How to turn on Bluetooth and Wi-Fi
– How to turn off Bluetooth and Wi-Fi
– How to reset Bluetooth and Wi-Fi
RECHARGING YOUR POWER STATION
– AC recharging (1000W Max)
– UltraFast Recharging (1300W Max). How to activate UltraFast Recharging.
– Solar Panel Recharging (600W Max)
– Car Recharging
POWERING ON / OFF
– How to turn your power station on or off.
– How to turn the screen on or off.
– How to set screen auto-off time
– How to set standby duration
POWERING YOUR DEVICES
– AC Charging
– USB Charging
– Car Socket Charging
UNINTERRUPTIBLE POWER SUPPLY (UPS)
To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect your devices via the AC output ports.
SURGEPAD
Using the SurgePad feature, the power station can power high-wattage devices up to 1600W without overload.
CONNECTING WITH AN EXPANSION BATTERY
Your power station can be connected with an expansion battery to double the capacity to 2112Wh. Please refer to the user manual of Anker SOLIX BP1000 Expansion Battery (1056Wh) for detailed instructions.
ANKER APP FOR SMART CONTROL
You can remotely control your power station using the Anker app.
– How to download the Anker app
– How to connect the device to a network
– How to update the Firmware
LIGHT
– Ambient light. How to turn on the ambient light? How to switch between brightness levels?
– SOS Mode. How to turn on SOS mode.
FAQ
Q1: What is the maximum power output of the AC output ports?
A1: The AC output ports can deliver a maximum of 1800W rated power to connected devices.
Q2: What should I do when using a solar charger to charge my power station?
A2: The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-32V solar charger, the current supports 10A max. When you use a 32-60V solar charger, the current supports 12.5A max. We recommend using Anker solar panels (200W or 400W) for the best compatibility.
Q3: Can the USB-C ports charge the power station (input only), or are they output only?
A3: The USB-C ports support output only.
Q4: What should I do when AC recharging fails?
A4: If AC recharging does not work, check if the overload protection switch is turned on. If it is on, press down to reset and then continue recharging.
Q5: How do I reset my power station?
A5: If your power station is not working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn’t work, please contact Anker.
Q6: Why is the power station not working after it hasn’t been used for a long time?
A6: If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This often leads to poor conductivity and a reduced battery lifespan that causes the battery not to work.
Q7: How should I store and maintain the power station?
A7: When storing your power station, please make sure that you:
1) Turn off the main power button.
2) Store the power station in a dry and cool environment.
3) Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Charge it to 100% once every 3 months.
SPECIFICATIONS
