Anker SOLIX C300X Portable Power Station User Manual

Description

This PDF user manual is for the Anker SOLIX C300X Portable Power Station.

About the Item

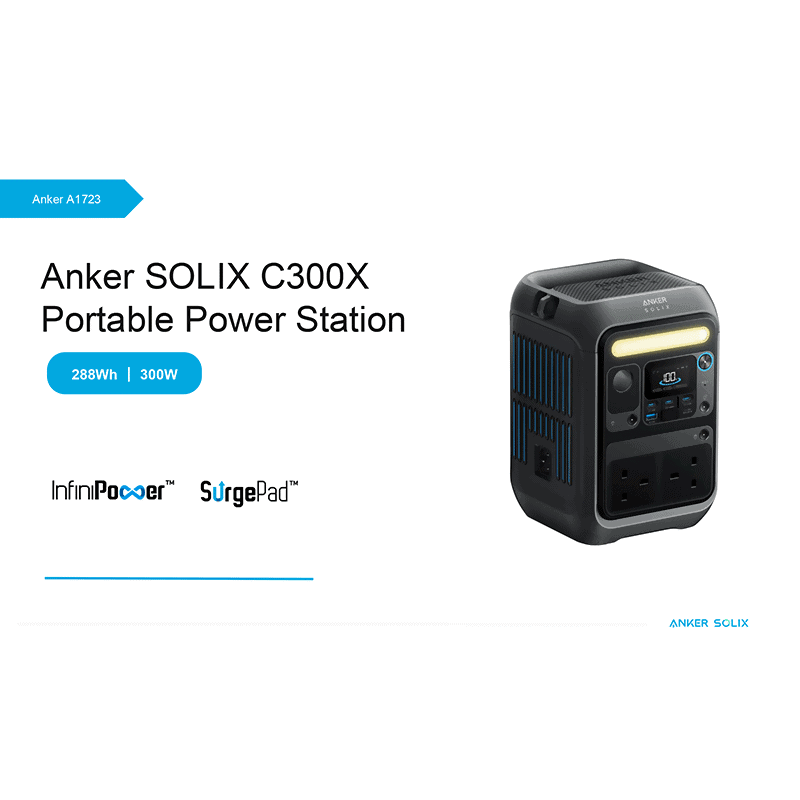

Anker SOLIX C300X Portable Power Station 300W (600W surge peak) 288Wh LiFePO4 Model: A1723

– LiFePO4 batteries offer a 6x longer lifespan than the average power station. Designed for a decade of daily use, with Cycle Life 3000+ (to 80%)
– Equipped with a total 360W output and a 90,000mAh (288Wh) battery, this unit features 8 ports (3xAC, 1xUSB-A, 3xUSB-C and car socket),allowing you to power multiple essential devices and tablets on the go.
– Pair up with 100W solar panel store charge during the day, and enjoy night time activities with the built-in stretchable camping light, while also charging your essential devices.
– Use the dual 140W PD 3.1 USB-C to power up two 16″ MacbookPros from 0% to 50% in just 40 minutes. Can recharge this power station to 100% within 68 minutes with ports as well.
– Ensure continuous power with uninterruptible power supply (UPS) switchover time is under 20ms
– Using the Anker app, you can monitor and control the Anker SOLIX C300X Portable Power Station with real-time visuals and set your preferred discharge limit, battery level, recharging speed, AC timing, screen brightness, and screen time.

Read all the instructions before using the product. Save these instructions.

(PDF) USER MANUAL (ENGLISH) / (FRANÇAIS) / (DEUTSCH)

SUMMARY OF CONTENTS

WHAT’S IN THE BOX

OVERVIEW
– Product appearance
– Names of parts, buttons, indicators, input/output ports

RECHARGE YOUR POWER STATION
– AC Recharging (330W Max)
– Solar Panel Recharging (100W Max). The voltage of the solar panel should be 11V-28V.
– USB-C Recharging (140W Max)
– Car Recharging

POWERING YOUR DEVICE
– How to turn your power station on or off.
– How to turn the screen on or off.
– How to set screen auto-off time
– How to set standby time
– AC Charging devices
– USB Charging devices
– Car Socket Charging devices
– Uninterruptible Power Supply (UPS). UPS supports 10ms.

SURGEPAD
Anker SOLIX C300X Portable Power Station supports the SurgePad feature for up to 600W AC output.
SurgePad automatically turns on when the total output exceeds the rated output, allowing the power station to deliver rated power to high-wattage devices.

LIGHT
– Ambient Light. How to turn on the ambient light, and switch between brightness levels
– SOS Mode. How to turn on SOS mode.

LCD SCREEN GUIDE
– Description of icons and symbols
– How to turn on Bluetooth and Wi-Fi
– How to turn off Bluetooth and Wi-Fi
– How to reset Bluetooth and Wi-Fi

THE ANKER APP FOR SMART CONTROL
You can remotely control your power station using the Anker app.
– How to download the Anker app
– How to connect the device to a network
– How to update the firmware

FAQ

Q1: What is the max power output of the AC output ports?
The AC output ports can deliver a maximum of 300W rated power to connected devices. It can also support up to 600W with SurgePad.

Q2: Can Anker SOLIX C300X Portable Power Station power a CPAP machine?
Yes.

Q3: What should I do when using a solar charger to charge Anker SOLIX C300X Portable Power Station?
The solar input supports an 11-28V solar charger with an XT-60 connector. We recommend using Anker 100W/60W Solar Panel for the best compatibility.

Q4: Can the USB-C ports be used to charge Anker SOLIX C300X Portable Power Station (input only) or are they output only?
The USB-C1 and USB-C3 ports are output only. The USB-C2 supports output and input.

Q5: How do I reset Anker SOLIX C300X Portable Power Station?
If your power station isn’t working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn’twork, please contact Anker.

Q6: Why is the power station not working after it hasn’t been used for a long time?
If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This oftenleads to poor conductivity and a reduced battery lifespan that causes the battery not to work.

Q7: How should I store and maintain the power station?
When storing your portable power station, please make sure that you:
1) Turn off the main power button.
2) Store the power station in a dry and cool environment.
3) Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Don’t forget to charge it to 100% onceevery 3 months.

Q8: Does the power station have to be used upright?
Yes, the product needs to be used and stored upright.

SPECIFICATIONS
