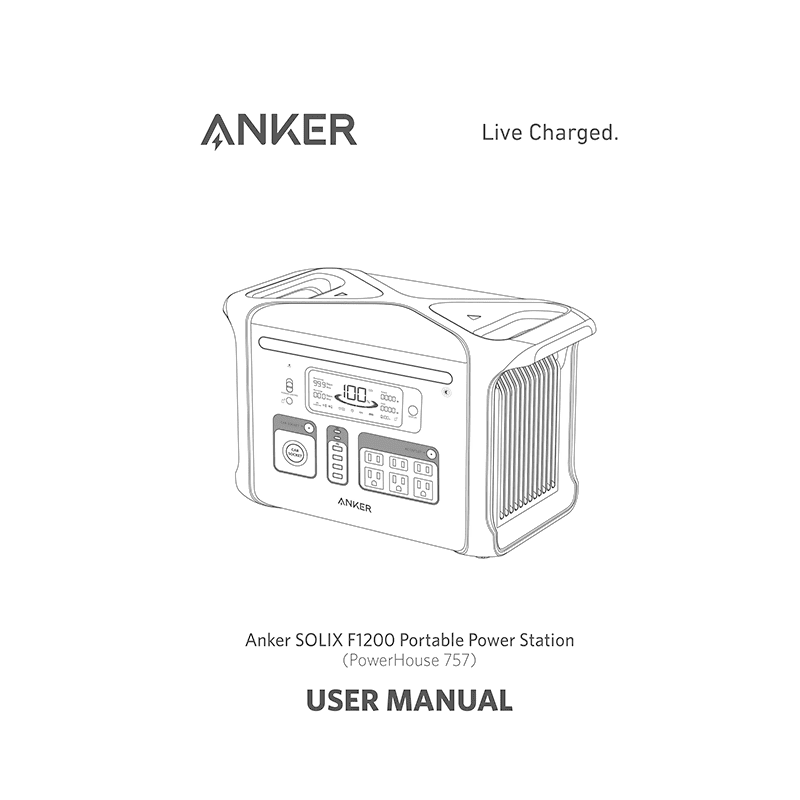

Anker SOLIX F1200 Portable Power Station User Manual

Description

This PDF user manual is for the Anker SOLIX F1200 Portable Power Station.

About the Item

Anker SOLIX F1200 Portable Power Station 1800W (2400W surge peak) 1229Wh LiFePO4 Model: A1770, A1771 (previously known as the PowerHouse 757)

FEATURES:
– LFP Batteries – 3,000 Cycles
– Industrial Grade Electronics
– Unibody Drop-Proof Design
– Smart Temperature Control
– Power 95% of Home Appliances
– Long-Lasting Design
– Use Every Day for 10 Years
– Unprecedented 5-Year Warranty
– HyperFlash AC Recharging, 80% in 1 Hour
– 600W Max Solar Recharge
– 13 Ports for All
– Uninterruptible Power Supply with Official Certification

TECH SPECS:
– Capacity: 1229Wh
– Battery Type: LiFePO4 (Lithium Iron Phosphate)
– Battery Lifecycle: 3,000 cycles to 80%+ capacity
– AC Continuous Output: 1800W Pure Sine Wave
– AC Surge Output: 2400W
– AC Outlets: x 6
– Solar Input Recharge: Max. 600W, 11-60V MPPT
– AC Input Recharge: Max. 1000W
– Cigarette Lighter Output: 120W (12V/10A)
– Car Input Recharge: 120W
– USB-A Output: 4 x 12W
– USB-C Output: 1 x 100W, 1 x 60W
– UPS Switch Time: less than 20 ms
– Discharging Temperature: -4 deg F – 104 deg F
– Charging Temperature: 32 deg F – 104 deg F
– Wireless Connection for App: Bluetooth
– Length x Width x Height: 18.2 x 11.3 x 9.3 in / 46.3 x 28.8 x 23.7 cm
– Net Weight: 42.1 lb / 19.1 kg

Read all the instructions before using the product.

(PDF) USER MANUAL (ENGLISH) / (FRANÇAIS) / (DEUTSCH) / (ESPAÑOL) / (ITALIANO) / (PORTUGUÊS) / (日本語) / (PУССКИЙ) / (TÜRK) / (简体中文) / (繁體中文) / (لعَرَبِية)

SUMMARY OF CONTENTS

WHAT’S IN THE BOX

OVERVIEW
– Product appearance
– Description of buttons, indicators, and input/output ports

RECHARGING YOUR POWER STATION
– AC recharging (1000W Max)
– Solar panel recharging (600W Max)
– Car recharging (120W Max)

POWERING YOUR DEVICES
– AC charging. How to turn it On / Off.
– USB charging
– Car socket charging

UNINTERRUPTIBLE POWER SUPPLY (UPS)
To use the UPS function, connect your Power Station to a wall outlet with the AC charging cable, then press the button and connect your devices via the AC output ports.

POWER SAVING MODE
Switching on the power saving mode prevents wasting power by automatically turning off the Power Station once all your devices are fully charged.
Switching off the power saving mode will enable stable charging over an extended period, such as for timelapse photography or for sleeping with a CPAP machine.

THE ANKER APP FOR SMART CONTROL
You can remotely control your power station using the Anker App.
– How to download the app
– How to connect the device to a network

LIGHT
– Ambient light. How to turn on the ambient light. How to switch between brightness levels.
– SOS mode. How to turn on the SOS mode.

LCD SCREEN GUIDE
– Description icons and symbols

TROUBLESHOOTING

AC recharging failure:
When AC recharging is unavailable, check to see if the overload protection switch is switched on. If so, press it down to reset, and then recharging can resume.

AC charging failure:
If AC charging is unavailable, it’s possible that the connected devices exceed 1800W. Try unplugging one or more of the connected devices to see if this resolves the issue.

Resetting your Power Station:
If your Power Station isn’t working correctly, press the reset button (located on the front of the product) for 1 second for a factory reset. If the Power Station still doesn’t work, please visit Anker.

FAQ
Q1: Why does the Power Station’s battery drain even when no devices are connected?
A1: When the AC and Car Socket control button is turned on, even if no devices are being charged, there will still be a certain amount of no-load power consumption. To avoid this, make sure the AC and Car Socket charging button is off or turn on the power saving mode when you’re not using the Power Station.

Q2: What’s the max power output of the AC output ports?
A2: The AC output ports can deliver a maximum of 1800W to connected devices.

Q3: Can I recharge the product while charging connected devices?
A3: Yes.

Q4: Can this product power a CPAP machine?
A4: Yes, but make sure to turn off the power saving mode fi rst.

Q5: What kind of solar charger can charge this product?
A5: Any 11-60V solar charger with an XT-60 female connector.

SPECIFICATIONS

Attention: Not permitted on aircraft.

IMPORTANT SAFETY INSTRUCTIONS
– When using this product, basic precautions should always be followed.
– Grounding Instructions.

STORAGE AND MAINTENANCE INSTRUCTIONS

DISCLAIMER

ANKER PORTABLE POWER STATION WARRANTY POLICY
– Exclusions and Limitations

CUSTOMER SERVICE
