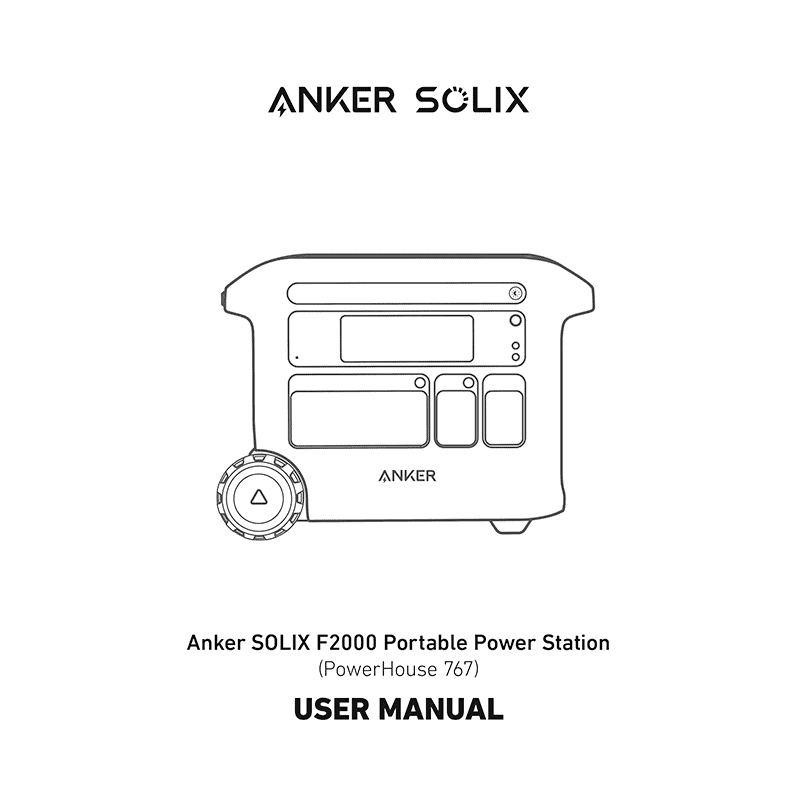

Anker SOLIX F2000 Portable Power Station User Manual

Description

This PDF user manual is for the Anker SOLIX F2000 Portable Power Station.

About the Item

Anker SOLIX F2000 Portable Power Station 2400W 2048Wh LiFePO4 Model: A1780 (previously known as the PowerHouse 767)

– Longest-lasting 10-year lifespan with Anker’s Proprietary InfiniPower Technology.
– Recharge the portable power station from 0 to 80% in just 1.4 hours.
– Power up to 12 devices at once with 2400W access 12 Ports.
– Power high-wattage devices up to 3600W.
– Smart App Energy Control for key portable power station information (Remote App via WiFi & Bluetooth).
– 5-Year full-device warranty for a worry-free experience.

TECH SPECS
– Capacity: 2048Wh
– Battery Type: LiFePO4 (Lithium Iron Phosphate)
– Battery Lifecycle: 3,000 cycles to 80%+ capacity
– AC Continuous Output: 2400W Pure Sine Wave
– AC Surge Output: 2800W
– AC Outlets: 4 x NEMA 5-20; 1 x NEMA TT-30
– Solar Input Recharge: Max. 1000W, 11-60V MPPT
– AC Input Recharge: Max. 1440W
– Cigarette Lighter Output: 120W (12V/10A) x 2
– Car Input Recharge: 12-24V, 10A
– USB-A Output: 2 x 12W
– USB-C Output: 3 x 100W
– Scalability: Yes, Up to Max. 4096Wh Capacity with Expansion Battery (Sold Seperately)
– UPS Switch Time: less than 20ms
– Discharging Temperature: -4 deg F- 104 deg F
– Charging Temperature: 32ºF – 104 deg F
– Wireless Connection for App: WiFi & Bluetooth
– Length x Width x Height: 20.7 x 15.5 x 9.8 in / 52.5 x 39.5 x 25 cm
– Net Weight: 67.2 lb / 30.5 kg

Read all the instructions before using the product.

(PDF) USER MANUAL (ENGLISH) / (FRANÇAIS)

SUMMARY OF CONTENTS

WHAT’S IN THE BOX

OVERVIEW
– Product Overview
– Product Appearance. Names of parts.
– Description of buttons, indicators, input/output ports

LCD SCREEN GUIDE
– Description of icons and symbols
– How to connect your devices through the app

RECHARGING YOUR POWER STATION
– AC recharging (1440W Max)
– Solar Panel Recharging (1000W Max).
– Car Recharging (120W).

POWERING YOUR DEVICES
– Power Saving Mode. Turning on the Power Saving mode prevents wasting energy as it automatically turns off the power station once all your devices are fully charged.
– AC Charging. How to turn on AC port?
– USB Charging
– Car Socket Charging

UNINTERRUPTIBLE POWER SUPPLY (UPS)
To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect your devices via the AC output ports.

CONNECTING WITH AN EXPANSION BATTERY
Your power station can be connected with an expansion battery to double the capacity to 4096Wh. Please refer to the user manual of Anker 760 Portable Power Station Expansion Battery (2048Wh) for detailed instructions.

ANKER APP FOR SMART CONTROL
You can remotely control your power station using the Anker app.
– How to download the Anker app
– How to connect the device to a network

LIGHT
– Ambient light. How to turn on the ambient light. How to switch between brightness levels.
– SOS Mode. How to turn on SOS Mode light.

FAQ

Q1: What is the max power output of the AC output ports?
A1: The AC output ports can deliver a maximum of 2400W to connected devices.

Q2: Can Anker SOLIX F2000 / 767 Portable Power Station power a CPAP machine?
A2: Yes, but make sure to turn off the Power Saving mode first.

Q3: What should I do when using a solar charger to charge Anker SOLIX F2000 / 767 Portable Power Station?
A3: The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-32V solar charger, the current supports 10A max. When you use a 32-60V solar charger, the current supports 20A max. We recommend using Anker 531 Solar Panel (200W) to get the best compatibility.

Q4: Can the USB-C ports be used to charge Anker SOLIX F2000 / 767 Portable Power Station (input only) or are they output only?
A4: The USB-C ports support output only.

Q5: What should I do when AC recharging fails?
A5: If AC recharging does not work, check to see if the overload protection switch is switched on. If it is on, press down to reset and then continue recharging.

Q6: How do I reset Anker SOLIX F2000 / 767 Portable Power Station?
A6: If your power station isn’t working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn’t work, please contact Anker.

Q7: Why is the power station not working after it hasn’t been used for a long time?
A7: If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This often leads to poor conductivity and a reduced battery lifespan that causes the battery not to work.

Q8: How should I store and maintain the power station?
A8: When storing your portable power station, please make sure that you:
1) Turn off all the outputs.
2) Store the power station in a dry and cool environment.
3) Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Don’t forget to charge it to 100% once every 3 months.

SPECIFICATIONS

Attention: Not permitted on aircraft.

IMPORTANT SAFETY INSTRUCTIONS
– Grounding Instructions

STORAGE AND MAINTENANCE INSTRUCTIONS
