Anker SOLIX F3800 Portable Power Station User Manual

Download PDF user manual for Anker SOLIX F3800 Portable Power Station 6000W 3840Wh LiFePO4 Model: A1790 (EN|FR|EL|DA|FI|IT|NL|JA|SL|SV|AR) V3 2024 zip

SKU: ANKERSOLIXF3800A1790UM Category: Brand:

Description

This PDF user manual is for the Anker SOLIX F3800 Portable Power Station.

About the Item

Anker SOLIX F3800 Portable Power Station 6000W 3840Wh LiFePO4 Model: A1790

The Most Accessible Whole-Home Backup Power.

– Designed with plug-and-play home backup capability.
– 6,000W, 120V/240V split-phase output in one unit for power-hungry appliances.
– 3.84kWh – 26.9kWh expandable capacity with up to 6 expansion batteries (Anker SOLIX BP3800).
– Scaling up to 12kW (53.8kWh) for extended power outages.
– 2,400W solar input, allowing for a charge of 0 to 80% in just 1.5 hours by sunlight.
– Equipped with NEMA 14-50 and L14-30 outlet to directly charge your EV and RV.
– Monitor energy intelligently via the app. Connect with Bluetooth and Wi-Fi.
– Long-Lasting LFP batteries.
– Industry-leading high-quality components ensuring 10 years of product life.

(PDF) USER MANUAL

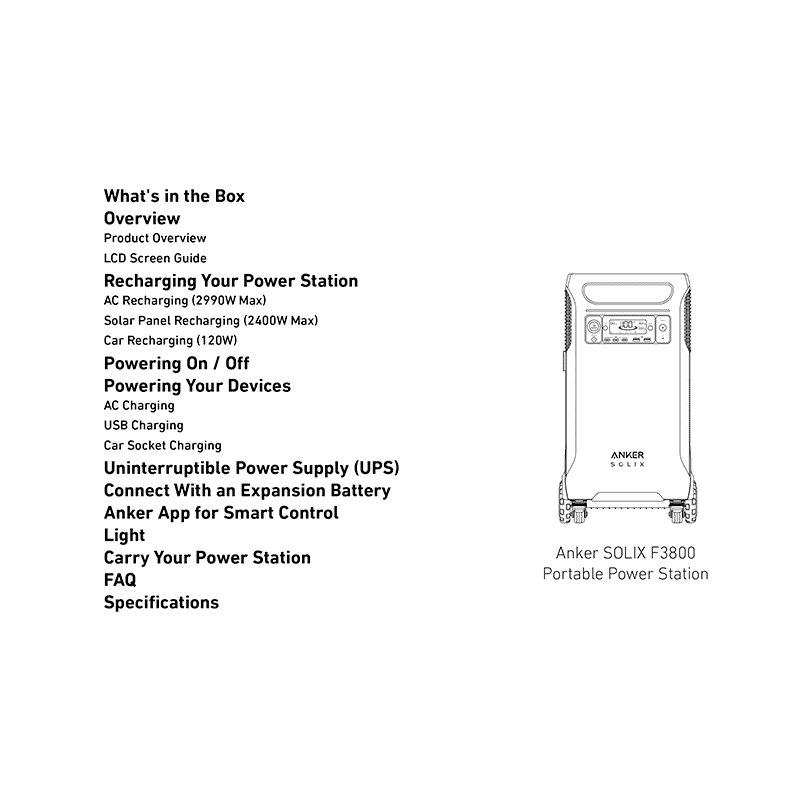

SUMMARY OF CONTENTS

WHAT’S IN THE BOX

OVERVIEW
– Product Overview
– Product Appearance. Names of parts.
– Description of buttons, indicators, input/output ports

LCD SCREEN GUIDE
– Description of icons and symbols

RECHARGING YOUR POWER STATION
– AC Recharging (1800W Max)
– Solar Panel Recharging (2400W Max). The solar input voltage range for Anker SOLIX F3800 is 11-60V.
– Car Recharging (120W). Anker SOLIX F3800 Portable Power Station only supports 12V car recharging.

POWERING ON / OFF
– How to turn your power station on or off.
– How to turn the screen on or off.
– How to set screen auto-off time
– How to set standby duration

POWERING YOUR DEVICES
– AC Charging. How to turn on AC port? How to turn on the EV mode?
– USB Charging
– Car Socket Charging

UNINTERRUPTIBLE POWER SUPPLY (UPS)
To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect your devices via the AC output ports.

CONNECTING WITH AN EXPANSION BATTERY
Your power station can be connected with expansion batteries to increase the capacity up to 26880Wh. Please refer to the user manual of Anker SOLIX BP3800 ExpansionBattery for detailed instructions.

CONNECT WITH ANKER SOLIX HOME POWER PANEL
Your power station can be connected with Anker SOLIX Home Power Panel to power your entire house. Please refer to the user manual of Anker SOLIX Home Power Panel fordetailed instructions.

ANKER APP FOR SMART CONTROL
You can remotely control your power station using the Anker app.
– How to download the Anker app
– How to connect the device to a network
– How to update the Firmware

LIGHT
– How to turn ON/OFF the light

HOW TO CARRY YOUR POWER STATION

FAQ

Q1: What is the maximum power output of the AC output ports?
A1: The AC output ports can deliver a maximum of 6000W to connected devices. Each group of NEMA 5-20R AC Output Ports can deliver 2400W (120V/20A) of power.

Q2: What should I do when the AC output port fails?
A2: If AC output does not work, check to see if the overcharge protection switch is switched on. If it is on, press down to reset and then continue working.

Q3: What should I do when using a solar charger to charge my power station?
A3: The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-15V solar charger, the current supports 10A max. When you use a 15-60V solar charger, the current supports 27Amax.

Q4: Can the USB-C ports charge the power station (input only), or are they output only?
A4: The USB-C ports support output only.

Q5: What should I do when AC recharging fails?
A5: If AC recharging does not work, check if the overload protection switch is turned on. If it is on, press down to reset and then continue recharging.

Q6: How do I reset my power station?
A6: If your power station is not working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn’t work, please contact Anker.

Q7: Why is the power station not working after it hasn’t been used for a long time?
A7: If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This often leads to poor conductivity and a reduced battery lifespanthat causes the battery not to work.

Q8: How should I store and maintain the power station?
A8: When storing your power station, please make sure that you:
1) Turn off the main power button.
2) Store the power station in a dry and cool environment.
3) Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Do not forget to charge it to 100% once every 3 months.

Q9: How do I charge my electric vehicle via the power station?
A9: Double-press the AC outlet button to activate EV mode charging. Make sure to set the charging rate of the EV charger to less than 25A to avoid overloading the output to your electric vehicle, such as a Tesla.

SPECIFICATIONS
