AU1210MA Aurora 12-sheet Micro-Cut Paper Shredder User Manual

Download PDF user manual for Aurora AU1210MA Professional Grade 12-sheet Micro-Cut Paper and CD/DVD/Credit Card Shredder (EN) 12 pages 2007 zip

SKU: AURORAAU1210MAUM Category: Brand:

Description

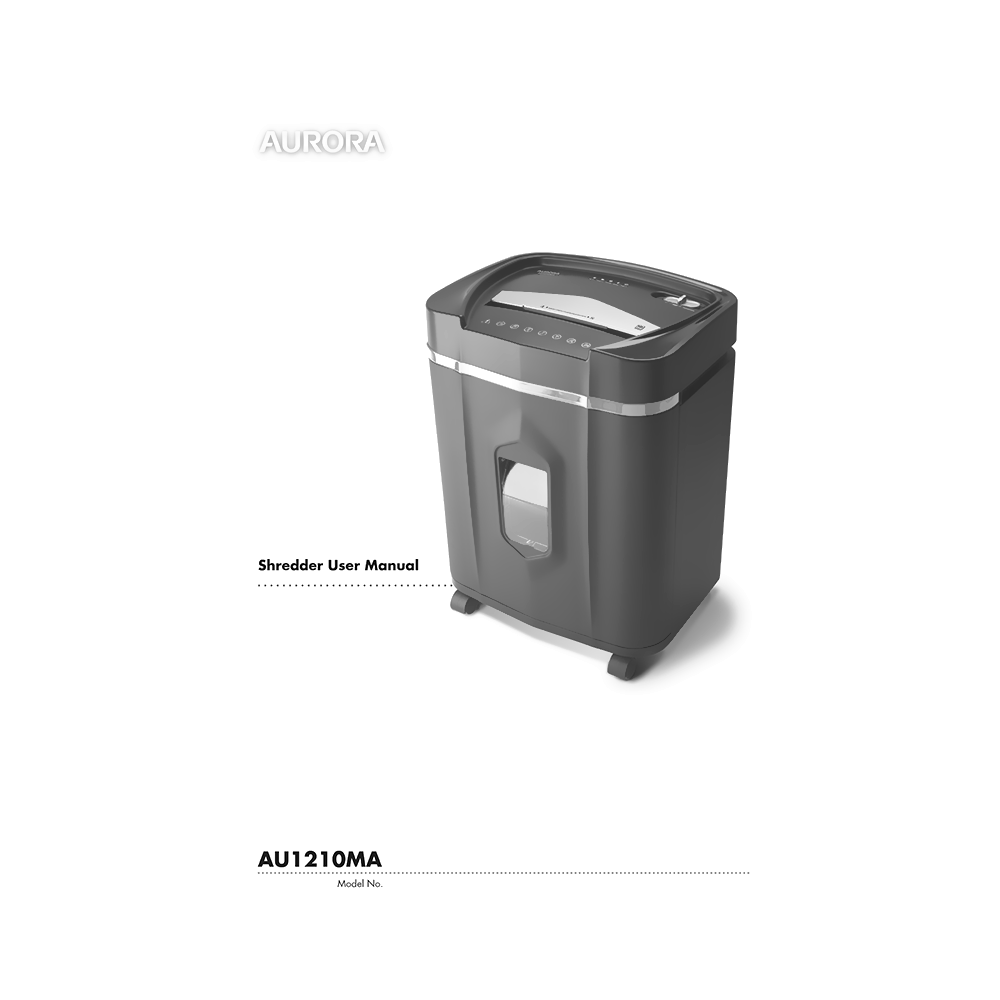

This PDF user manual is for the Aurora AU1210MA 12-sheet micro-cut shredder.

About the Item

Aurora AU1210MA Professional Grade 12-sheet Micro-Cut Paper and CD/DVD/Credit Card Shredder

The Aurora AU1210MA 12-sheet Micro-Cut paper / CD / DVD / credit card shredder with 5.0-gallon pullout basket is the perfect business and home office device to keep you safe from identity theft. The AU1210MA accepts up to 12 sheets of paper at a time and shreds them into small pieces (5/32 by 15/32 inches / 0.4 cm x 1.2 cm), security level P-4.
In addition to paper, the AU1210MA shreds CDs/DVDs/credit cards, keeping vital information from falling into the wrong hands.

Please read these operating instructions before using the unit.

(PDF) USER MANUAL (ENGLISH)

SUMMARY OF CONTENTS

– Warnings. Safety Instructions.
– Operating Instructions
– Installation
– Operation
– Control switch: AUTO / ON, OFF, Reverse, Forward (Jam Remover)
– Auto Reverse Technology
– CD/DVD destroyer
– LED Status indicator description: Bin full / Door open / Overload / Overheat / Power On.
– Maintenance. Oiling.
– Cleaning
– Service Center
– Warranty

– Troubleshooting:

If there is a problem with your shredder, check below for the symptoms and steps to resolve. If you continue to have problems, contact customer support. DO NOT ATTEMPT TO REPAIR BY OPENING THE SHREDDER HEAD. This will completely void the product warranty.

The shredder does not work at all.
1) Make sure the unit is plugged in and that the outlet is in good working order.
2) Overheating with extended use: In the event that the shredder has shred continuously beyond the maximum running time and overheated, the unit will automatically shut off. If this happens, switch the shredder Off for 50 minutes or longer before resuming normal operation.
3) Shredders with pull-out wastebaskets feature a safety power cut off upon bin removal. Shredder will not function unless the pull-out wastebasket is pushed in all the way and properly set back into place.
4) If using a plastic bag to line the wastebasket, please remove it. This may cause the shredder not to operate properly.
5) The activation sensor of the shredder is located near the center of the feed slot. Be sure to feed directly into the center area to activate the machine (especially applies to smaller pieces of paper or credit cards).

The shredder runs in “Rev (Reverse)” mode but not in “Auto (On)” mode.
While in “Auto” mode, the motor will not start running until paper is inserted into the feed slot. Set the unit to “Auto” and insert paper to shred. The sensor that activates the shredder in Auto mode is located directly in the center of the slot. If the paper you are inserting is narrow, it may not be activating the optical sensor. It is also possible that the feed slot has become blocked with paper. Insert an index card or any rigid sheet of cardstock (old greeting card or folded file folder), directly in the center of the feed slot, while applying force to help push the jammed paper through. This will usually clear any paper blockage.

How to clear a paper jam in the shredder.
1) Switch the shredder over into Reverse (REV) mode. While in Reverse, the shredder will back up and loosen the jammed paper. If required, you may need to tug and remove several sheets to effectively clear the machine. When jammed paper is loosened or removed, switch back to the Auto-On mode to continue shredding. Repeat steps if needed.
2) With stubborn situations where the reverse function does not help, you may loosen the jammed paper with shredder oil (cooking oil is acceptable, nothing aerosol). Start by drizzling oil into the feed slot where the paper is jammed. Let it soak for about 30 minutes to completely saturate. Return the shredder back to Auto-On mode. If required, an index card or a rigid sheet of cardstock (old greeting card or folded file folder) can be fed into the shredder to help push the jammed paper through.

The shredder is constantly running while in “Auto (On)” mode.
1) It is possible that the activation sensor, which starts the shredder, has become blocked with paper. Insert an index card or any rigid sheet of cardstock (old greeting card or folded file folder), directly in the center of the feed slot, while applying force to help push the jammed paper through. This will usually clear any paper blocking the activation sensor and feed entry.
2) The activation sensor is being triggered by dust, debris, or oil. A cotton swab may be used to clean the sensor. DO NOT USE CANNED AIR. The activation sensor of the shredder is located around the center of the feed entry.

Why Download the Manual?

This user manual provides all the information from Aurora about the AU1210MA 12-sheet micro-cut shredder, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to Download the Manual?

Download it by clicking the button below
