BC848BW Siemens NPN Transistor Data Sheet

Download PDF datasheet for Siemens BC848BW SOT23 NPN Silicon AF Transistor / SMD code: 1Ks (EN) 8 pages 1996 zip

SKU: SIEMENSBC848BWDS1996 Category: Brand:

Description

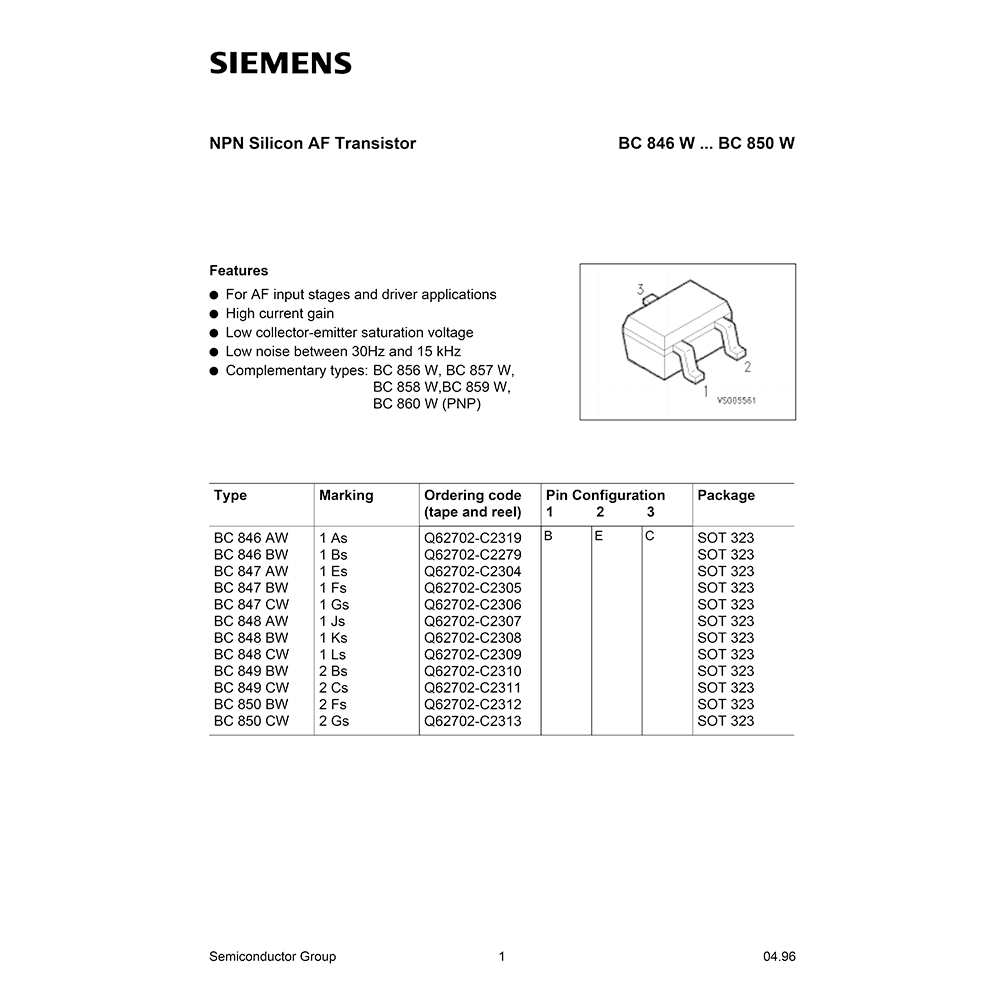

This PDF datasheet is for the Siemens BC848BW Transistor.

Siemens BC848BW SOT23 NPN Silicon AF Transistor Data ( SMD code: 1Ks )

Features:
– For AF input stages and driver applications
– High current gain
– Low collector-emitter saturation voltage
– Low noise between 30Hz and 15 kHz

(PDF) DATASHEET (ENGLISH)

CONTENTS

– BC848BW 1Ks pinout
– Maximum Ratings
– Maximum Collector-emitter voltage
– Maximum Collector-base voltage
– Maximum Collector-emitter voltage
– Maximum Emitter-base voltage
– Maximum Collector current
– Maximum Collector peak current
– Maximum Total power dissipation
– Maximum Junction temperature
– Characteristic: DC Characteristics. AC Characteristics.

Figures:
– Total power dissipation
– Collector-base capacitance
– Emitter-base capacitance
– Permissible pulse load
– Transition frequency
– Collector cutoff current
– Collector-emitter saturation voltage
– DC current gain
– Base-emitter saturation voltage
– h parameter normalized
– Noise figure

Why download the Datasheet?

This datasheet provides all the information from Siemens about the BC848BW Transistor, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Datasheet?

Download it by clicking the button below
