BD911 ST Silicon NPN Power Transistor Data Sheet
Download PDF datasheet for ST BD911 15A 100V Complementary Silicon NPN Power Transistor (EN) zip
Description
This PDF datasheet is for the ST BD911 transistor.
About the Item
ST BD911 15A 100V Complementary Silicon NPN Power Transistor

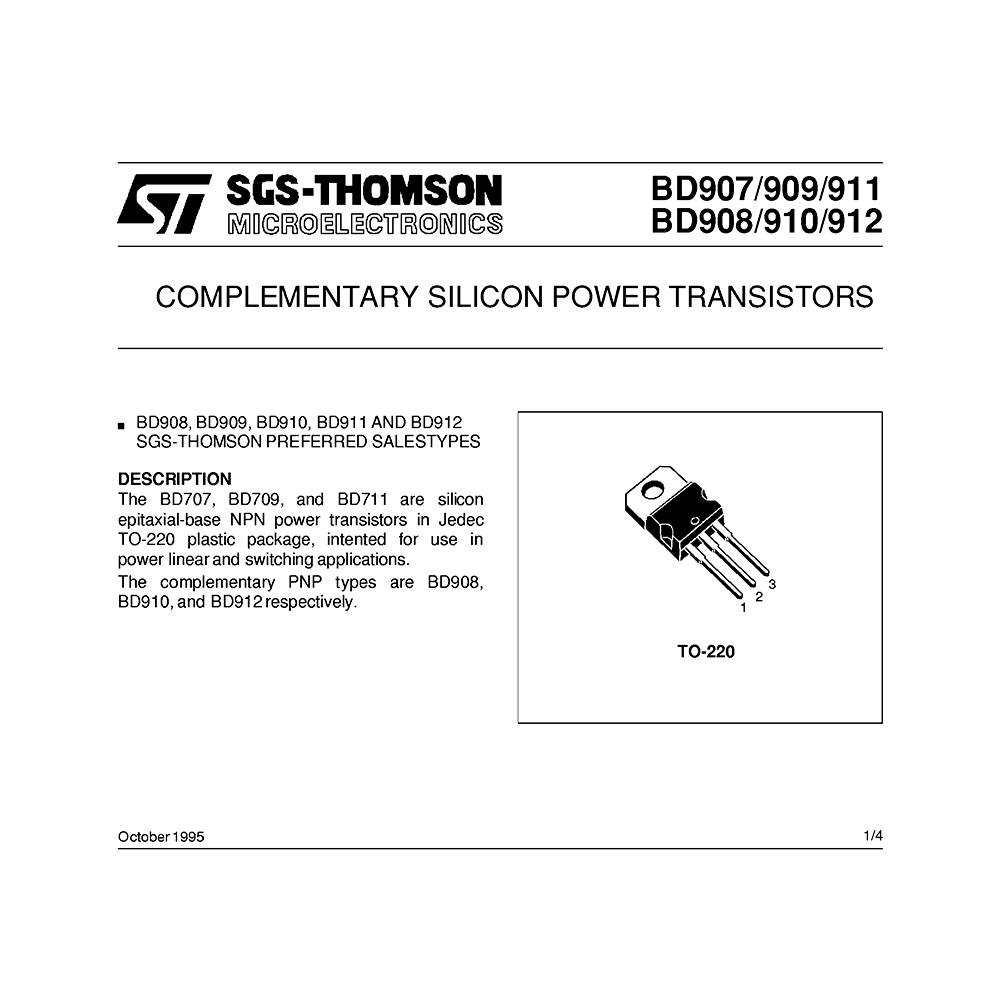

The BD911 is a silicon epitaxial-base NPN power transistor in Jedec TO-220 plastic package, intended for use in power linear and switching applications.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– Description
– Package
– Internal Schematic Diagram
– Pinout
– Absolute Maximum Ratings
– Maximum Collector-Base Voltage
– Maximum Collector-Emitter Voltage
– Maximum Emitter-Base Voltage
– Maximum Collector Current
– Maximum Base Current
– Maximum Total Dissipation
– Maximum Operating Junction Temperature
– Thermal Data
– Electrical Characteristics
– TO-220 Mechanical Data
