Black & Decker BM3B 1.5-Amp 6/12V Battery Maintainer / Charger Instruction Manual
Download PDF user manual for Baccus Global / Black+Decker Automatic 1.5-Amp 6 Volt / 12 Volt Battery Maintainer / Charger Model: BM3B (EN|FR|ES) 32 pages 2011 zip
Description
This PDF instruction manual is for the Black & Decker BM3B battery maintainer / charger.
About the Item
Black & Decker 1.5-Amp 6 Volt / 12 Volt Battery Maintainer / Charger Model: BM3B
– Charges and maintains 12-volt and 6-volt AGM, GEL, and WET batteries
– Easy connection to vehicle battery using battery clips and O-ring terminals
– Stops charging automatically when battery is fully charged or topped off, switching to float mode monitoring
– Built-in circuit protection guards against overcharging, reverse polarity, or short-circuiting; ETL certified for performance and safety
– Mounting bracket built-in to charger for convenient placement
– AC low voltage compensation ensures maximum performance when used with an extension cord
Use for battery maintenance, charging RVs, speciality vehicles, antique and classic cars, motorcycles, lawn mowers, tractors, ATVs, snowmobiles. personal watercraft and more.
Please read and observe all safety warnings and cautions and this entire user’s instruction manual, before installing or using this device. The instruction manual should then be retained for quick reference whenever the unit is used.
Document(s) available

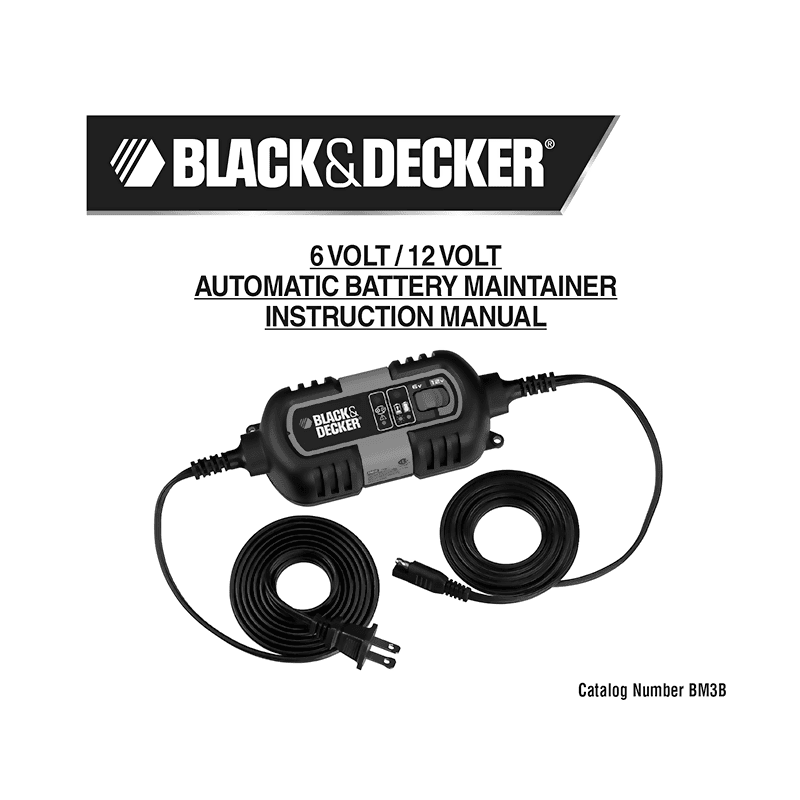

(PDF) INSTRUCTION MANUAL / MODE D’EMPLOI / MANUAL DE INSTRUCCIONES
Available languages
ENGLISH (EN) | FRANÇAIS (FR) | ESPAÑOL (ES)
SUMMARY OF CONTENTS
SAFETY GUIDELINES / DEFINITIONS
IMPORTANT SAFETY INSTRUCTIONS
– General safety warnings and instructions for all battery chargers
– Recommended Minimum AWG Size for Extension Cords for Battery Chargers
PREPARING TO CHARGE
CHARGER LOCATION
CONNECTION PRECAUTIONS
OPERATING INSTRUCTIONS
– Follow these steps when the battery is installed in a vehicle
– Follow these steps when the battery has been removed from a vehicle
INTRODUCTION
FEATURES
– The unit has two voltage settings (6v, 12v) controlled by one switch
– Maintains battery charge in stored vehicles
– Includes three connector sets:
a) DC accessory plug
b) Battery clamps
c) Battery ring terminals
– Two LED indicators:
a) Red Fault LED
b) Green Charge Status LED
– Fully automatic; powers on when needed, powers off when battery is fully-charged or topped-off
– Built-in circuit protection guards against overcharging or short circuit
– Automatically checks for correct polarity (requires a minimum of 2.0 volts battery voltage)
– Convenient, color-coded ring terminals/clamps for easy, correct installation
– Charges with high frequency, pure DC current
BATTERY MAINTAINER AND COMPONENTS
– Product view
LED INDICATORS
Red (Fault): bad connection, battery not able to accept charge, reverse polarity hook-up
Green (Charge Status): Blinking – connection correct and charging; Solid – fully charged
6 VOLT / 12 VOLT SWITCH
The unit has two voltage rate settings (6v, 12v) controlled by one switch. Set the switch to either 6v or 12v depending upon the battery you are charging.
SETTING UP THE UNIT
Ensure that all installation and operating instructions and safety precautions are understood and carefully followed by anyone installing or using the maintener.
– Mounting Instructions
– How to mount unit
OPERATING INSTRUCTIONS
– Connecting the Maintainer and Maintaining the Battery with the Battery Clamps
– Connecting the Maintainer and Maintaining the Battery with the Terminal Rings
– Charging With the Terminal Rings
– Connecting the Maintainer and Maintaining the Battery with the DC Accessory Plug
TROUBLESHOOTING
– Unit Not Charging
CARE AND MAINTENANCE
– Fuse Replacement (DC Accessory Adapter)
ACCESSORIES
SERVICE INFORMATION
WARRANTY
SPECIFICATIONS
– Input: 120V AC ~ 60 Hz 0.3A
– Output: 6.3V/12.6V DC 1.0A
– DC Accessory Plug Fuse: 5A DC
