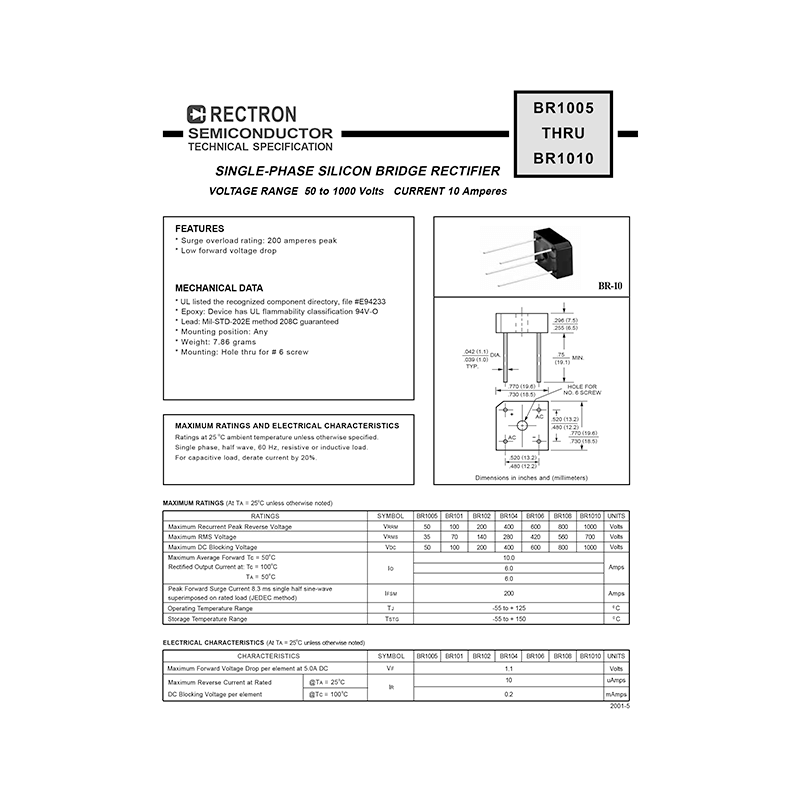

BR101 Rectron 100V 10A Bridge Rectifier Data Sheet
Download PDF datasheet for Rectron Semiconductor BR101 100V/10A Single-Phase Silicon Bridge Rectifier (EN) 2 pages 2001 zip
Description
This PDF datasheet is for the Rectron BR101 Bridge Rectifier.
About the Item
Rectron Semiconductor BR101 100 Volt 10 Amp Single-Phase Silicon Bridge Rectifier
FEATURES
* Surge overload rating: 200 amperes peak
* Low forward voltage drop
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O
* Lead: Mil-STD-202E method 208C guaranteed
* Mounting position: Any
* Weight: 7.86 grams
* Mounting: Hole thru for # 6 screw
BR101 PINOUT
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 deg C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
RATING AND CHARACTERISTIC CURVES
– Fig.1 – Maximum Non-Repetitive Forward Surge Current
– Fig.2 – Typical Forward Current Derating Curve
– Fig.3 – Typical Instantaneous Forward Characteristics
– Fig.4 – Typical Reverse Characteristics
