BR610 Rectron 1000V 6A Bridge Rectifier Data Sheet

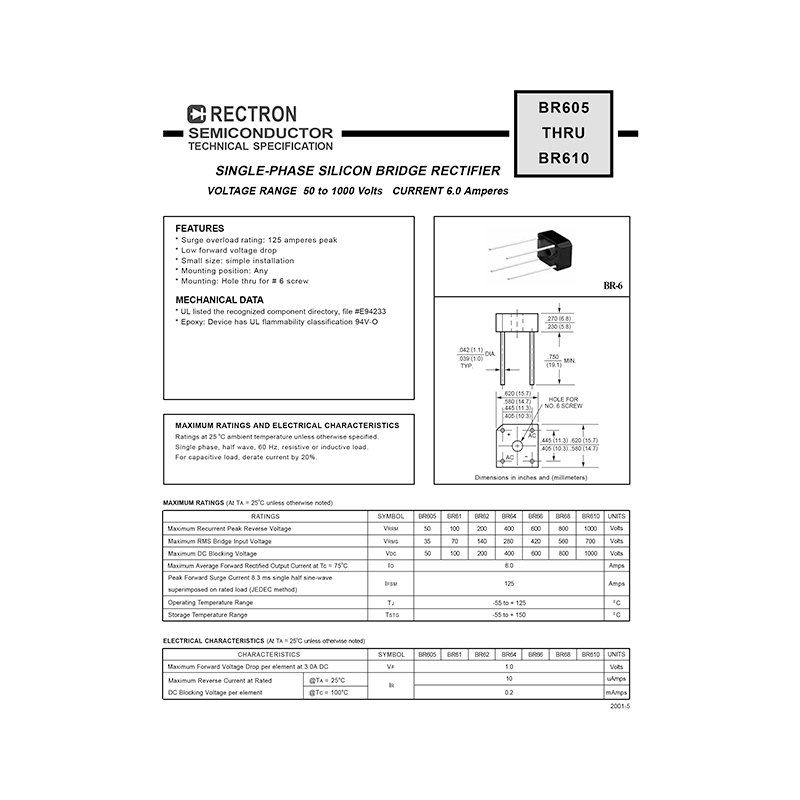

Download PDF datasheet for Rectron Semiconductor BR610 1000V/6A Single-Phase Silicon Bridge Rectifier (EN) 2 pages 2001 zip

SKU: BR610RECTRONSEMICONDUCTORDS2001 Category: Brand:

Description

This PDF datasheet is for the Rectron BR610 Bridge Rectifier.

Rectron Semiconductor BR610 1000 Volt 6 Amp Single-Phase Silicon Bridge Rectifier

FEATURES
* Surge overload rating: 125 amperes peak
* Low forward voltage drop
* Small size: simple installation
* Mounting position: Any
* Mounting: Hole thru for # 6 screw

(PDF) DATASHEET (ENGLISH)

CONTENTS

MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O

BR610 PINOUT

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 deg C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

RATING AND CHARACTERISTIC CURVES
Fig.1 – Maximum Non-Repetitive Forward Surge Current
Fig.2 – Typical Forward Current Derating Curve
Fig.3 – Typical Instantaneous Forward Characteristics
Fig.4 – Typical Reverse Characteristics
