BR62 Rectron 200V 6A Bridge Rectifier Data Sheet
Download PDF datasheet for Rectron Semiconductor BR62 200V/6A Single-Phase Silicon Bridge Rectifier (EN) 2 pages 2001 zip
Description
This PDF datasheet is for the Rectron BR62 Bridge Rectifier.
About the Item
Rectron Semiconductor BR62 200 Volt 6 Amp Single-Phase Silicon Bridge Rectifier
FEATURES
* Surge overload rating: 125 amperes peak
* Low forward voltage drop
* Small size: simple installation
* Mounting position: Any
* Mounting: Hole thru for # 6 screw

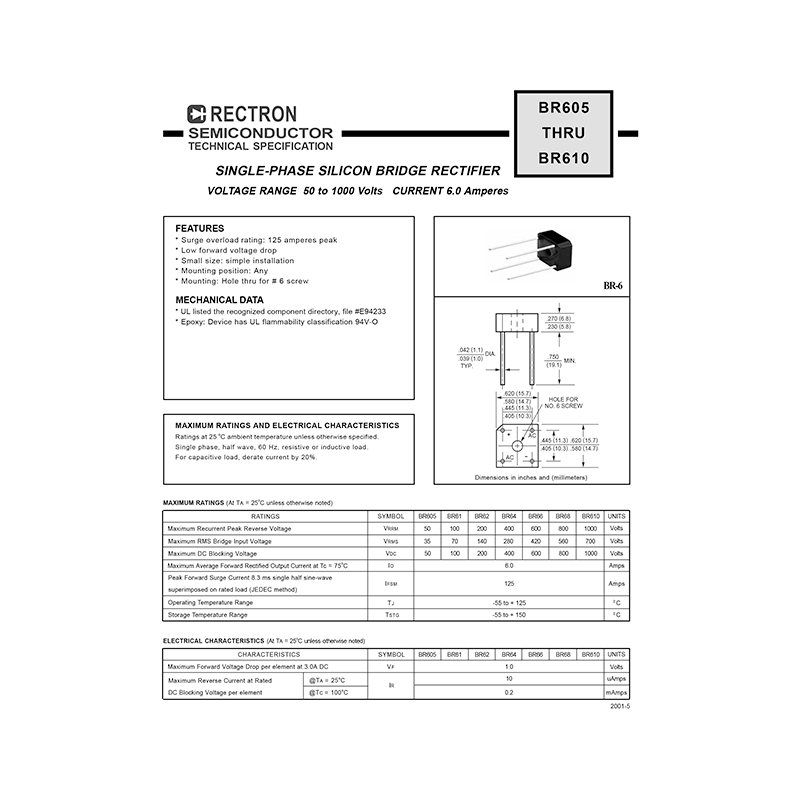

(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O
BR62 PINOUT
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 deg C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
RATING AND CHARACTERISTIC CURVES
Fig.1 – Maximum Non-Repetitive Forward Surge Current
Fig.2 – Typical Forward Current Derating Curve
Fig.3 – Typical Instantaneous Forward Characteristics
Fig.4 – Typical Reverse Characteristics
