BU208A SGS-Thomson Horizontal TVC Deflection Data Sheet
Download PDF datasheet for SGS-Thomson Microelectronics BU208A Horizontal TVC Deflection (EN) 4 pages zip
Description
This PDF datasheet is for the SGS-Thomson BU208A Horizontal TVC Deflection.
About the Item
SGS-Thomson BU208A Horizontal TVC Deflection
FEATURES and APPLICATIONS:
* High voltage
* High power
* High switching speed
* Good stability
* Consumer
* Power supply
* TV color horizontal deflection

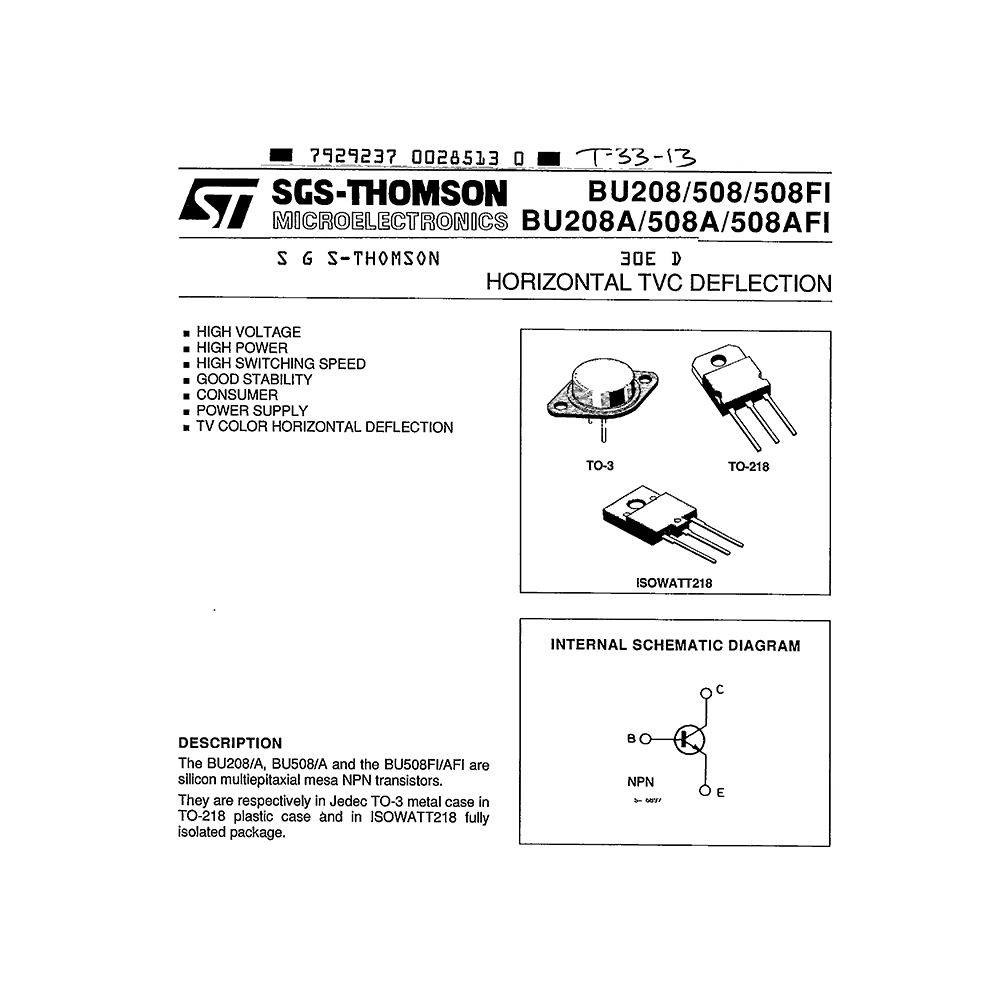

The BU208/A, BU508/A and the BU508FI/AFI are silicon multiepitaxial mesa NPN transistors.
They are respectively in Jedec TO-3 metal case in TO-218 plastic case and in ISOWATT218 fully isolated package.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
– Collector-emitter Voltage
– Emitter-base Voltage
– Collector current
– Collector peak current
– Total dissipation
– Operating junctions temperature
– Storage temperature
ISOWATT218 PACKAGE CHARACTERISTICS AND APPLICATION
THERMAL IMPEDANCE OF ISOWATT218 PACKAGE
THERMAL DATA
ELECTRICAL CHARACTERISTICS
