BZX55-C11 General Semiconductor 11V Zener Diode Data Sheet
Download PDF datasheet for General Semiconductor BZX55-C11 11 Volt 5% tolerance DO-35 Glass case Zener Diode (EN) 6 pages 1998 zip
Description
This PDF datasheet is for the General BZX55-C11 zener diode.
About the Item

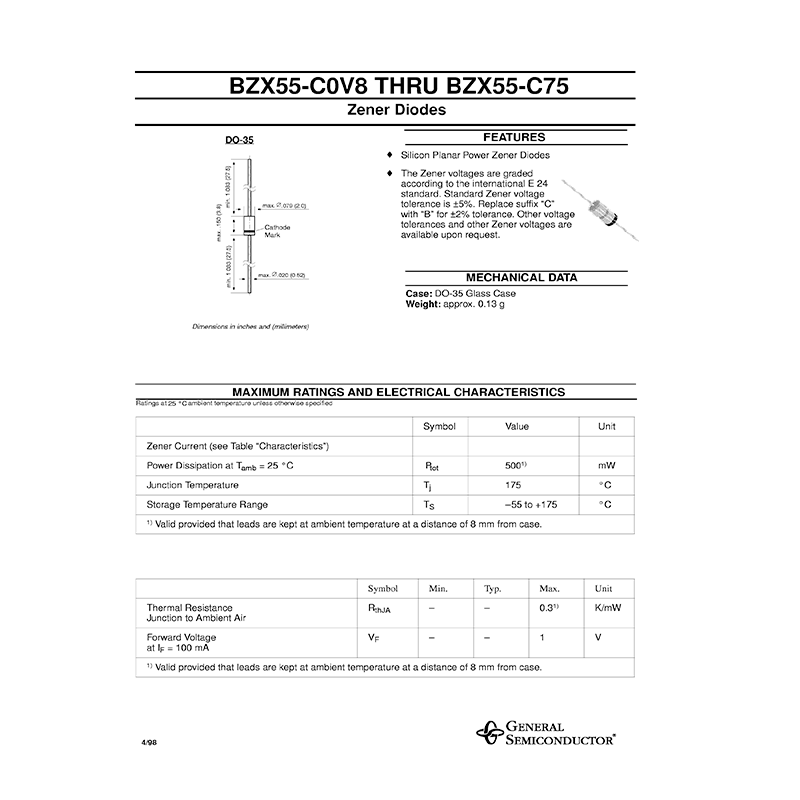

General Semiconductor BZX55-C11 11-Volt 5% tolerance DO-35 Glass case Zener Diode
Silicon Planar Power Zener Diode. The Zener voltages are graded according to the international E 24 standard.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
MECHANICAL DATA:
Case: DO-35 Glass Case
Weight: approx. 0.13g
Cathode Mark (pinout)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
– Zener current
– Power dissipation
– Junction temperature
– Storage temperature
– Thermal resistance
– Forward voltage
ELECTRICAL CHARACTERISTICS
– Zener voltage range
– Dynamic resistance
– Temp.coefficient of Zener voltage
– Reverse leakage current
– Admissible Zener current
RATINGS AND CHARACTERISTIC CURVES
– Breakdown characteristics
– Admissible power dissipation versus ambient temperature
– Capacitance versus Zener voltage
– Pulse thermal resistance versus pulse duration
– Dynamic resistance versus Zener current
– Thermal differential resistance versus Zener voltage
– Thermal resistance versus lead length
– Temperature dependence of Zenere voltage versus Zener voltage
– Change of Zener voltage from turn-on up to the point of thermal equilibrium versus Zener voltage
– Change of Zener voltage versus junction temperature
