BZX55-C3V9 General Semiconductor 3.9V Zener Diode Data Sheet
Download PDF datasheet for General Semiconductor BZX55-C3V9 3.9 Volt 5% tolerance DO-35 Glass case Zener Diode (EN) 6 pages 1998 zip
Description
This PDF datasheet is for the General BZX55-C3V9 zener diode.
About the Item
General Semiconductor BZX55-C3V9 3.9-Volt 5% tolerance DO-35 Glass case Zener Diode
Silicon Planar Power Zener Diode. The Zener voltages are graded according to the international E 24 standard.

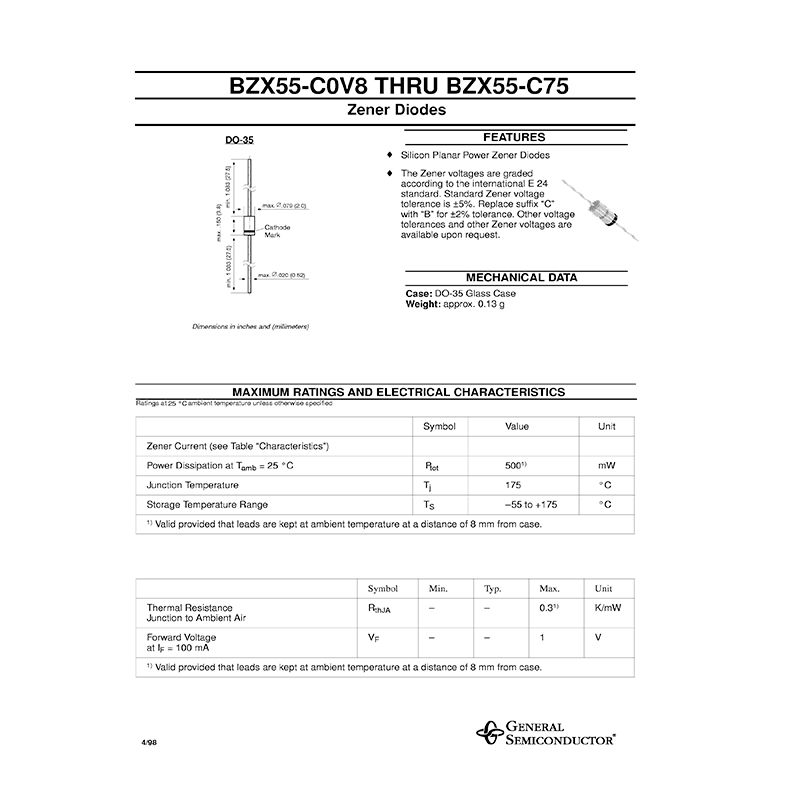

(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
MECHANICAL DATA:
Case: DO-35 Glass Case
Weight: approx. 0.13g
Cathode Mark (pinout)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
– Zener current
– Power dissipation
– Junction temperature
– Storage temperature
– Thermal resistance
– Forward voltage
ELECTRICAL CHARACTERISTICS
– Zener voltage range
– Dynamic resistance
– Temp.coefficient of Zener voltage
– Reverse leakage current
– Admissible Zener current
RATINGS AND CHARACTERISTIC CURVES
– Breakdown characteristics
– Admissible power dissipation versus ambient temperature
– Capacitance versus Zener voltage
– Pulse thermal resistance versus pulse duration
– Dynamic resistance versus Zener current
– Thermal differential resistance versus Zener voltage
– Thermal resistance versus lead length
– Temperature dependence of Zenere voltage versus Zener voltage
– Change of Zener voltage from turn-on up to the point of thermal equilibrium versus Zener voltage
– Change of Zener voltage versus junction temperature
Why download the Datasheet?
This datasheet provides all the information from General Semiconductor about the BZX55-C3V9 Zener Diode, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to download the Datasheet?
Download it by clicking the button below
