CAT CBC40EW 40-Amp Battery Charger (with Engine Start) Instruction Manual

Download PDF user manual for Caterpillar CAT CBC40EW 40-Amp Automatic Wheel Battery Charger with 110-Amp Engine Start (EN|ES) 36 pages RD120214 2015 zip

SKU: CATCBC40EWUM Category: Brand:

Description

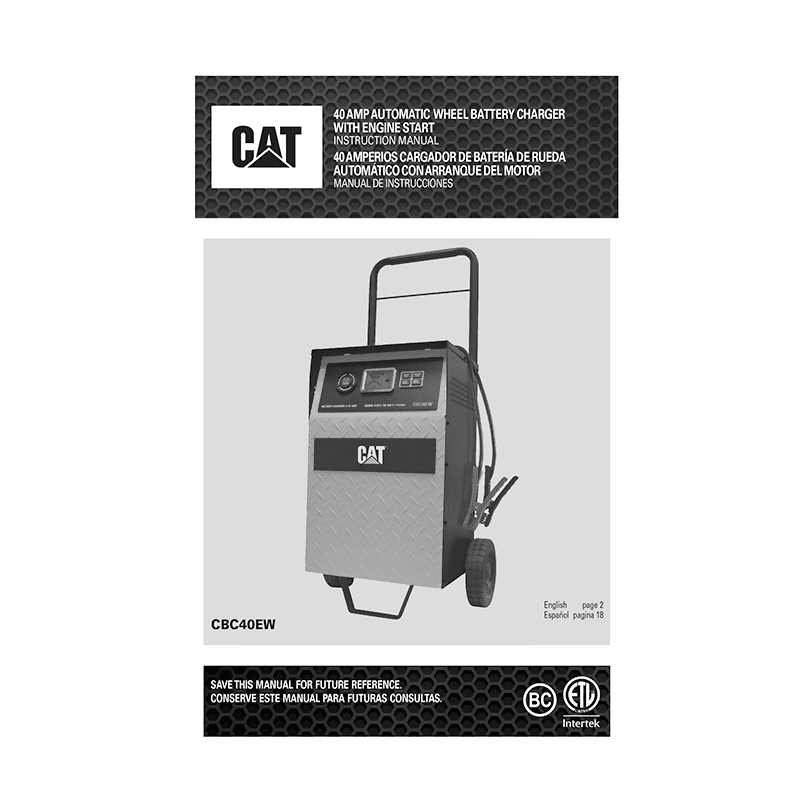

This PDF instruction manual is for the CAT CBC40EW Battery Charger (with Engine Start).

About the Item

CAT CBC40EW 40-Amp Automatic Wheel Battery Charger with 110-Amp Engine Start

This battery charger has a high charge rate of up to 40 amps, and 792 watts of engine starting power.

Read all instructions before operating product. Save this manual for future reference.

DOCUMENT(S) AVAILABLE

(PDF) INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES

Available Languages

ENGLISH (EN) | ESPAÑOL (ES)

SUMMARY OF CONTENTS

SAFETY GUIDELINES / DEFINITIONS
– Risk of unsafe operation.

IMPORTANT SAFETY INSTRUCTIONS
– General safety warnings and instructions for all battery chargers
– Specific safety instructions for power cords
– Ground fault circuit interrupter (GFCI)
– Extension Cords
– Recommended Minimum AWG Size for Extension Cords for Battery Chargers
– Power Cord Safety
– Specific safety instructions for battery chargers
– Use of accessories and attachments

PREPARING TO CHARGE
– Charger Location
– Connection Precautions
– Follow these steps when the battery is installed in a vehicle
– Follow these steps when the battery has been removed from a vehicle
– First aid: Skin, Eyes, LCD liquid crystal display.

INTRODUCTION

ASSEMBLING THE UNIT
– Wheel Set Assembly
– Base Stand and Wheel Set Installation
– Handle Installation

CONTROLS AND FUNCTIONS
– Features
– LCD Display Detail

OPERATING INSTRUCTIONS
– Charging the Battery
– Checking the Battery Voltage
– Using the Alternator Check Function
– Reconditioning the Battery
– Using the Engine Start Function

TROUBLESHOOTING
Unit Not Charging
– Make sure all connections are secure.
– Check that the charger is properly connected to a live 120 volt AC outlet.
– If the battery to be charged has fallen below 2 volts, the battery cannot be recharged with these chargers.

CARE AND MAINTENANCE

ACCESSORIES

SERVICE INFORMATION

WARRANTY

SPECIFICATIONS
Input: 120VAC, 60Hz, 740W
Output: 12VDC, 40A, 110A engine start (5 minutes OFF, 5 seconds ON)
