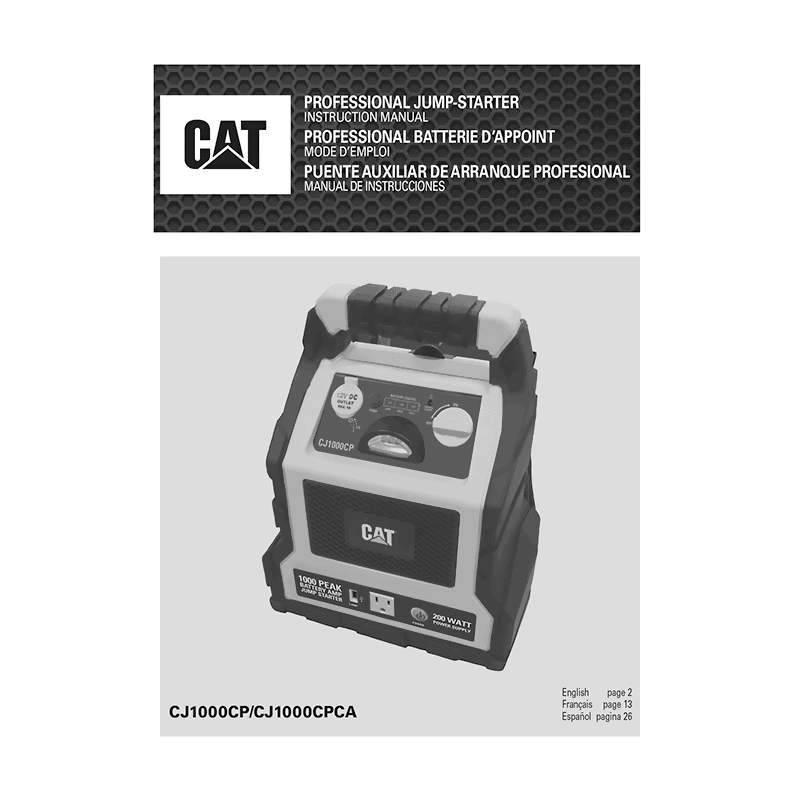

CAT CJ1000CP / CJ1000CPCA Professional Jump-Starter Instruction Manual

Download PDF user manual for Caterpillar CAT CJ1000CP / CJ1000CPCA 3-in-1 500A (1000A peak) Professional Jump-Starter with 200W Power Inverter and 120 PSI Air Compressor (EN|FR|ES) 40 pages RD030315 2015 zip

SKU: CATCJ1000CPCAUM Category: Brand:

Description

This PDF instruction manual is for the CAT CJ1000CP / CJ1000CPCA jump-starter with power inverter and air compressor.

About the Item

Caterpillar / CAT CJ1000CP / CJ1000CPCA Professional Jump-Starter 500A (1000A peak) with 200W Power Inverter and 120 PSI Air Compressor

Read this Instruction Manual and follow the instructions carefully before using this unit. Save this manual for future reference.

DOCUMENT(S) AVAILABLE

(PDF) INSTRUCTION MANUAL / MANUEL D’UTILISATION / MANUAL DE INSTRUCCIONES

Available Languages

ENGLISH (EN) | FRANÇAIS (FR) | ESPAÑOL (ES)

SUMMARY OF CONTENTS

– General Safety Warnings and Instructions
– Safety Guidelines / Definitions
– Important Safety Instructions
– Specific Safety Instructions for Charging This Unit
– Minimum Gage for Cord Sets
– Specific Safety Instructions for Compressors
– Specific Safety Instructions for Jump Starters
– Specific Safety Instructions for Inverters

INTRODUCTION
– Controls and Functions

CHARGING/RECHARGING
– Charging/Recharging Using the 120 Volt AC Charger and a Standard Household Extension Cord (not included)

JUMP-STARTER

120 VOLT AC PORTABLE POWER SUPPLY
This unit has a built-in Power Inverter that provides up to 200 watts of AC power. This inverter is an electronic device that converts low voltage DC (direct current) electricity from a battery to 120 volts AC (alternating current) household power. It converts power in two stages. The first stage is a DC-to-DC conversion process that raises the low voltage DC at the inverter input to 145 volts DC. The second stage is a MOSFET bridge stage that converts the high voltage DC into 120 volts, 60 Hz AC.
– Power Inverter Output Waveform
– Rated Versus Actual Current Draw of Equipment
– Protective Features
– Using the 120 Volt AC Outlet

USB POWER PORT

12 VOLT DC PORTABLE POWER SUPPLY
This portable power source is for use with all 12 volt DC accessories equipped with a male accessory outlet plug and are rated up to 5 amps.

PORTABLE COMPRESSOR
The built-in 12 volt DC compressor is the ultimate compressor for all vehicle tires, trailer tires and recreational inflatables.
– Inflating Tires or Products With Valve Stems
– Inflating Other Inflatables Without Valve Stems

LED AREA LIGHT

TROUBLESHOOTING
– Unit will not charge
– Unit fails to jump-start
– 120 volt AC outlet will not power appliance
– 12 volt DC portable power supply will not power appliance
– USB Power Port will not power appliance
– Portable Compressor will not inflate
– LED Area Light does not come on

CARE AND MAINTENANCE
– Battery replacement/disposal

ACCESSORIES

SERVICE INFORMATION

WARRANTY

SPECIFICATIONS
– Boost Ampere: 12Vdc, 500A instantaneous
– Battery Type: Maintenance-free, sealed lead acid, 12 volt DC, 19Ah
– AC input: 120Vac, 60Hz, 12W
– 120V AC outlet: 120Vac, 60Hz, 200W continuous
– USB Port: 5Vdc, 2A
– DC Accessory Outlet: 12Vdc, 5A
– Compressor Maximum Pressure: 120 PSI
– LED Area Light: 3 white LEDs
