Choetech BS004 Portable Power Station 500W/484Wh User Manual

Description

This PDF user manual is for the Choetech 500W portable power station model BS004.

About the Item

Choetech BS004 Portable Power Station 500W (1000W peak) 484Wh Li-ion

Choetech’s 500W Portable Power Station is designed to provide off-grid power to your electronic equipment. Whether you are climbing a mountain, taking an RV road trip, or camping outdoors, this power station can provide reliable power to your electronic devices. Power up your devices during power outages and emergency situations.
This 500W Portable Power Station is equipped with AC input/output, DC input/output, a QC3.0 USB-A port, four 5V/2.4A USB-A ports, one 100W USB-C PD port, and a cigarette lighter port.
The environmentally friendly power station features pure sine-wave technology that safely powers electronic devices by providing clean, stable electricity that is just as dependable and safe as the power you get at home. Gas-free and can be easily charged by a solar panel, providing and storing free and green energy. Runs quiet without any exhaust fumes.
This power station can be recharged in two ways: the battery can be fully recharged with a Solar Panel (Not included); and DC fast recharging.
Slim design with a comfortable to carry handle, take this backup battery everywhere you go: whether you are in the great outdoors or within the confines of your home, we’ve created a way for you to never run out of power and stay connected.
Full side body aluminum alloy shell and ABS material strengthens the edges, convenient handle and its anti-slip mat at the bottom prevents the unit from damage. The power station has built-in protection against overcurrent, overvoltage, and overheating, ensuring the safety of your devices.
Equipped with a comfortable handle and designed to be the ideal size for traveling: it will fit perfectly in your backpack or the backseat on long road trips.
This massive 500W generator can be charged by a solar panel and produces exceptionally low emissions making it environmentally friendly. Also, no gasoline required and no toxic fumes, this ECO-friendly power generator is completely safe to use inside your house, tent, and car.

3 Ways of Recharging:
– Recharge with a solar panel
– Recharge by DC
– Recharge with a Car Cigarette Lighter Port

Features built-in protection against overcurrent, short-circuit, overcharging, overvoltage and overheating.

SPECIFICATIONS
– Shell Material: ABS+PC
– Battery Type: Ternary Lithium 18650
– Battery Brand: Yiwei Lithium Energy
– Output Power (W): 500
– Peak Power (W): 1000
– Energy Storage Capacity (Wh): 484
– Energy Storage mAh/Voltage: 134400mAh/3.6V
– Energy Storage Ampere/Voltage: 22.4Ah/21.6V
– Product Size (mm): 269*178*205
– Product Net Weight (kg): 5.5
Output:
– AC Output: US/JP: 100V-120V 50Hz/60Hz; EU/UK: 230V 50Hz; CH: 220V 50Hz; KR: 220V 60Hz; AUS: 240V 50Hz
– AC Output Interface: 110V*2, 220V*1
– PD Output: 100W*1
– QC Output: 18W*1
– USB-A Output: 5V/2.4A*4
– Cigarette Lighter Output: 12V/10V
– DC Output: 12V/10V
Input:
– AC Input (W): 120W
– AC Charging Time (H): Around 5.5 hours
– Solar Input (W) Anderson: 150W
– Solar Charging Time (H): Around 4 hours
– Car Cigarette Lighter Input (A): 5A (60W)
– Car Cigarette Lighter Charging Time (H): Around 12 hours
Temperature:
– Charging Temperature: 0-40C
– Operating Temperature: -10-40C
– Protection Mechanism: Overcurrent, overvoltage, overload, overcharge, over discharge, short circuit
– LED: Steady On, SOS, Blinking
– Screen: LCD Display
– Accessories: Adapter

Read all the instructions carefully before using the product.

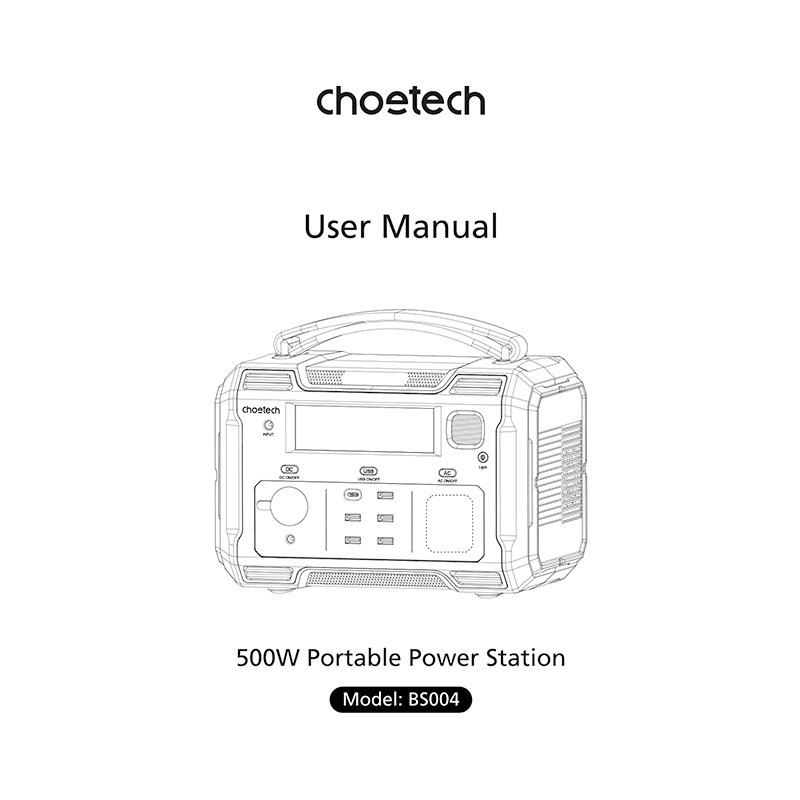

(PDF) USER MANUAL

SUMMARY OF CONTENTS

WHAT’S IN THE BOX

PRODUCT DIAGRAM
– Product view
– Names of parts
– Buttons
– Input ports
– Output ports

LCD SCREEN
– Description of icons and symbols

SPECIFICATIONS

OPERATION INSTRUCTION
– How to turn on the system and check battery status?
– What to do during first use or long term non-use situation
– How to recharge the device?
– DC port charging
– How to use AC function?
– How to know if output is overloaded or short-circuit?
– How to use cigarette port and DC output port?
– How to use USB and TYPE-C?
– How to use the lights?
– How to turn it off?

PROBLEMS AND RESOLUTION
– External device charging triggers a buzzer alarm
– If buzzer sound appears during use, the temperature icon will flash
– Unable to charge

IMPORTANT SAFETY INSTRUCTIONS
– Cautions
– Warnings

– Product is not permitted on aircraft
– How to maintain battery health
– This product is not waterproof

FCC COMPLIANCE STATEMENT

WARRANTY

Why download the Manual?

This user manual provides all the information from Choetech / Shenzhen DAK Technology about the BS004 500W power station, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Manual?

Download it by clicking the button below

Download file
