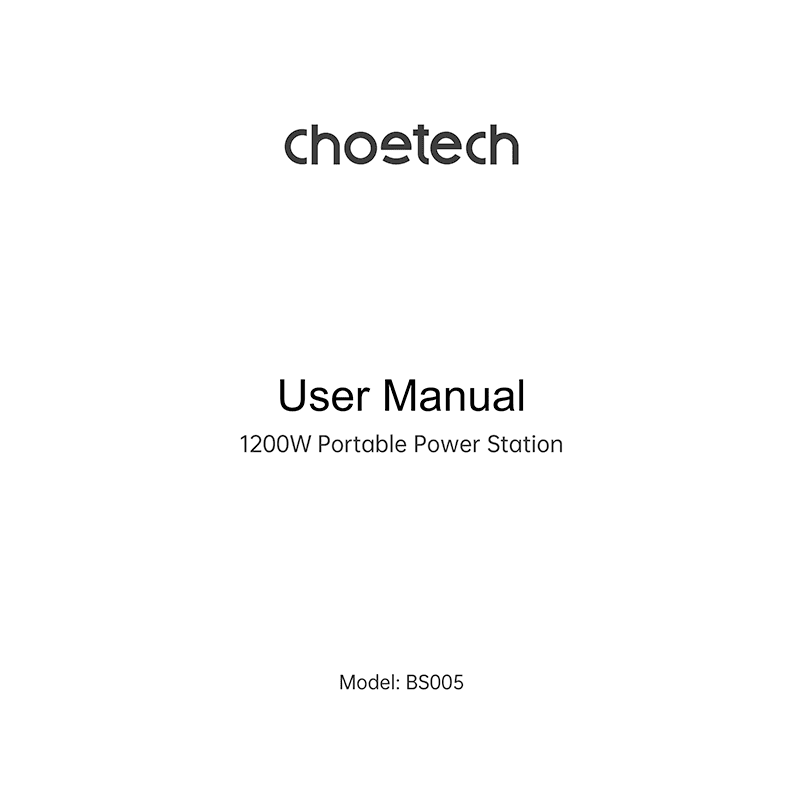

Choetech BS005 Portable Power Station 1200W/960Wh User Manual
Download PDF user manual for Shenzhen DAK Technology / Choetech BS005 Bidirectional Charging Portable Power Station 1200W (2400W peak) 960Wh LiFePO4 (PL) 8 pages v1 zip
Description
This PDF user manual is for the Choetech 1200W portable power station model BS005.
About the Item
Choetech BS005 Bidirectional Charging Portable Power Station 1200W (2400W peak) 960Wh LiFePO4
Whether you are climbing a mountain, taking an RV road trip, or camping outdoors, Choetech’s 1,200Wh Power Station will power up your electronic devices. Equipped with AC input/output, DC input/output, three 20W PD ports, one 100W
PD Port, two 5V/2.4A USB-A ports, an LCD display and three lighting modes – this power station will come in handy outdoors or during power outages.
This power station can be recharged in three ways: the battery can be fully recharged with a Solar Panel (Not included); with an AC Input and with a Car Charger. You can take this power station as an emergency/backup power supply for your electronic devices and appliances.
Three Ways of Recharging:
– Recharge with a Solar Panel
– Recharge with an AC Input
– Recharge with a Car Charger
Our bidirectional charging power station has enormous energy storage and can be used as a backup battery, can help you restart your car battery or power your CPAP machine.
Choeteh’s 1,200Wh Bidirectional Charging Power Station is equipped with built-in LED light. Choose between three lighting modes: Flashlight, SOS and Strobe in case of power outages, emergency situations or during camping trips.
SPECIFICATIONS
– Shell Material: ABS+PC
– Battery Type: Lithium Iron Phosphate 40135
– Battery Brand: Yiwei Lithium Energy
– Output Power (W): 1200
– Peak Power: 2400
– Energy Storage Capacity (Wh): 960
– Energy Storage mAh/Voltage: 300000mAh/3.2V
– Energy Storage Ampere/Voltage: 20Ah/48V
– Product Size (mm): 386*225*317
– Product Net Weight (kg): 12.5
Output:
– AC Output: US/JP: 100V-120V 50Hz/60Hz; EU/UK: 230V 50Hz; CH: 220V 50Hz; KR: 220V 60Hz; AUS: 240V 50Hz
– AC Output Interface: 110V*4, 220V*2
– PD Output: 100W*1, 20W*3
– USB-A Output: 5V/2.4A*2
– Cigarette Lighter Output: 12V/10V
– DC Output: 12V/3A
– Bypass Conversion: Support
– UPS Function: 10ms
– Car Battery Charging: Support
Input:
– AC Input (W): 700W
– AC Charging Time (H): Around 2 hours
– Solar Input (W) Anderson: 500W Max
– Solar Charging Time (H): Around 3 hours
– Car Cigarette Lighter Input (A): 10A (120W)
– Car Cigarette Lighter Charging Time (H): Around 8 hours
– AC+Solar Charging Time (H): Around 1 hour
Temperature:
– Charging Temperature: 0-55C
– Operating Temperature: -10-60C
– Protection Mechanism: Overcurrent, overvoltage, overload, overcharge, over discharge, short circuit.
– LED: Steady On, SOS, Blinking
– Screen: LCD Display
– Accessories: AC cable
Read all the instructions carefully before using the product.
(PDF) USER MANUAL (POLSKI)
SUMMARY OF CONTENTS
WHAT’S IN THE BOX
PRODUCT VIEW
INTRODUCTION TO LCD SCREEN
SPECIFICATIONS
UPS MODE
SOLAR PANEL CONNECTION
CAR CIGARETTE PORT CHARGING
TROUBLESHOOTING
IMPORTANT SAFETY INSTRUCTIONS
– Cautions
– Warnings
– Product is not permitted on aircraft
– How to maintain battery health
– This product is not waterproof
FCC COMPLIANCE STATEMENT
WARRANTY
