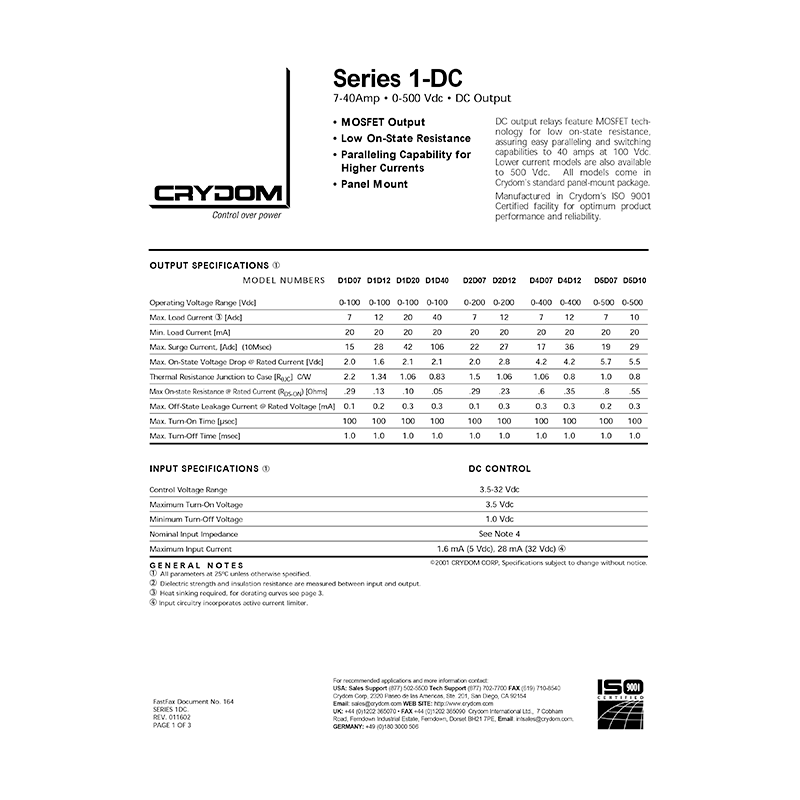

D5D07 Crydom 500Vdc 7A Output Relay Data Sheet
Download PDF datasheet for Crydom D5D07 500Vdc 7A Output Relay (SSR) (EN) 3 pages REV.011602 2001 zip
Description
This PDF datasheet is for the Crydom D5D07 Output Relay (SSR).
About the Item
Crydom D5D07 500Vdc 7A Output Relay (SSR)
* MOSFET Output
* Low On-State Resistance
* Paralleling Capability for Higher Currents
* Panel Mount
DC output relays feature MOSFET technology for low on-state resistance, assuring easy paralleling and switching capabilities to 40 amps at 100 Vdc. Lower current models are also available to 500 Vdc. All models come in Crydom’s standard panel-mount package. Manufactured in Crydom’s ISO 9001 Certified facility for optimum product performance and reliability.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
OUTPUT SPECIFICATIONS
– Operating Voltage Range
– Max. Load Current
– Min. Load Current
– Max. Surge Current
– Max. On-State Voltage Drop at Rated Current
– Thermal Resistance Junction to Case
– Max On-state Resistance at Rated Current
– Max. Off-State Leakage Current at Rated Voltage
– Max. Turn-On Time
– Max. Turn-Off Time
INPUT SPECIFICATIONS
– Control Voltage Range
– Maximum Turn-On Voltage
– Minimum Turn-Off Voltage
– Nominal Input Impedance
– Maximum Input Current
D5D07 PINOUT
DC CONTROL
GENERAL NOTES
GENERAL SPECIFICATIONS
– Dielectric Strength 60Hz
– Insulation Resistance
– Max. Capacitance Input/Output
– Ambient Operating Temperature Range
– Ambient Storage Temperature Range
MECHANICAL SPECIFICATIONS
– Weight
– Encapsulation
– Terminals
TRANSIENT PROTECTION
All loads are inductive, even ones that are not so labeled. An inductive load will produce harmful transient voltages when it is turned off. The more perfect the switch, the larger the transient voltages; the MOSFET output is so nearly an ideal switch that the transient voltages produced by seemingly “non-inductive” loads can cause damage if not suppressed. Diodes should be fast recovery type with PIV rated greater than supply voltage.
Crydom Heat Sinks offer excellent thermal management and are perfectly matched to the load current ratings of Crydom panel mount relays. Request Crydom’s Heat Sink specification sheet for all the details.
Fig. MAXIMUM SURGE vs. DURATION
Fig. CURRENT DERATING CURVES
