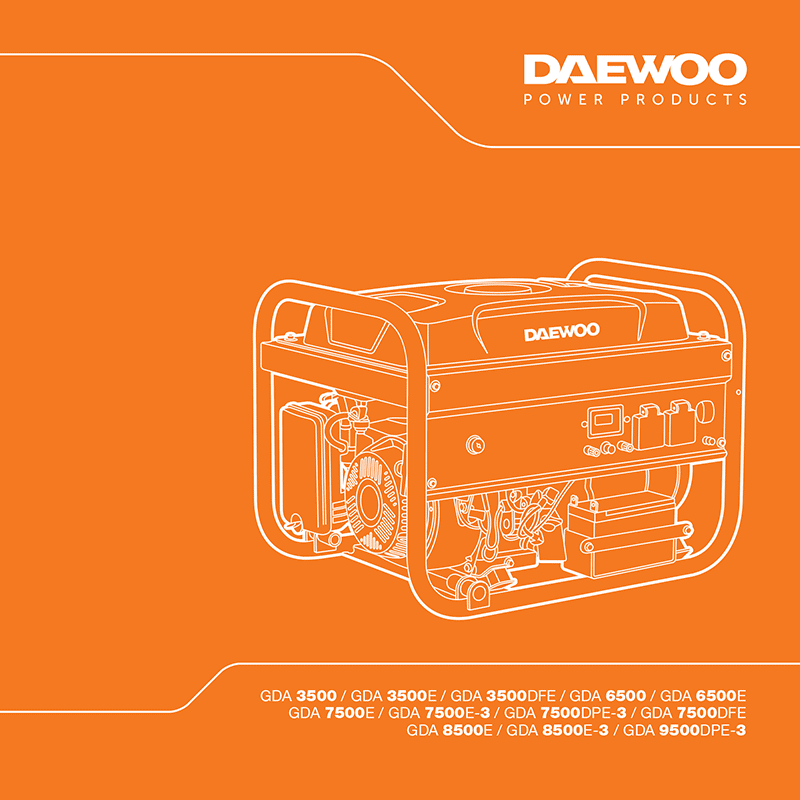

Daewoo GDA 3500E Petrol Generator Instruction Manual

Description

This PDF user manual is for the Daewoo GDA 3500E petrol generator.

About the Item

Daewoo GDA 3500E Petrol Generator 2.8kW (3.2kW max) / 230V (with electric starter)

The DAEWOO generator is a device for generating electric current. Generators are great for powering small houses, construction sites, as well as solving problems for small businesses and tourism.

Reliable DAEWOO engine: Specially developed for a series of Master Line generators. It has an engine life of 1,500 hours. Quality control on all production phases is guaranteed by a unique engine serial number.
Increased fuel tank capacity up to 18 liters: Upgraded Daewoo 3500-series generators have an extended 18-litres fuel tank (previously only 15 liters) resulting in a non-stop runtime for up to 15 hours, which ranks among the best in terms of our competitors. The fuel tank is covered by a special corrosion and chemical aggression resistant matt paint.
Electric starter: A built-in electric starter and battery make it easier for operators to operate the generator by turning on of the ignition key without pulling the starter. The key makes starting easy and comfortable for users.
Multifunctional display: The Multifunctional display shows all key operation parameters in real-time such as: voltage, frequency, and the number of hours of operation which can be sustained before the next generator maintenance period falls due.

FEATURES
– The Daewoo engine for professionals
– Increased fuel tank capacity up to 18 liters
– Electric start
– The voltmeter
– The AVR (Automatic Voltage Regulator)
– The over-current smart protection
– Low-oil level shutdown
– Low noise level
– The sturdy frame
– The transportation kit (option)
– The 12V built-in charger

TECHNICAL DATA
– Maximum power: 3.2 kW
– Rated power: 2.8 kW
– Voltage: 230 V
– Voltage regulator: AVR
– Power Factor: 1 cosine phi
– Sockets: 2x16A
– ATS Connector: no
– Display: 3 in 1
– Run time 50% load: 15 h
– Sound power level: 95 dB(A)
– Displacement: 208 cu.cm.
– Engine power: 7.5 HP
– Engine model: series 210
– Engine type: 4-stroke
– Engine manufacturer: DAEWOO
– Fuel type: Petrol
– Fuel tank volume: 18 l
– Oil volume: 0,6 l
– Starter battery: yes
– Starting system: manual-electro
– Transportation kit: DAWK 20
– Dimensions (L/W/H): 605x430x425 mm
– Weight: 44.7 kg

Please note that before using the equipment, you must carefully read the manual.
If you encounter problems, please use the helpful information at the end of the manual.

(PDF) INSTRUCTION MANUAL (ENGLISH) (DEUTSCH) (FRANÇAIS) (POLSKI) (УКРАЇНСЬКА) (LATVIEŠU VALODA) (LIETUVIŲ KALBA) (EESTI KEEL) (SUOMI) (ČEŠTINA)

SUMMARY OF CONTENTS

PRODUCT DESCRIPTION

DELIVERY SET

GENERAL VIEW AND COMPONENTS
– Control Panel

SPECIFICATIONS

SAFETY INFORMATION

DESCRIPTION OF SYMBOLS

PREPARATION FOR WORK
– Operating Conditions
– Checking Oil Level
– Checking Fuel Level
– Preparing The Air Filter

OPERATION OF THE GENERATOR
– Starting The Engine
– Engine Stop
– Generator Emergency Switch
– Emergency Switch Of 16A Socket
– Using The Generator In ATS Mode
– ATS Operation In Auto Mode
– FEATURES OF GAS GENERATOR OPERATION
– STARTING AND STOPPING THE ENGINE

MAINTENANCE
– Changing / Filling Oil In The Engine
– Recommended Oils
– Recommended Oils, Depending On Ambient Temperature
– Air Filter Maintenance
– Spark Plug Maintenance
– Generator Storage
– Transportation
– Recommended Maintenance Schedule

TROUBLESHOOTING
– Engine doesn’t start
– Difficulty starting or reduced engine power
– The engine overheats
– Engine starts but no output voltage
– Generator runs but does not support connected electrical devices

DEVICE DISPOSAL

DECLARATION OF CONFORMITY

WARRANTY

Why download the Manual?

This user manual provides all the information from Daewoo Power Products about the GDA 3500E petrol generator, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
