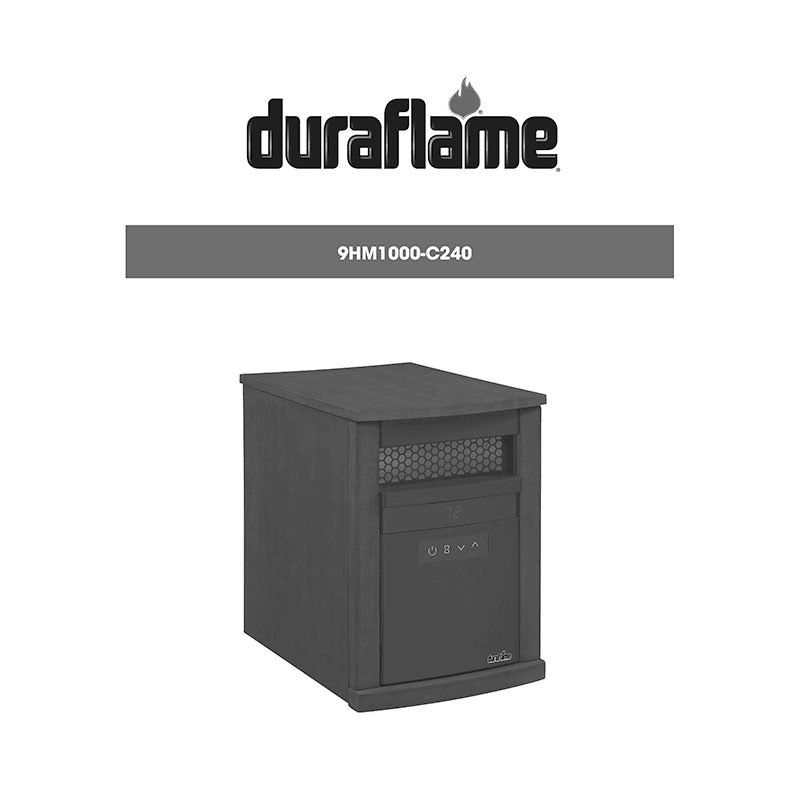

Duraflame 9HM1000-C240 Infrared Quartz Heater Instruction Manual

Description

This PDF instruction manual is for the Duraflame 9HM1000-C240 Infrared Quartz Heater.

About the Item

Duraflame 9HM1000-C240 Infrared Quartz Heater

Insert Model: 9QI010ARA
Insert Model: 9QI020ARA

Heat up large areas in your home with this infrared quartz heater. Infrared quartz helps to maintain the natural humidity within the air, resulting in moist, comfortable heat without drying out the room’s air. This heater provides supplemental zone heating for up to 1,000 square feet. The rich, Rose Cherry wood veneer will add a warm, traditional touch to your home. The digital thermostat and timer functions allow you to create your ideal and most comfortable environment. Operate the heater using the control panel on the unit or with the included remote.

– 5,200 BTU heater provides supplemental zone heating for up to 1,000 square feet
– The infrared quartz heat helps to maintain the natural humidity within the air, resulting in comfortable heat without drying out the room’s air
– Digital thermostat allows you to decide the temperature of your room
– Solid wood and wood veneers, Rose Cherry finish
– Safe for use around children and pets
– Overheat protection, heater will instantly shut off to prevent overheating
– Portable unit comes fully assembled and ready to heat, requires no venting or gas lines

Read all instructions before using this appliance. Save these instructions.

DOCUMENT(S) AVAILABLE

(PDF) INSTRUCTION MANUAL / MANUEL D’INSTRUCTION / MANUAL DE INSTRUCCIONES

Available Languages

ENGLISH (EN) | FRANÇAIS (FR) | ESPAÑOL (ES)

SUMMARY OF CONTENTS

GETTING STARTED
– Product warranty registration

PRODUCT SPECIFICATIONS
– VOLTAGE: 120VAC, 60 Hz
– AMPS: 12.5 Amps
– WATTS: 1500 Watts

HOW TO CONTACT CUSTOMER SERVICE

IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, injury to persons and hyperthermia

OPERATION INSTRUCTIONS
– Control Panel
– The heater can be operated by either the remote control or the control panel.

FUNCTION

POWER:
– The POWER button supplies power to all the functions of the heater.
– Pressing the POWER button again will put the heater in standby mode.
– Pressing and holding the POWER button on the control panel for 3 seconds will switch between deg F and deg C.

TIMER:
– Pressing the TIMER button will turn on or off timer settings.
– There are 10 timer settings and OFF that can be selected. 00 (OFF), 30min, 1Hour, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H.
– Double-digit minute settings, such as 30, look like: 30
– A single-digit with an “H” indicates hours and looks like: 2H
– If the timer function was previously set, the first press of the timer button won’t change the previous setting.
– Pressing the timer button will activate the timer display.
– When the timer is active, the display will count down from 60 seconds before shutting off the heater.

SETTING TEMPERATURE:
– When pressing the UP and DOWN buttons the display will enter temperature setting mode.
– When in temperature setting mode pressing the UP and DOWN buttons will change the thermostat by 1 deg F (1 deg C.)
– The temperature setting range is between 50 deg F – 97 deg F (10 deg C – 36 deg C).
– After 10 seconds without control input, the display will exit temperature setting mode and show the current ambient temperature.

TROUBLESHOOTING

Display shows E1
– The thermostat sensor is broken or disconnected.

Display shows E2
– The thermostat sensor short circuited.

Heater does not blow warm air.
– Cool down cycle.

Heater does not blow warm air.
– Not reaching set temperature.

Heater does not blow warm air.
– Not reaching set temperature.

Temperature display not matching room temperature read by other thermostats.
– Calibration.

The heater is taking a long time to reach desired room temperature.
– Improper use of unit.
– Location
– Use of surge protector/extension cord.

Temperature will not change.
– Defective control panel circuit board.

Heater does not turn on but other functions work fine.
– Manual reset needed.

Unit continues to run after reaching set temperature/or powering off.
– Cool down cycle.

Heat turns on randomly.
– Ambient room temperature scan.

Buttons do not work.
– Defective control panel circuit board.

Control panel does not illuminate.
– Defective control panel circuit board.

How many quartz heating elements are in my unit?
– 3 Infrared Quartz heating elements.

Remote control is not working.
– No batteries
– Poor signal
– Distance

REPLACEMENT PARTS
– Remote Control
– Thermostat Sensor
– Main Circuit Board
– Control Panel Circuit Board

CARE AND MAINTENANCE

BATTERY REPLACEMENT (2x AAA batteries)

WARRANTY

Why download the Manual?

This instruction manual provides all the information from Twin-Star International / Duraflame about the 9HM1000-C240 infrared quartz heater, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
