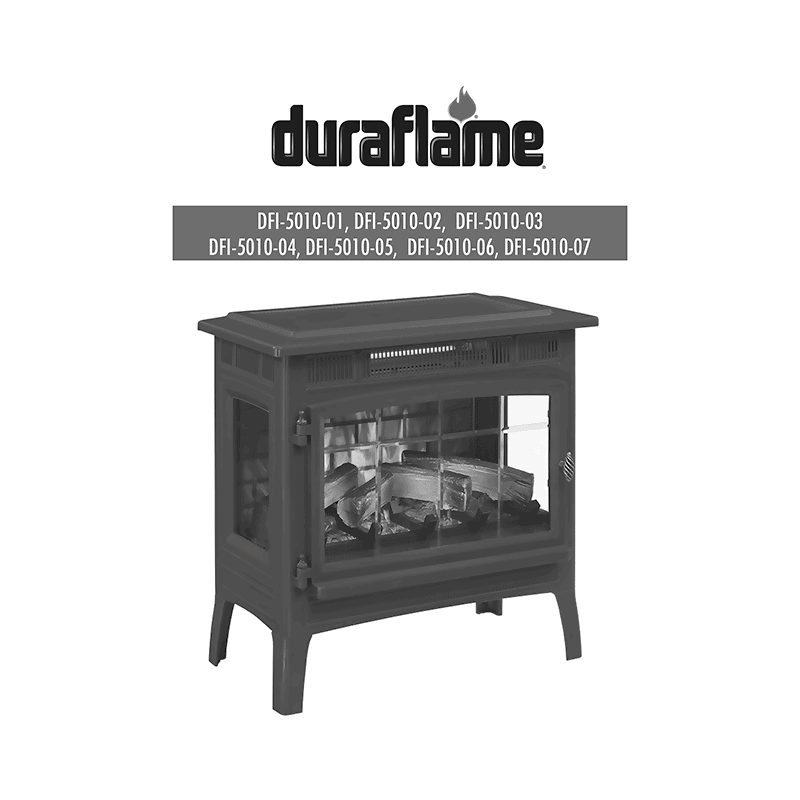

Duraflame DFI-5010-01 Electric Stove (with Heater) Instruction Manual

Description

This PDF instruction manual is for the Duraflame DFI-5010-01 Electric Stove with Heater.

About the Item

Duraflame DFI-5010-01 3D Infrared Electric Fireplace Stove with Heater, 1500 Watts

Read all instructions before using this appliance. Save these instructions.

DOCUMENT(S) AVAILABLE

(PDF) INSTRUCTION MANUAL / MANUEL D’INSTRUCTION / MANUAL DE INSTRUCCIONES

Available Languages

ENGLISH (EN) | FRANÇAIS (FR) | ESPAÑOL (ES)

SUMMARY OF CONTENTS

REGISTER YOUR PURCHASE

IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons.

GETTING STARTED

PRODUCT SPECIFICATIONS
– VOLTAGE: 120VAC, 60 Hz
– AMPS: 12.5 Amps
– WATTS (max.): 1500 Watts

INSTALLATION INSTRUCTIONS
– Tools Required for Assembly
– Leg Assembly

CARE AND MAINTENANCE

OPERATION INSTRUCTIONS
– Control Panel Location
– Control Panel
– Remote Control
NOTE: Please operate the remote transmitter at a slow measured pace. Press the remote control buttons with an even motion and gentle pressure. Repeatedly pressing buttons in rapid succession may cause the transmitter to malfunction.
– Icon description

POWER:
– How to power the unit on.
– How to put in standby mode.
– How to disable or re-enable the heater function.

FLAME:
– There are 5 brightness levels that can be selected and OFF (00) setting. Settings F5 – F1 decrease in brightness.

HEATER: The stove contains a fan forced infrared element heater.
– The thermostat setting range is 62 deg F – 82 deg F (17 deg C – 27 deg C) or continously ON or OFF (00).
– The thermostat is adjustable by 2 deg F or 1 deg C increments by pressing the HEATER button on the control panel.
– To change between deg F and deg C press and hold the HEATER button on the control panel for 3 seconds.
– The button on the remote only turns the heater on/off to the thermostat setting selected with the control panel

TIMER:
– Pressing the timer button will cycle through the timer settings: 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H and off (00).

TROUBLESHOOTING GUIDE
1. Display shows E1
– The thermostat sensor is broken or disconnected.

2. Display shows E2
– The thermostat sensor is broken.

3. Display shows E3
– Manual Reset overheat protection has triggered.

4. No power, buttons do not light up.
– Power cord was not plugged into the outlet.

5. Stove does not turn on manually.
– No incoming power from the electrical wall socket or buttons.
– Improper operation.
– Defective button

6. Flames are not moving.
– Defective flame generator drive motor.
– Spinner detached from the motor.

7. Logs glow, but no flame effect.
– Flame effect turned off

8. Heater does not blow warm air.
– Thermostat setting is preventing heater from turning on.

9. Heater is not turning on.
– Improper operation
– Defective heater/blower assembly.

10. Not producing enough heat.
– Power strip/surge protector/ extension cord being used
– Location of unit.

11. Unit blows cool or cold air.
– Defective heater blower assembly.

12. Noise with heater on.
– Dirty heater blower motor
– Defectiveheater/blower assembly.

13. Noise with flames on and heater off.
– Defective flame generator drive motor.
– Dented back panel
– Warped spinner shaft

14. Is it safe to place unit on carpet?
– It is safe to place unit on carpet but make sure any flammable items are at least 3 feet away from front and sides of the unit.

15. How many square feet will my unit warm up?
– Provides supplemental heat up to 1000 square feet.

16. Flame effect works but heater function does not and the emberbed flashes when the heater button is pressed.
– With the power on press and hold the POWER button on the control panel for 10 seconds. Once re-enabled the emberbed lights will flash multiple times.

17. Remote control is not working when buttons are pressed.
– No batteries or battery power.
– Poor signal
– Distance

EXPLODED VIEW
– Part Name / Part Number

BATTERY REPLACEMENT (2x AAA batteries)

WARRANTY

CONTACTING CUSTOMER SERVICE
