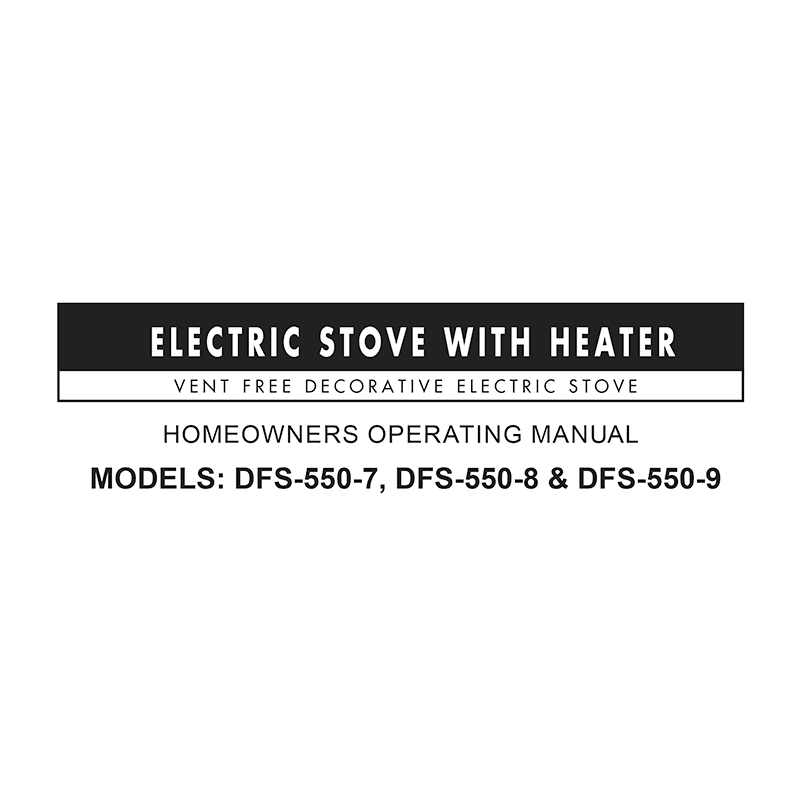

Duraflame DFS-550-8 Electric Stove (with Heater) Instruction Manual
Download PDF user manual for Twin-Star International / Duraflame DFS-550-8 Electric Fireplace Stove with Heater, 1500 Watts (EN|FR|ES) 26 pages 2011 zip
Description
This PDF instruction manual is for the Duraflame DFS-550-8 Electric Stove with Heater.
About the Item
Duraflame DFS-550-8 Electric Fireplace Stove with Heater, 1500 Watts
Please read the Installation & Operating Instructions before using this appliance.
Save these instructions.
DOCUMENT(S) AVAILABLE
(PDF) INSTRUCTION MANUAL / MANUEL D’INSTRUCTION / MANUAL DE INSTRUCCIONES
Available Languages
ENGLISH (EN) | FRANÇAIS (FR) | ESPAÑOL (ES)
SUMMARY OF CONTENTS
IMPORTANT INSTRUCTIONS
PRODUCT SPECIFICATIONS
– Voltage: 120 VAC, 60 Hz
– Amps: 12.5 Amps
– Watts (Max.): 1500 Watts
PACKAGE CONTENTS
STOVE LOCATION
ELECTRICAL CONNECTION
OPERATING INSTRUCTIONS
HOW TO ACCESS CONTROL PANEL
– POWER:
The Power switch supplies power to all of the functions of the fireplace and will illuminate the flame effect. This switch must be lit for any of the functions to work.
NOTE: Holding the POWER button on the control panel for 10 seconds will disable the heater function.
Re-activate the heater function by holding this button for 10 seconds again. The controls will beep several times when this function is activated.
– HEAT:
Your fireplace consists of a fan-forced wire element type heater. The HEATER switch turns the heater ON and OFF. This switch must be lit for the heater function to work.
– TEMPERATURE:
The Temperature control knob helps regulate the ambient temperature level. The further the knob is rotated clockwise, the higher the set point temperature. Turning the knob counter-clockwise will lower the set point temperature.
– Use +/- to increase or decrease the flame brightness levels.
NOTE: Please operate the remote transmitter at a slow measured pace.
Press the remote control buttons with an even motion and gentle pressure.
Repeatedly pressing buttons in rapid succession may cause the transmitter to malfunction.
REPLACING THE REMOTE CONTROL BATTERIES (2pcs AAA batteries)
CARE AND MAINTENANCE
– Clearance To Combustibles
– Cleaning Trim
– Replacing The Light Bulb
MAINTENANCE OF MOTORS
TROUBLESHOOTING
1. NO POWER, SWITCHES DO NOT LIGHT UP.
– Power cord was not plugged into the outlet.
2. SWITCHES LIGHT UP, BUT NO FLAME EFFECT.
– Broken or loose bulb.
3. LOGS GLOW, FLAME EFFECT DOES NOT WORK.
– Spinner fell from bracket
– Spinner motor doesn’t work.
4. FLAME EFFECT OPERATES, BUT HEATER DOES NOT BLOW WARM AIR.
– Heater switch is in “OFF” position.
– Thermostat is in low position.
5. HEATER DOESN’T WORK, BUT POWER AND HEATER SWITCHES ARE IN THE “ON” POSITION AND THERMOSTAT IS SET ON THE HIGHEST LEVEL.
– The thermal protector has tripped.
– The HEATER function is locked.
WARRANTY
– This warranty is void if…
– If warranty service is needed
