EGO Power+ LM2120SP 21″ Cordless Self-Propelled Lawn Mower Operator’s Manual

Description

This PDF user manual is for the EGO Power+ LM2120SP 21″ Cordless Self-Propelled Lawn Mower.

EGO POWER+ 21″ Self-Propelled Mower With Touch Drive, Model Number: LM2120SP

The EGO POWER+ 21″ Self-Propelled Mower with Touch Drive(TM) delivers 6.0 foot-pounds of cutting torque – power that exceeds gas without the noise, fuss, or fumes. Touch Drive(TM) technology puts complete control of the self-propelled system in the palm of your hands by using pressure to engage the system. Easily control the variable speed with a dial positioned at your fingertips for safe and convenient operation. This cordless lawn mower delivers up to 60 minutes of run time on a single charge with the included 56V ARC Lithium(TM) battery. The electric lawn mower delivers precision cutting with its advanced mulching blade and seven cutting height positions from 1.25 to 4 inches, adjustable with one hand. Three-in-one functionality delivers your choice of mulching, side discharge, or bagging your grass clippings; an easy-access two-bushel grass collection bag is included. This self-propelled lawn mower includes bright LED lights for added visibility when mowing at dawn or dusk, and it folds flat for compact storage between cuts.

The user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.

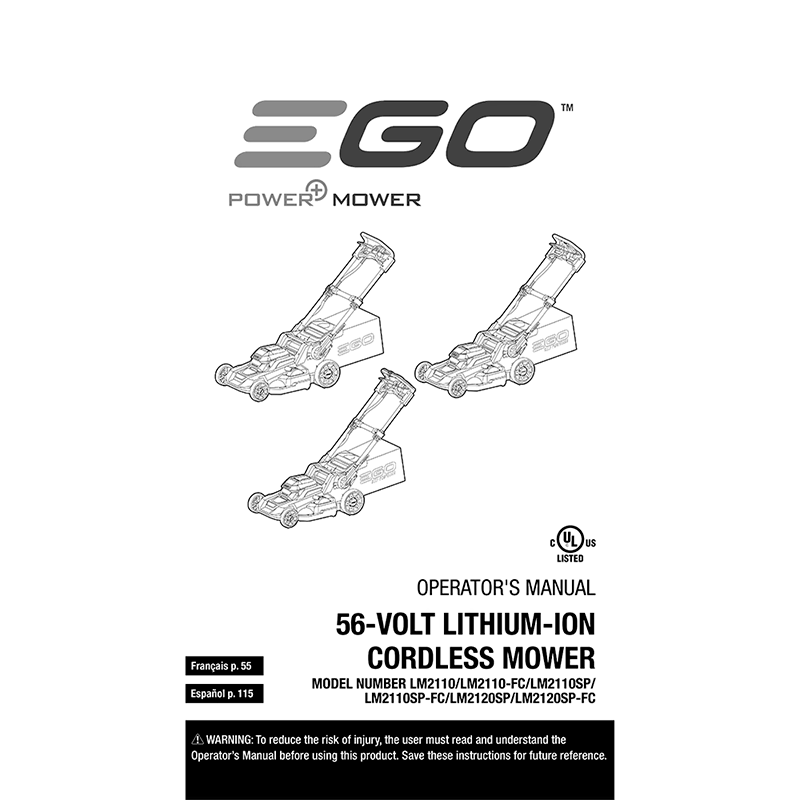

(PDF) OPERATOR’S MANUAL (ENGLISH) / GUIDE D’UTILISATION (FRANÇAIS) / MANUAL DE OPERACIONES (ESPAÑOL)

CONTENTS

Safety Symbols

Safety Instructions

Safety Rules for Cordless Lawn Mower. Children. General Operation. Operation On A Slope. Service.

Introduction

Specifications. Approximate Running Time. Tips on Maximizing the Running Time.

Packing List

Accessories

Description

Assembly. Unpacking. Assembling The Grass Bag. Adjusting The Foldable Handle. Attaching/Removing The Grass Bag. Attaching/Removing The Mulching Insert. Attaching/Removing The Side Discharge Chute. Spring-Loaded Cutting-Height-Adjustment.

How to use/operate EGO Power+ LM2120SP

Operation. To Attach/Detach The Battery Pack. Starting/Stopping The Mower. Variable-Speed Self-Propel System. Using self-propel system with the blades rotating. LED Headlights. Mower-Status Indicator On The Mower.

Mower-status indicator:
– Solid green
– Flashing green
– Flashing red
– Solid orange
– Flashing orange
– Flashing red/green alternately
– Dark & LED on battery flashing

Mower Overload Protection. Battery High-Temperature Protection.

Mowing Tips. Slope Gauge.

Mulching Tips

Maintenance. Cleaning The Mower. Removing The Blade. Installing The Blade. Sharpening The Blade. Sharping Frequency. When Sharpening The Blade. To Sharpen Blade In A Vise. Lubrication. Replacing The Wheels. Replacing The Trailing Shield. Storing The Mower. The handle assembly can be folded away completely for storage.

Troubleshooting:
– The mower fails to start
– The mower cuts unevenly
– Short running time of the mower with included battery
– The mower does not mulch properly
– The blade/motor unexpectedly stops while mowing
– There is excessive vibration
– The handlelocking clamps cannot be closed in position
– Mower is difficult to pull back when the self-propel is turned off
– Self-propel function fails to turn on when one of the selfpropel triggers is pressed
– The motor works but the blade doesn’t cut the grass

Warranty. How To Obtain Service.

Parts List. Explosion Diagram.

Why Download the Manual?

This operator’s manual provides all the information from EGO about the Power+ LM2120SP 21″ cordless lawn mower, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to Download the Manual?

Download it by clicking the button below

Download file
