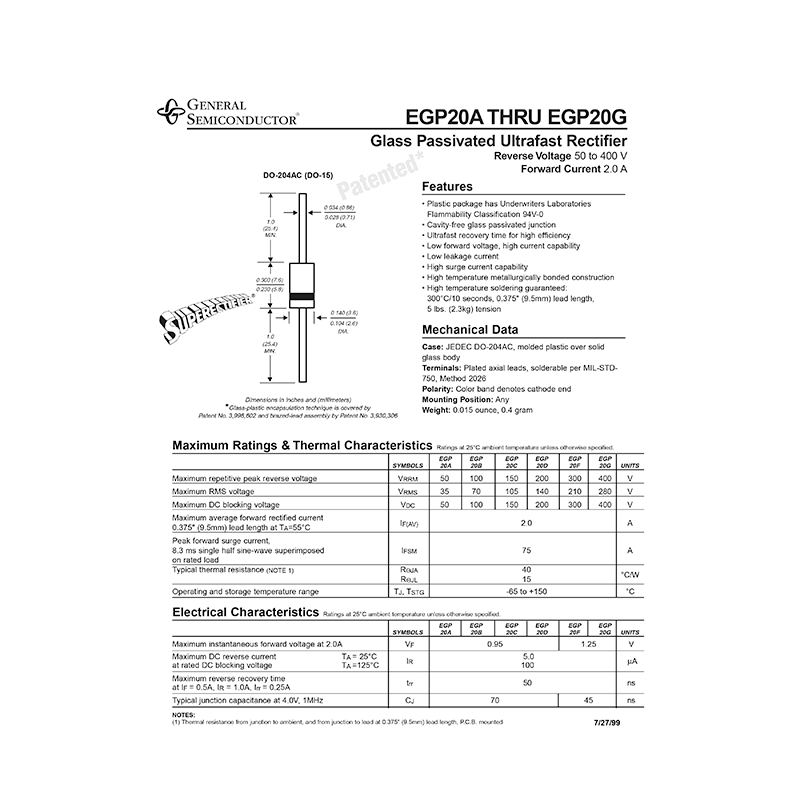

EGP20B General Semiconductor 2A Ultrafast Rectifier Data Sheet

Download PDF datasheet for General Semiconductor EGP20B 2 Ampere 100 Volt Glass Passivated Ultrafast Rectifier (EN) 2 pages 1999 zip

SKU: EGP20BGENERALSEMICONDUCTORDS1999 Category: Brand:

Description

This PDF datasheet is for the General EGP20B Rectifier.

General Semiconductor EGP20B 2 Ampere 100 Volt Glass Passivated Ultrafast Rectifier

FEATURES
* Plastic package has Underwriters Laboratories Flammability Classification 94V-0
* Cavity-free glass passivated junction
* Ultrafast recovery time for high efficiency
* Low forward voltage, high current capability
* Low leakage current
* High surge current capability
* High temperature metallurgically bonded construction
* High temperature soldering guaranteed: 300 deg C/10 seconds, 0.375″ (9.5mm) lead length, 5 lbs. (2.3kg) tension

(PDF) DATASHEET (ENGLISH)

CONTENTS

MECHANICAL DATA

EGP20B PINOUT: Color band denotes cathode end

MAXIMUM RATINGS & THERMAL CHARACTERISTICS
– Maximum repetitive peak reverse voltage
– Maximum RMS voltage
– Maximum DC blocking voltage
– Maximum average forward rectified current
– Peak forward surge current
– Typical thermal resistance
– Operating and storage temperature range

ELECTRICAL CHARACTERISTICS
– Maximum instantaneous forward voltage
– Maximum DC reverse current
– Maximum reverse recovery time
– Typical junction capacitance

RATINGS AND CHARACTERISTIC CURVES
– Fig. 1 – Maximum Forward Current Derating Curve
– Fig. 2 – Maximum Non-Repetitive Peak Forward Surge Current
– Fig. 3 – Typical Instantaneous Forward Characteristics
– Fig. 4 – Typical Reverse Characteristics
– Fig. 5 – Typical Junction Capacitance
– Fig. 6 – Typical Transient Thermal Impedance
