EGP20D General Semiconductor 2A Ultrafast Rectifier Data Sheet
Download PDF datasheet for General Semiconductor EGP20D 2 Ampere 200 Volt Glass Passivated Ultrafast Rectifier (EN) 2 pages 1999 zip
Description
This PDF datasheet is for the General EGP20D Rectifier.
About the Item
General Semiconductor EGP20D 2 Ampere 200 Volt Glass Passivated Ultrafast Rectifier
FEATURES
* Plastic package has Underwriters Laboratories Flammability Classification 94V-0
* Cavity-free glass passivated junction
* Ultrafast recovery time for high efficiency
* Low forward voltage, high current capability
* Low leakage current
* High surge current capability
* High temperature metallurgically bonded construction
* High temperature soldering guaranteed: 300 deg C/10 seconds, 0.375″ (9.5mm) lead length, 5 lbs. (2.3kg) tension

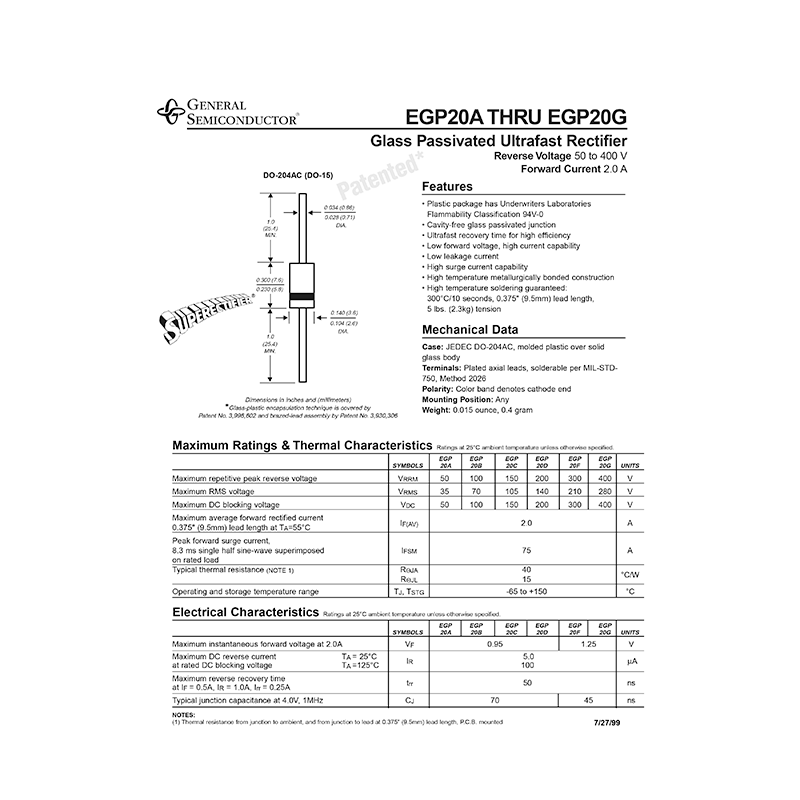

(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
MECHANICAL DATA
EGP20D PINOUT: Color band denotes cathode end
MAXIMUM RATINGS & THERMAL CHARACTERISTICS
– Maximum repetitive peak reverse voltage
– Maximum RMS voltage
– Maximum DC blocking voltage
– Maximum average forward rectified current
– Peak forward surge current
– Typical thermal resistance
– Operating and storage temperature range
ELECTRICAL CHARACTERISTICS
– Maximum instantaneous forward voltage
– Maximum DC reverse current
– Maximum reverse recovery time
– Typical junction capacitance
RATINGS AND CHARACTERISTIC CURVES
– Fig. 1 – Maximum Forward Current Derating Curve
– Fig. 2 – Maximum Non-Repetitive Peak Forward Surge Current
– Fig. 3 – Typical Instantaneous Forward Characteristics
– Fig. 4 – Typical Reverse Characteristics
– Fig. 5 – Typical Junction Capacitance
– Fig. 6 – Typical Transient Thermal Impedance
Why download the Datasheet?
This datasheet provides all the information from General Semiconductor about the EGP20D Rectifier, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to download the Datasheet?
Download it by clicking the button below
