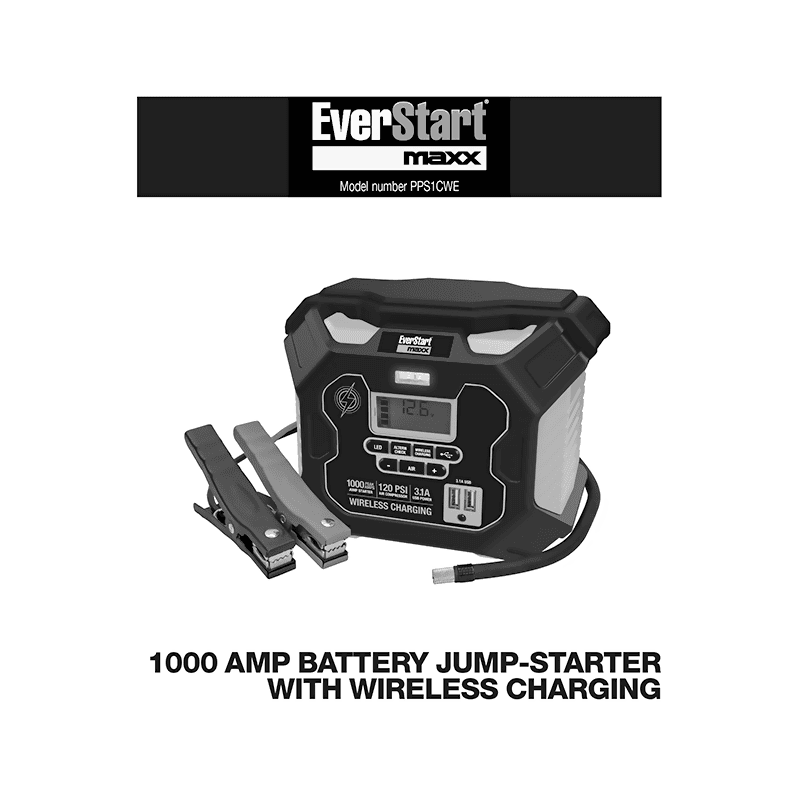

EverStart Maxx PPS1CWE 1000-Amp Battery Jump-Starter Instruction Manual

Description

This PDF instruction manual is for the EverStart Maxx PPS1CWE Jump-Starter.

About the Item

EverStart Maxx PPS1CWE 1000 Peak Amp Power Station with Jump Starter, 120 PSI Compressor, Wireless Phone Charging and USB Ports

Featuring integrated, powder-coated metal clamps that deliver up to 1000 peak battery amps, it can start most vehicles on the road today (including big V8-powered cars and trucks).
The built-in compressor features a Sure Fit nozzle to attach to most tire valve stems and digital Autostop functionality. Just use the LCD display to select your desired tire pressure, press start and the compressor will take care of the rest.
It features wireless charging capability that can charge up compatible smartphones on contact.
It also has an LED work light and a push-button Alternator Check function.
Practical safety features like Reverse Polarity Protection help make the EverStart MAXX PPS1CWE Jump Starter a user-friendly upgrade for any driver.
ETL listed.

– Delivers up to 1000 peak battery amps to jump-start most vehicles (up to and including V8-powered cars and trucks).
– Integrated 120 PSI Digital Air Compressor with Autostop functionality to inflate vehicle tires and sports equipment with ease.
– Features wireless charging to power up your smartphone and other devices on contact.
– Dual high-output USB ports to recharge or power multiple small electronics at the same time
– LED work light provides added illumination that’s helpful during power outages, camping trips, or when performing roadside repairs after dark.
– Impact-resistant polymer housing that’s compact for easy storage and handling.
– Push-button Alternator Check can help you check on your vehicle’s electrical system in minutes.
– A backlit LCD screen helps manage functions and provides key information like battery voltage.
– Compressor features a new 10 minute Auto Shut Off timer to avoid damage from heat, should the compressor be left ON unintentionally or unattended

Read and understand this instruction manual before using this unit.
Save this instruction manual for future reference.

DOCUMENT(S) AVAILABLE

(PDF) INSTRUCTION MANUAL

Available Languages

ENGLISH (EN) | ESPAÑOL (ES)

SUMMARY OF CONTENTS

FEATURES
– Product view
– Names of parts, buttons, indicators, ports

LCD DISPLAY DETAIL
– Description of symbols and icons

SAFETY GUIDELINES / DEFINITIONS
– Warnings and cautions
– Risk of unsafe operation

IMPORTANT SAFETY INSTRUCTIONS
– General safety warnings and instructions
– Specific safety instructions for charging this unit
– Extension cords. Minimum gauge for cord sets.
– Specific safety instructions for wireless charging
– Specific safety instructions for jump starters
– Specific safety instructions for the USB power ports
– Specific safety instructions for compressors
– First aid: Skin, Eyes, LCD liquid crystal display.

OVERVIEW

Common Actions and Unit Responses

The following actions turn the unit on and activate the LCD screen:
– Press the LED Area Light Power Button
– Press the Alternator Check Button
– Press the Wireless Charging Button
– Press the USB Power Button
– Press the Compressor Power Button
– Whenever the clamps are properly connected to a battery
– If the red and black clamps touch each other
– If the clamp connections to the battery’s positive and negative terminals are reversed
– When the unit is charging or recharging using the supplied Charging Adapter

VIEWING BATTERY STATUS

CHARGING/RECHARGING
– Procedure

WIRELESS CHARGING
– Procedure

JUMP-STARTER
– Procedure
– Procedure for jump-starting a NEGATIVE GROUNDED SYSTEM (negative battery terminal is connected to chassis) (MOST COMMON)
– Procedure for jump-starting POSITIVE GROUND SYSTEMS

ALTERNATOR CHECK
– Part 1
– Part 2

PORTABLE COMPRESSOR
– Inflating tires or products with valve stems
– Inflating other inflatables without valve stems

USB PORTS
– Using the USB ports

LED AREA LIGHT
– How to turn the light on.
– How to turn the area light off.

CARE AND MAINTENANCE
– Battery Replacement/Disposal

TROUBLESHOOTING
– Unit not charging
– Wireless Charging function will not charge appliance
– Engine fails to jumpstart
– Portable Compressor will not inflate
– USB Power Port will not power appliance
– LED Area Light does not come on

ACCESSORIES

SERVICE INFORMATION

WARRANTY

SPECIFICATIONS
– Boost Ampere: 1,000A peak, 350A instant
– Battery Type: SLA, 12V DC
– Input: 120V AC, 60Hz, 14W
– Compressor: 120 PSI (max.)
– USB Output: 5V DC each, 3.1A (max.)
– Wireless Charging: 15W (max.)
