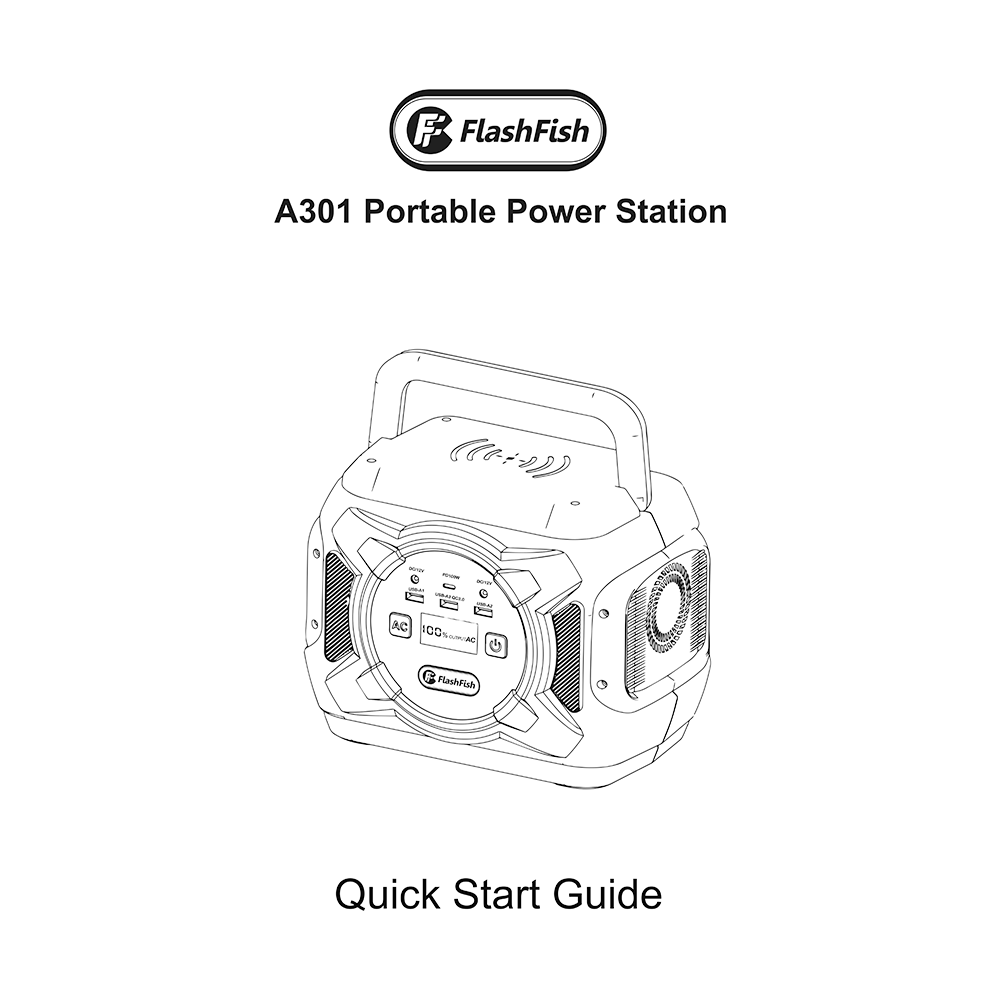

FlashFish A301 Portable Power Station Quick Start Guide

Description

This PDF user guide is for the FlashFish (Gofort) 320 W / 292 Wh Li-ion Portable Power Station A301.

About the Item

FlashFish (Gofort) A301 Portable Power Station 320W 292Wh Li-ion

With its 292Wh / 80000mAh capacity and 320W AC Output, 2 pure sine wave AC outlets, Flashfish A301 can power devices under 320W, such as laptops, drone, TV small freezer, small fan etc.
As a 292Wh backup lithium battery, the A301 provides enough juice to run essential devices for hours, depending on the actual output.
Features 2 x Pure Sine Wave AC outlets, 1 x 100W USB-C ports, 2 x DC ports, 2 x USB-A ports, 1 x QC3.0 port, 1 x wireless charging pad.
Flashfish A301 could deliver 100W max via the PD USB-C consistently, make it powerful enough to Type-C port electronic devices super-super-fast, it means your phone / pad / laptop will reach 80% power within half an hour.
The built in LED light is very helpful to explore an unfamiliar place, night camping or emergency situation. Includes Read Light Mode (3 brightness), SOS Mode (SOS flashing / Strobe Mode) and Spot Light Mode.
It takes only 3.5 hours to fully charge the power station through the AC wall charger and 100W PD Type-C port simultaneously (PD Charging Cable Included ). Moreover, Flashfish A301 could be charged individually with AC adapter / Cigarette lighter adapter / PD-Type-C / Solar panel.

The purpose of this Quick Start Guide is to help you use the product correctly. Please read the guide carefully and keep it for future reference.

DOCUMENT(S) AVAILABLE

(PDF) QUICK START GUIDE

Available Languages

ENGLISH (EN)

SUMMARY OF CONTENTS

– How to use the Flashfish (Gofort) A301.
– Button description: Power On/Off button, AC Power button, LED Light On/Off button (Spot Light Mode/Read Light Mode/SOS mode)
– Technical Parameters
– LED display
– Charging method. HOW TO CHARGE FLASHFISH (GOFORT) A301: Power Adapter charging / Car charging / Solar charging.
– Important Information. Caution.
– Packing List

– SCHEMATIC DIAGRAM:
Battery Capacity: 292 Wh / 80000 mAh
Battery Type: Lithium-ion
AC Output: 110V Rated 320W Peak 600W
DC Output: 12V/10A (MAX)
PD Type-C Output: 100W
Wireless charger: 10W
USB-A Output: 5V 2.4A
QC 3.0 Output: 18W
DC Input: 5V-15V/4A
Solar Charging: 18V-24V / 100W Recommended
Charging Time: 4 hours with 15V/4A AC Adapter
Cycles: >800 times
Operation Temperature: 14 deg – 104 deg F
Weight: 7.05 lb
Size: L 9.37″ x W 7.17″ x H 6.30″

– COMMON PROBLEMS:

Q: Can all the ports be used at the same time as Flashfish A301 is charging?
A: In order to reduce the damage to the battery, the Flashfish A301 will automatically turn off the AC output, DC output, and wireless output when charging, but all USB and Type-C outputs can still be used normally. When the AC output is lower than 300W and do not be charged, all output ports can be used at the same time.

Q: How to judge the storage power of the FlashFish A301?
A: Please refer to the instructions on the display to check the battery level of the FlashFish A301: the battery status is indicated by the percentage of the battery level on the display. The FlashFish A301 can be used without being fully charged.

Q: Can the FlashFish A301 be taken on the plane?
A: Not possible. According to airline transportation standards, the capacity of lithium battery products carried cannot exceed 100Wh, and the capacity of FlashFish A101 has reached 292Wh.

Gofort is a sub-brand of FlashFish available only in the US and Canada.
