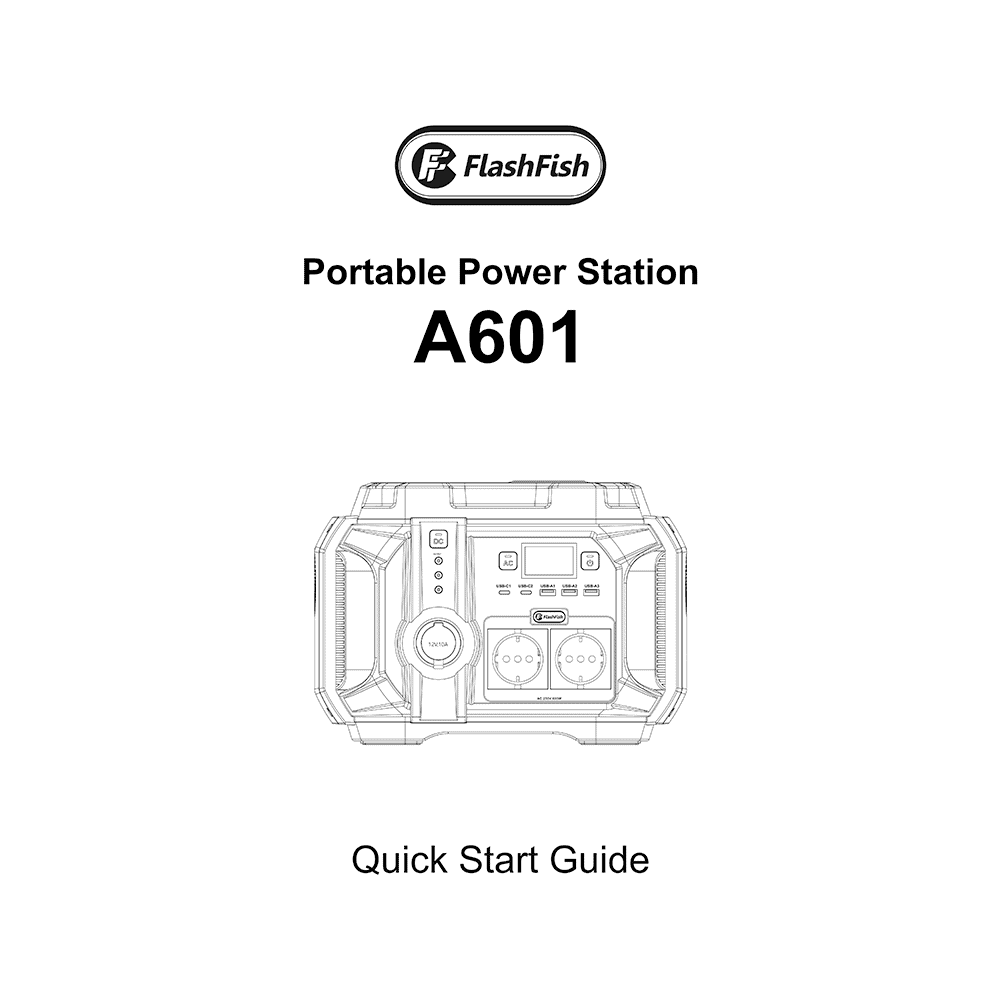

FlashFish A601 Portable Power Station Quick Start Guide

Download PDF user manual for FlashFish A601 Portable Power Station 600 W / 540 Wh Li-ion (EN) 8 pages 2022 zip

SKU: FLASHFISHA601UM Category: Brand:

Description

This PDF user guide is for the FlashFish 600 W / 540 Wh Li-ion Portable Power Station Model A601.

FlashFish A601 Portable Power Station 600W 540Wh Li-ion

Please read the user guide carefully and keep it for future reference.

(PDF) QUICK START GUIDE in English (EN) language.

CONTENTS

HOW TO USE FLASHFISH A601 POWER STATION

BUTTON DESCRIPTION
– Power ON/OFF Button
– AC ON/OFF Button
– DC ON/OFF Button
– AC ON/OFF Button

SCHEMATIC DIAGRAM

TECHNICAL PARAMETERS
– Capacity: 540Wh / 150000mAh
– Battery Cell Type: Lithium-ion
– AC Output: Rated 600W, Peak 1200W
– DC Output: 12V/10A
– Car Port Output: 12V/10A
– USB-C1 Input / Output: 5V/2.4A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
– USB-C2 Output: 5V/2.4A, 9V/3.0A, 12V/2.25A
– USB-A1 Output: 5V/2.4A, 9V/2.0A, 12V/1.5A
– USB-A2 Output: 5V/2.4A
– USB-A3 Output: 5V/2.4A
– Wireless Charger: 2*15W
– USB C1 Input+DC Input: 180W (Max), 3.5 Hours Fully Charge
– AC Adapter: 20V/4A, 80W
– Solar Charging: 18V-30V, 200W Recommended
– Charging Time: 7 Hours With Original AC Adapter
– Cycles: 800+ times
– Operation Temperature: -20 deg C .. -40 deg C / -4 deg F .. 104 deg F
– Weight: 6.4kg / 14.1lb
– Size: L 308.9mm x W 217.5mm x H 219mm / L 12.16″ x W 8.56″ x H 8.62″

TROUBLESHOOTING
If your device is not successfully charged with this product, please follow the steps below:
1. Make sure that the output is turned on, the LED display is on, and the product is in standby state.
2. Check the battery power percentage, if it is 20% or less, please charge the product.
3. The power of the device you are using exceeds the maximum power supply for the port of the product.
4. The device cable you are using is not plugged in well or has poor contact.

CHARGING METHOD. HOW TO CHARGE FLASHFISH A601
– Power adapter charging
– Car charging
– Solar charging

IMPORTANT INFORMATION
– Cautions

WHAT’S IN THE BOX

COMMON PROBLEMS
1. How to judge the storage power of the product?
Please refer to the instructions on the display to check the battery level of the product:
The battery status is indicated by the percentage of the battery level on the display.
The product can be used without being fully charged.

2. Can the product be taken on the plane?
According to airline transportation standards, the capacity of lithium battery products carried cannot exceed 100Wh.
And the capacity of this product has reached 540Wh.

3. How to judge whether the product is running?
This product will show output/input through the display screen, please refer to the display screen description.

WARRANTY CARD
