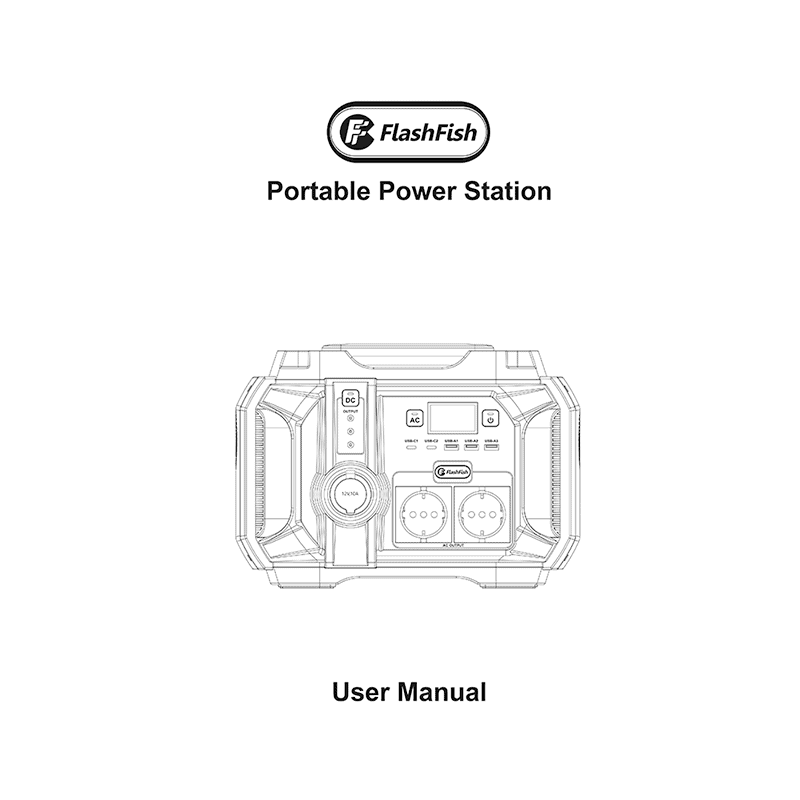

FlashFish A501 Portable Power Station User Manual
Download PDF user manual for FlashFish / Gofort A501 Portable Power Station 500 W / 540 Wh Li-ion (EN) 8 pages 2022 zip
Description
This PDF user manual is for the FlashFish (Gofort) 500 W / 540 Wh Li-ion Portable Power Station Model A501.
About the Item
FlashFish (Gofort) A501 Portable Power Station 500W 540Wh Li-ion
A501 500W power station can supply electrical power up to 500W, with a peak rate of 1000W.
Please read the user manual carefully and keep it for future reference.
DOCUMENT(S) AVAILABLE
(PDF) USER MANUAL
Available Languages
ENGLISH (EN)
SUMMARY OF CONTENTS
LED DISPLAY
The display shows the product’s battery power percentage and charging and discharging status etc.
BUTTON DESCRIPTION
Power ON/OFF Button
DC Power Button
AC Power Button
LED Light ON/OFF Button
1. Read Light Mode
2. SOS Mode
IMPORTANT INFORMATION
– Cautions
SCHEMATIC DIAGRAM
SUPPORT CHARGING DEVICES
PACKING LIST
HOW TO USE THE FLASHFISH / GOFORT A501
– Note: Please turn the power off when not using to save power.
CHARGING METHOD. HOW TO CHARGE FLASHFISH (GOFORT) A501.
– support power adapter charging
– support car charging
– support solar charging (recommend DC 18-30V)
SOLAR PANEL CHARGING
TECHNICAL PARAMETERS
– Battery Capacity: 540 Wh / 150000 mAh
– Battery Type: Lithium-ion
– AC Output: Continuous 500W Peak 1000W
– DC x 4 Output: 12V / 10A
– USB-A1: 5V 2.4A, 9V 2.0A, 12V 1.5A
– USB-A2, A3: 5V 2.4A
– USB-C1: 5V 2.4A, 9V 3.0A, 12V 3.0A, 15V 3.0A, 20V 3.0A
– USB-C2: 5V 2.4A, 9V 3.0A, 12V 2.25A, PPS 3.3V~5.9V 3.0A, 3.3V~11V 3.0A
– DC Input: 5V-30V 6A 120W MAX
– Solar Charging: 18V-24V
– Cycles: >800 times
– Weight: 6.4kg
– Size: L 30.89cm x W 21.75cm x H 23.29cm
Operating temperature range:
Low temperature will affect the battery capacity of the product.
The product can be charged in the temperature range of 0-40 deg C . If it is required to charge below 0 deg C, it is recommended to place the product in other warm conditions and connect the charger for charging.
The product can charge device in the temperature range of -20 .. -40 deg C
The battery would shut off when it reaches a certain high/low temperature.
COMMON PROBLEMS
1. How to judge the storage power of the product?
Please refer to the instructions on the display to check the battery level of the product:
The battery status is indicated by the percentage of the battery level on the display.
The product can be used without being fully charged.
2. Can the product be taken on the plane?
No. According to airline transportation standards, the capacity of lithium battery products carried cannot exceed 100Wh, and the capacity of this product has reached 540Wh.
3. How to judge whether the product is running?
This product will show output/input through the display screen, please refer to the display screen description.
TROUBLESHOOTING
If your device is not successfully charged with this product, please follow the steps below:
1. Make sure that the output is turned on, the LED display is on, and the product is in standby state.
2. Check the battery power percentage, if it is 20% or less, please charge the product.
3. The power of the device you are using exceeds the maximum power supply for the port of the product.
4. The device cable you are using is not plugged in well or has poor contact.
WARRANTY CARD
Gofort is a sub-brand of FlashFish available only in the US and Canada.
