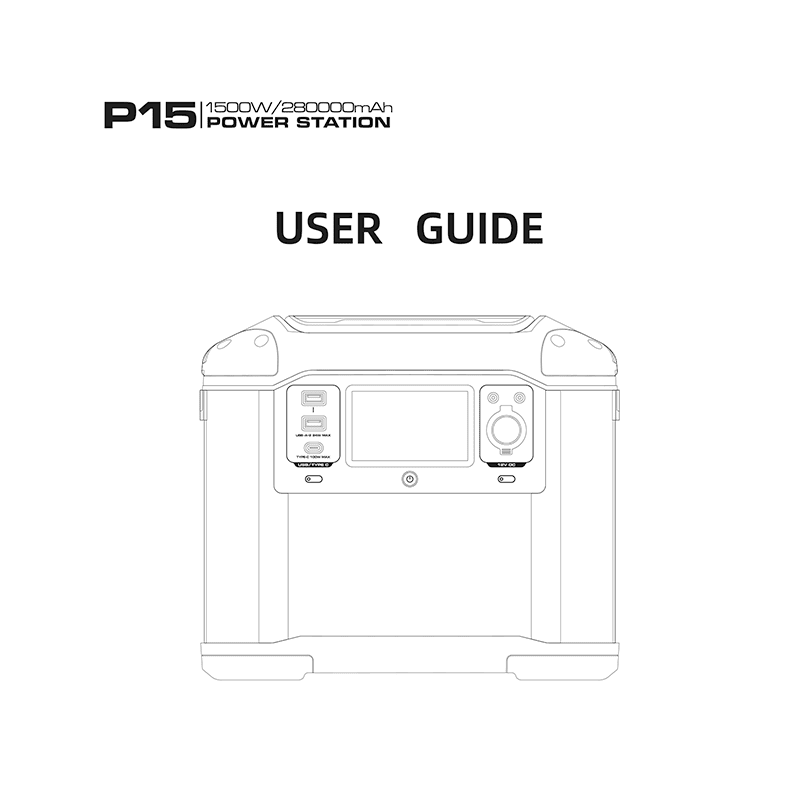

FlashFish Gofort P15 Portable Backup UPS Power Station User Guide

Description

This PDF user guide is for the Gofort (FlashFish) P15 Portable Backup UPS Power Station.

About the Item

FlashFish Gofort P15 Portable Backup UPS Power Station 1500W 1008Wh (280000mAh)

Flashfish equips P15 with 1,500W constant output power and 1,008Wh capacity to cover most power demands. It also has a E-VSZ Mode that delivers 2,500W output to run high-powered devices effortlessly. A wide range of outputs, including AC outlet, USB-A, USB-C, 12V DC outlet, and wireless charging pad, are built for versatile charging for living off-grid or on the go.
Gofort P15 portable power station adopts fast charging of upgraded inverter of E-SPEED and it can recharge 0-80% ultra-fast within 1 hour, and offers a full charge in just 2 hours.
The P15 power generator can power some devices up to 2500W with the E-VSZ mode on, it supports ultra-power loads, which lets you power about 90% of essential devices like kitchen appliances and DIY tools. Please conduct full test on a case-by-case basis to see if the E-VSZ feature can work with your appliances. Use devices below 1500W for the best product use.
Gofort P15 power station can be charged by 940W AC adapter, car charger and solar panel. it built-in MPPT controller that can get the maximum recharging efficiency, supports 4x160W solar panel, can easily get recharged with the efficient solar panel. whether you are at home, on the road, or in the field, there is always a way to charge the power station and power your life.

FEATURES:
– 1500W AC Pure Sine Wave Inverter (3000W surge) with 1008Wh Capacity;
– High-density Batteries with 800+ Life Cycles;
– AC Output By-Pass with UPS Function, 24/7 Home Backup;
– 3 Ways to Recharge (AC/ Solar/ Car);
– Fast Recharge AC 0~80% in 1 Hour;
– E-VSZ Smart Inverter Technology Up To 2500W;
– Safety BMS Reliable Protection;
– 9 outlets for 95% of your appliances.
– US Sockets by default

SPECIFICATIONS
– Model: P15
– Capacity: 1008 Wh
– Cycle Life: 1500+ Times
– Dimensions: L330*W210*H285 mm
– Weight: 12.5 Kg
– AC Outlets(x2): 110V~ 60Hz, Reted 1500W (3000W Peak)
– USB-C Outlets(x1): PD 100W
– USB-A Outlets(x2): QC3.0(24W);
– DC-5521 Outlets(x2): 13.6V, 3A (Max)
– Car Port(x1): 13.6V, 10A 136W (Max)
– Wall Charging: Default AC Charger 1086W (0~80%); 542W (80~100%)
– Solar Charging: 12-44V 8A, 300W Max
– Car Charging: 12V,96W
– LED Light: 5W (500LM), 3 Modes
– Operating Temperature: -10~40 deg C
– Battery Type: Li-ion

Please read the instruction manual carefully before using the product.

(PDF) USER GUIDE in English (EN) language.

SUMMARY OF CONTENTS

– Important safety instructions
– P15 guidelines for use, maintenance and safety
– LCD display description
– Functionality and personalization setting
– AC output version
– How to recharge P15 portable station
– E-UPS function introduction
– Technical specifications
– E-VSZ mode introduction
– Packing list
– Optional accessories

– FAQ:

HOW TO USE P15 PORTABLE POWER STATION
Please use it within the allowable operating temperature of the P15 portable power station. Use outside the optimum operating temperature may cause the P15 portable power station to go beyond its safe and effective operating limits. Do not immerse the host in water, the P15 portable power station does not have the waterproof function. Please be waterproof and do not fail the warranty clause. Continued use of high-power electrical output may cause excessive temperature protection due to too high host temperature. Please wait about 30-60 minutes before use or charging.

HOW TO CHARGE THE P15 PORTABLE POWER STATION
1. The P15 portable power station must be charged with an officially designated charging cable. We will not be responsible for all the consequences of charging the non-original parts.
2. When charging, please place the machine on the surrounding flat ground without flammable and combustible substances. Please watch the product on site when charging to prevent accidents.
3. After continuous full load discharge, if the product battery is in a high temperature state, it’s recommended to be charged after the machine is reduced to room temperature. Otherwise, charging may be prohibited. The rechargeable ambient temperature of the battery is 0°C – 45°C, and the ideal charging ambient temperature (22-28°C) can significantly extend the service life of the battery.

HOW TO STORE AND TRANSPORT P15 PORTABLE POWER STATIONS
1. Please store the P15 portable power station out of the reach of the children. If children accidentally swallow parts, seek medical help immediately.
2. When the equipment power is low, please charge before storing it. Otherwise, long and low power storage may cause damage to the battery inside the productlf the device is seriously insufficient and idle for too long, the battery will enter the deep sleep mode. If the battery needs to be awakened from the deep sleep, choose the slow charge mode for the machine until full. To extend battery life, we recommend that you discharge at least every three months and charge with slow charges.
3. It is forbidden to place the P15 portable power stations close to the heat source, such as the direct sunlight in the car, the fire source, or the heating furnace.
4. The environment for the storage equipment shall be kept dry. Do not refer the machine to the water or where it may leak.
5. It is forbidden to store or transport the equipment together with eyeglasses, watches, metal necklaces, hairpins, or other metal objects.

PRODUCT BATTERY WASTE TREATMENT:
1. Before placing the device in the designated battery recycling bin, be sure to completely empty the battery of the device. Batteries are hazardous chemicals and should not be disposed of in ordinary trash. Please observe local battery recycling and disposal laws and regulations for details.
2. The battery cannot be started after overdischarging. Do not remove the power supply by yourself. Please dispose of as waste.

HOW TO MAINTAIN THE P15 PORTABLE POWER STATION:
1. Conditions of over 60°C or less than -20°C.
2. If the machine is left idle for a long time, it will affect its performance.
3. Please recharge and discharge it at least once every three months to keep the battery active.
4. P15 portable power stations are widely used and may therefore simple cleaning to be required from time to time. Please wipe it with a dry nonfrosted cloth. If the surface is too dirty, we recommend cleaning up for your phone and computer screens. Do not expose the product to large quantities of water!
