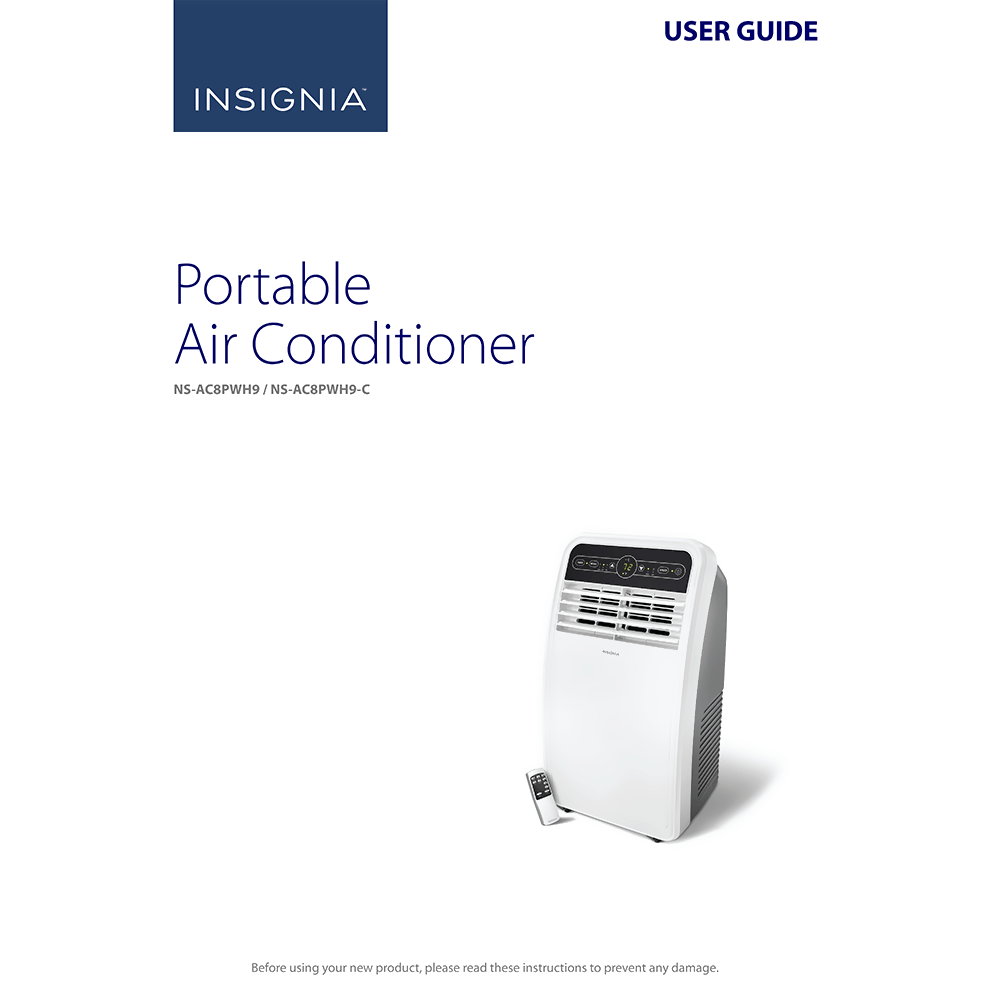

Insignia 350 sq.ft Portable Air Conditioner NS-AC8PWH9 User Guide

Download PDF user manual for Best Buy / Insignia NS-AC8PWH9 350 sq.ft Portable Air Conditioner (EN|ES|FR) 21 pages V4 V5 22-0984 22-0985 2022 zip

SKU: INSIGNIANSAC8PWH9UM Category: Brand:

Description

This PDF user guide is for the Insignia NS-AC8PWH9 350 sq.ft Portable Air Conditioner.

About the Item

Insignia 350 Sq. Ft. Portable Air Conditioner, Model: NS-AC8PWH9 | NS-AC8PWH9-C

Stay comfortable in warm, humid weather with this Insignia portable air conditioner. Its smooth casters let you position it anywhere it’s needed, and it can be vented through sliding, and vertical rise double-hung windows for versatile use. The handy remote control of this 4,500 BTU DOE/8,000 BTU ASHRAE Insignia portable air conditioner lets you adjust settings for fan speed and cooling levels from a distance.

Before using your new product, please read these instructions to prevent any damage.

(PDF) USER GUIDE (ENGLISH) (FRANÇAIS) (ESPAÑOL)

SUMMARY OF CONTENTS

Introduction

Important Safety Instructions

Features:
– Package contents
– Main components
– Remote control

Setting up your portable air conditioner:
– Placing your air conditioner
– Installing your air conditioner

Using your portable air conditioner:
– Inserting the batteries in the remote control
– Using the air conditioner

Cleaning and maintaining your air conditioner:
– Cleaning the case
– Cleaning the air filter
– Emptying the water collection tank
– Storing your air conditioner
– Restarting your air conditioner after storage

Troubleshooting:
– Air conditioner does not start
– The air conditioner does not cool
– The air conditioner is freezing up
– The air conditioner runs too often or too long
– The venting hose is hot
– The air conditioner is too loud
– The air conditioner makes an odd noise

Intelligent error indication (Error code | Description):
E1 | Coil temperature sensor error.
E2 | Indoor temperature sensor error.
E4 | Anti-freezing protection. The air conditioner coil temperature is too low and the unit has turned off automatically. The unit resets itself when the temperature reaches 46.4° F (8° C).
FL | The internal water tank is full and needs to be emptied.

Understanding your air conditioner’s automatic protection:
– Anti-freezing protection – When the ambient temperature is very low under Cooling mode, the compressor and motor will stop working if the coil temperature is below 46.4° F (8° C). When the coil temperature increases to above 46.4° F (8° C), the protection turns off and the previous mode resumes. When anti-freezing protection is active, E4 appears on the display.
– Water-full protection – When the water level in the bottom water pan exceeds the warning level, the unit will alert automatically, “FL” and “Water Full” will flash on the display. Turn off the air conditioner and drain the water as described in “Emptying the water collection tank” on page 17. After you have drained the water, restart your air conditioner.
– Compressor delay protection – Except for the first power-on, the compressor can start instantly. In other cases, the compressor will start after three minutes delay protection.

Specifications

Warranty

QUICK SETUP GUIDE

Why download the Manual?

This user guide provides all the information from Insignia / Best Buy about the NS-AC8PWH9 350 sq.ft Portable Air Conditioner, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
