IRF9540 Intersil 19A 100V P-Channel Power MOSFET Data Sheet

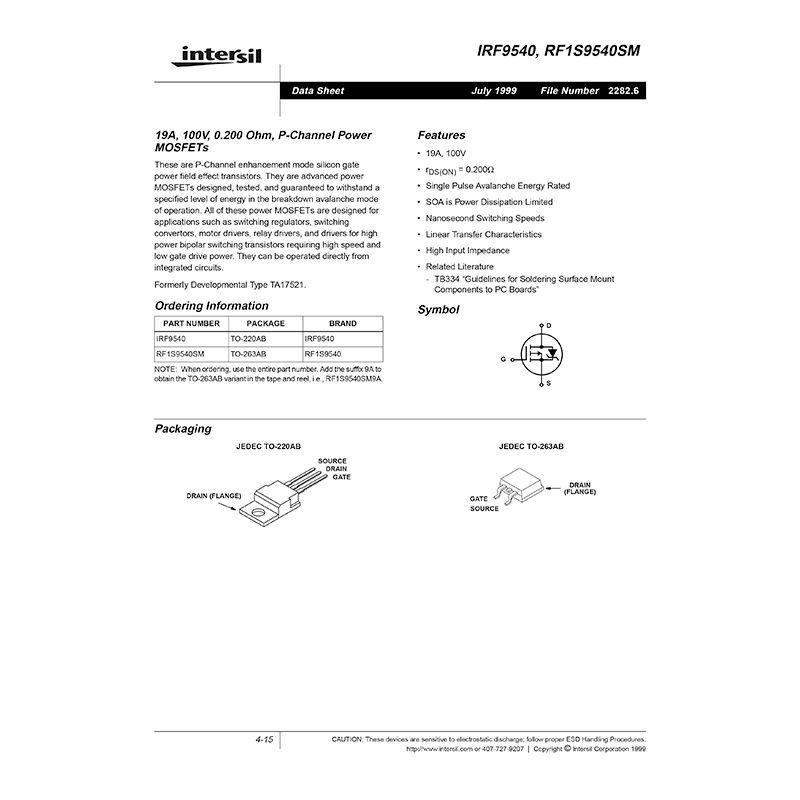

Download PDF datasheet for Intersil IRF9540 P-Channel 19A 100V 0.200 Ohm TO-220AB Power MOSFET (EN) 7 pages 2282.6 1999 zip

SKU: IRF9540INTERSILDS1999 Category: Brand:

Description

This PDF datasheet is for the Intersil IRF9540 Power MOSFET.

About the Item

Intersil IRF9540 19A 100V 0.200 Ohm P-Channel TO-220AB Power MOSFET

These are P-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. They can be operated directly from integrated circuits.
Formerly Developmental Type TA17521.

FEATURES
– 19A, 100V
– rDS(ON) = 0.200 Ohm
– Single Pulse Avalanche Energy Rated
– SOA is Power Dissipation Limited
– Nanosecond Switching Speeds
– Linear Transfer Characteristics
– High Input Impedance
– Related Literature
– TB334 “Guidelines for Soldering Surface Mount Components to PC Boards”

(PDF) DATASHEET (ENGLISH)

SUMMARY OF CONTENTS

– ABSOLUTE MAXIMUM RATINGS
– IRF9540 PINOUT
– INTERNAL SCHEMATIC DIAGRAM
– ELECTRICAL SPECIFICATIONS
– SOURCE TO DRAIN DIODE SPECIFICATIONS
– TYPICAL PERFORMANCE CURVES
FIGURE 1. NORMALIZED POWER DISSIPATION vs CASE TEMPERATURE
FIGURE 2. MAXIMUM CONTINUOUS DRAIN CURRENT vs CASE TEMPERATURE
FIGURE 3. NORMALIZED MAXIMUM TRANSIENT THERMAL IMPEDANCE
FIGURE 4. FORWARD BIAS SAFE OPERATING AREA
FIGURE 5. OUTPUT CHARACTERISTICS
FIGURE 6. SATURATION CHARACTERISTICS
FIGURE 7. TRANSFER CHARACTERISTICS
FIGURE 8. DRAIN TO SOURCE ON RESISTANCE vs GATE VOLTAGE AND DRAIN CURRENT
FIGURE 9. NORMALIZED DRAIN TO SOURCE ON RESISTANCE vs JUNCTION TEMPERATURE
FIGURE 10. NORMALIZED DRAIN TO SOURCE BREAKDOWN VOLTAGE vs JUNCTION TEMPERATURE
FIGURE 11. CAPACITANCE vs DRAIN TO SOURCE VOLTAGE
FIGURE 12. TRANSCONDUCTANCE vs DRAIN CURRENT
FIGURE 13. SOURCE TO DRAIN DIODE VOLTAGE
FIGURE 14. GATE TO SOURCE VOLTAGE vs GATE CHARGE
TEST CIRCUITS AND WAVEFORMS:
FIGURE 15. UNCLAMPED ENERGY TEST CIRCUIT
FIGURE 16. UNCLAMPED ENERGY WAVEFORMS
FIGURE 17. SWITCHING TIME TEST CIRCUIT
FIGURE 18. RESISTIVE SWITCHING WAVEFORMS
FIGURE 19. GATE CHARGE TEST CIRCUIT
FIGURE 20. GATE CHARGE WAVEFORMS
