KA78T08 Fairchild 3-terminal 8V 3A Positive Voltage Regulator Data Sheet
Download PDF datasheet for Fairchild Semiconductor KA78T08 3-pin 8V 3A Positive Voltage Regulator (EN) 10 pages Rev.5.0 7/13/00 zip
Description
This PDF datasheet is for the Fairchild KA78T08 Voltage Regulator.
About the Item
Fairchild Semiconductor KA78T08 3-terminal 8V 3A Positive Voltage Regulator
KA78T08 features:
* Output current in excess of 3.0A
* Output transistor safe operating area compensation
* Power dissipation : 25W
* Internal short-circuit current limiting
* Internal thermal overload protection
* Output voltage offered in 4% tolerance
* No external components required
* Output voltage of 8V

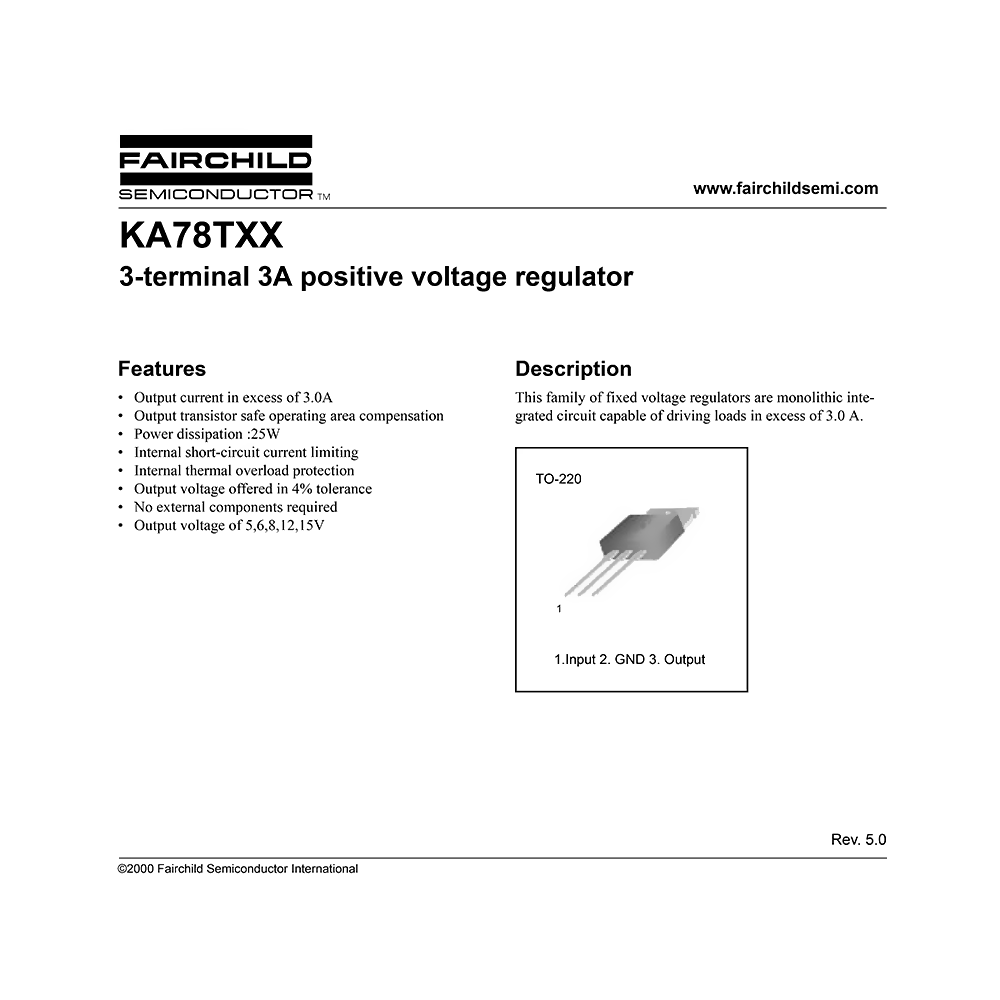

This family of fixed voltage regulators are monolithic integrated circuit capable of driving loads in excess of 3 A.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
KA78T08 PINOUT
INTERNAL BLOCK DIAGRAM
ABSOLUTE MAXIMUM INPUT VOLTAGE
ABSOLUTE MAXIMUM OPERATING TEMPERATURE RANGE
ELECTRICAL CHARACTERISTICS
TYPICAL APPLICATIONS
MECHANICAL DIMENSIONS
