KBP206G JGD 2A 600V Bridge Rectifier Data Sheet

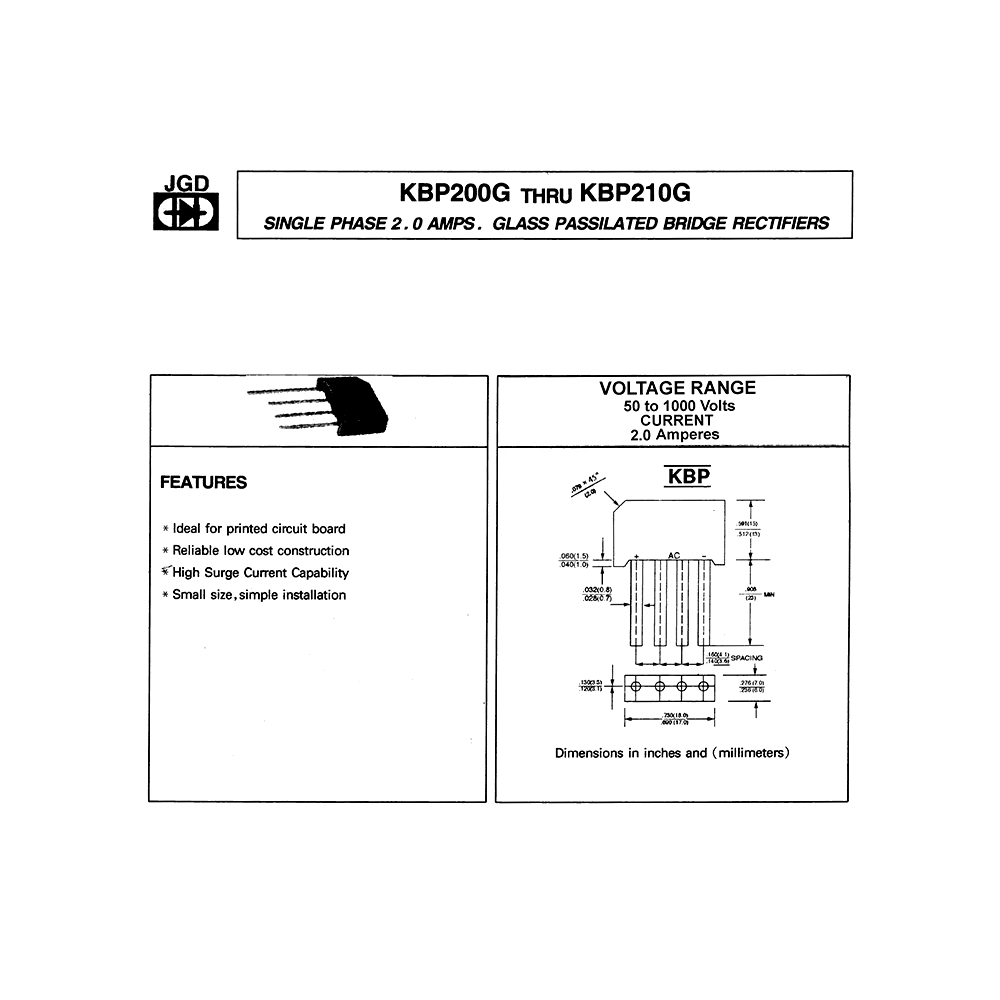

Download PDF data sheet for JINAN GUDE Electronic Device JGD KBP206G Single phase 2A 600V Glass Passivated Bridge Rectifier (EN) 2 pages zip
Description
This PDF data sheet is for the JINAN GUDE Electronic Device JGD KBP206G Single phase 2 Ampere 600 Volt Glass Passivated Bridge Rectifier.
JINAN GUDE Electronic Device JGD KBP206G Single phase 2 Ampere 600 Volt Glass Passivated Bridge Rectifier
Single phase Glass Passilated Bridge Rectifier
FEATURES:
– Ideal for printed circuit board
– Reliable low cost construction
– High Surge Current Capability
– Small size, simple installation
(PDF) DATASHEET in English (EN) language.
CONTENTS:
KBP206G PINOUT
DIMENSIONS
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
– Maximum Recurrent Peak Reverse Voltage
– Maximum RMS Bridge Input Voltage
– Maximum DC Blocking Voltage
– Maximum Average Forward Rectified Current
– Peak Forward Surge Current
– Maximum Forward Voltage Drop
– Maximum Reverse Current
– Operating Temperature Range
– Storage Temperature Range
RATINGS AND CHARACTERISTIC CURVES
– Maximum non-repetitive forward surge current – per element
– Typical forward output current derating curve
– Typical instantaneous forward characteristcs – per element
– Typical reverse characteristics – per element
This data sheet provides all the information (according to the table of contents) from JGD / JINAN GUDE Electronic Device KBP206G Single phase 2 Ampere 600 Volt Glass Passivated Bridge Rectifier. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
