L293D SGS-THOMSON Push-Pull Four Channel Driver Data Sheet

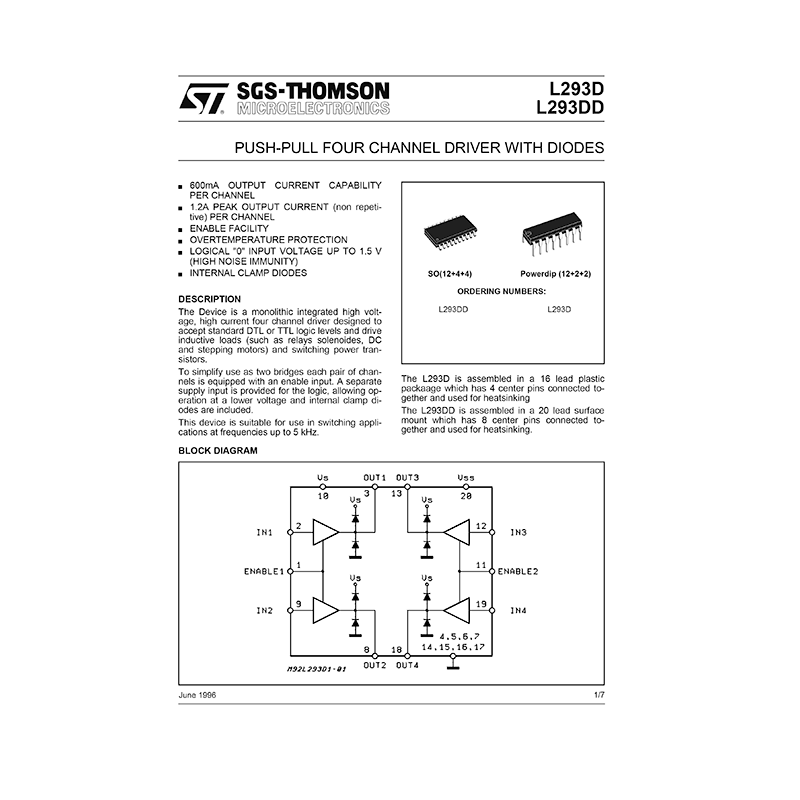

Download PDF datasheet for SGS-Thomson Microelectronics L293D Push-Pull Four Channel Driver With Diodes (EN) 7 pages 1996 zip
Description
This PDF datasheet is for the SGS-Thomson L293D Push-Pull Four Channel Driver.
About the Item
SGS-Thomson Microelectronics L293D Push-Pull Four Channel Driver with Diodes
The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.
To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.
This device is suitable for use in switching applications at frequencies up to 5 kHz.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– DESCRIPTION
– BLOCK DIAGRAM
– L293D PINOUT
– PIN CONNECTIONS
– ABSOLUTE MAXIMUM RATINGS
– THERMAL DATA
– ELECTRICAL CHARACTERISTICS
– TRUTH TABLE
– SWITCHING TIMES
– JUNCTION TO AMBIENT THERMAL RESISTANCE VS. AREA ON BOARD HEATSINK
– PACKAGE MECHANICAL DATA
Why download the Datasheet?
This datasheet provides all the information from SGS-Thomson about the L293D Push-Pull Four Channel Driver, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
