LM211-N TI Voltage Comparator Data Sheet

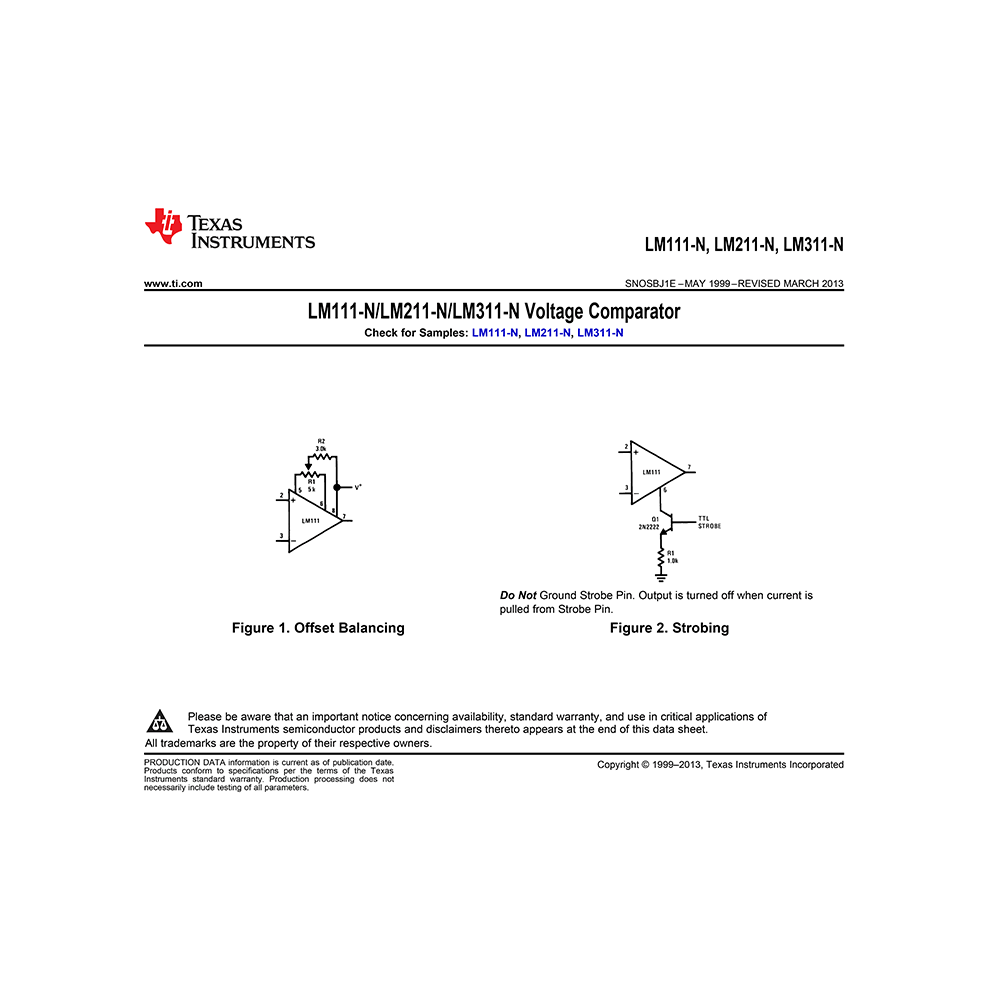

Download PDF datasheet for Texas Instruments LM211-N Voltage Comparator (EN) 33 pages SNOSBJ1E 2013 zip
Description
This PDF datasheet is for the TI LM211-N voltage comparator.
About the Item
Texas Instruments LM211-N Voltage Comparator
The LM211-N is a voltage comparator that has input currents nearly a thousand times lower than devices like the LM106 or LM710.
They are also designed to operate over a wider range of supply voltages: from standard +/-15V op amp supplies down to the single 5V supply used for IC logic.
Their output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, they can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– Features
– Description
– Typical Applications
– Absolute Maximum Ratings
– Electrical Characteristics
– Typical Performance Characteristics
– Application Hints
– Circuit Techniques For Avoiding Oscillations In Comparator Applications
– Pin Diagrams
– Revision History
– Packaging Information
– Mechanical Data
– Package Outline
– Example Board Layout
– Example Stencil Design
