LM2900 National Semiconductor Quad Amplifier Data Sheet

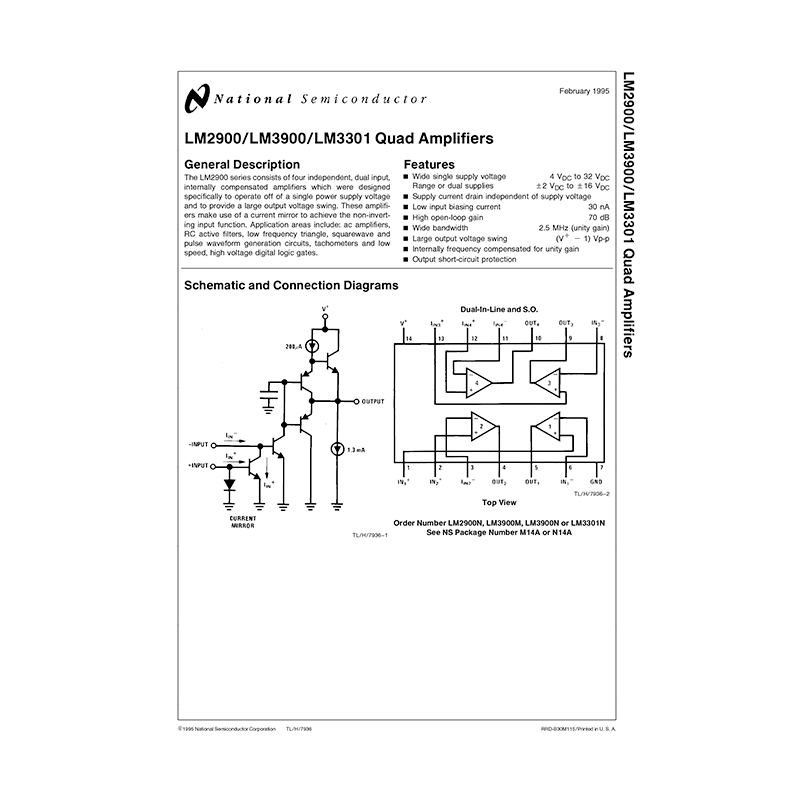

Download PDF datasheet for National Semiconductor LM2900 Quad Amplifier (EN) 20 pages 1995 zip
Description
This PDF datasheet is for the National Semiconductor LM2900 Quad Amplifier.
About the Item
National Semiconductor LM2900 Quad Amplifier
The series consists of four independent, dual input, internally compensated amplifiers which were designed specifically to operate off of a single power supply voltage and to provide a large output voltage swing. These amplifiers make use of a current mirror to achieve the non-inverting input function. Application areas include: ac amplifiers, RC active filters, low frequency triangle, squarewave and pulse waveform generation circuits, tachometers and low speed, high voltage digital logic gates.
FEATURES:
– Wide single supply voltage
– Supply current drain independent of supply voltage
– Low input biasing current 30 nA
– High open-loop gain 70 dB
– Wide bandwidth 2.5 MHz (unity gain)
– Large output voltage swing
– Internally frequency compensated for unity gain
– Output short-circuit protection
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– Schematic and Connection Diagrams
– LM2900 pinout
– Absolute Maximum Ratings
– Electrical Characteristics
– Application Hints
– Typical Performance Characteristics
– Typical Applications
– Split-Supply Applications
– Physical Dimensions
