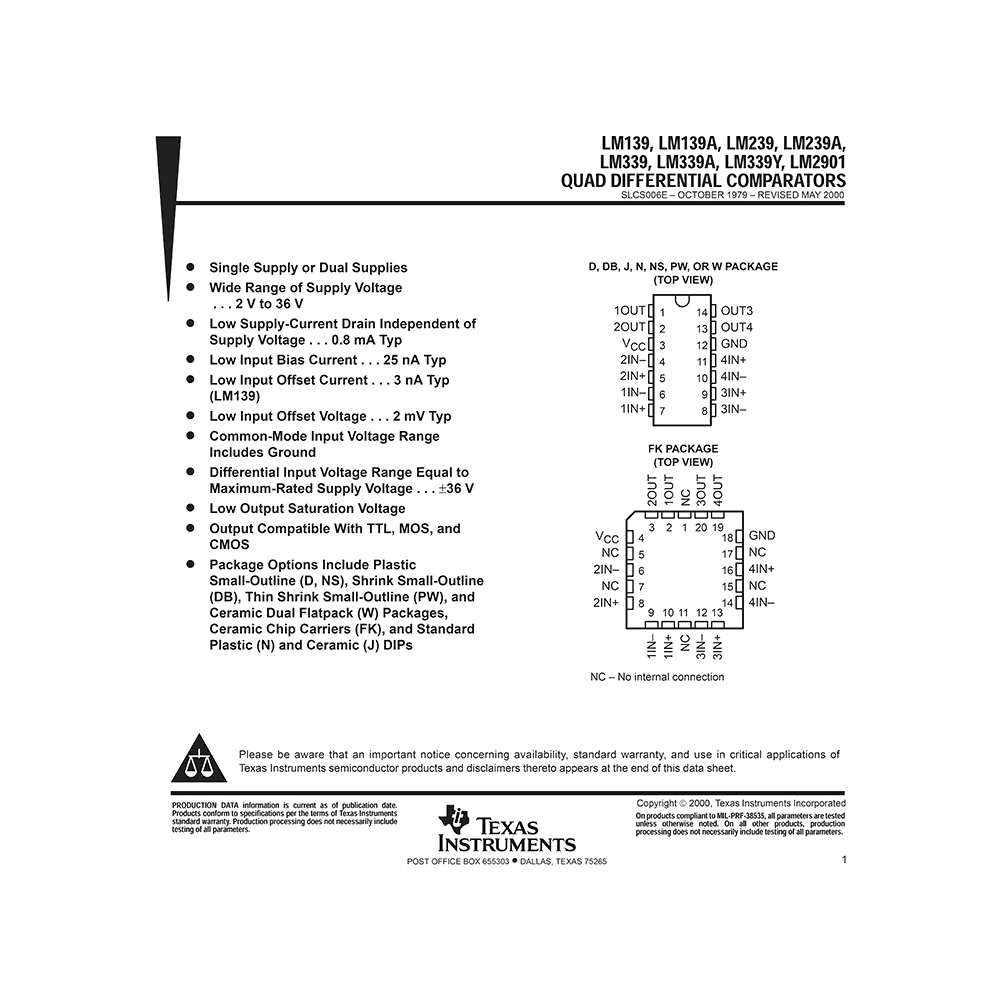

LM339Y TI Quad Differential Comparator Data Sheet
Download PDF datasheet for Texas Instruments LM339Y Quad Differential Comparator (EN) 8 pages SLCS006E 2000 zip
Description
This PDF datasheet is for the TI LM339Y Quad Differential Comparator.
About the Item
Texas Instruments LM339Y Quad Differential Comparator
– Single Supply or Dual Supplies
– Wide Range of Supply Voltage
– Low Supply-Current Drain Independent of Supply Voltage
– Low Input Bias Current
– Low Input Offset Current
– Low Input Offset Voltage
– Common-Mode Input Voltage Range Includes Ground
– Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage
– Low Output Saturation Voltage
– Output Compatible With TTL, MOS, and CMOS
– Package Options Include Plastic Small-Outline (D, NS), Shrink Small-Outline (DB), Thin Shrink Small-Outline (PW), and Ceramic Dual Flatpack (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs
These devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wire-AND relationships.
The LM139 and LM139A are characterized for operation over the full military temperature range of –55 deg C to 125 deg C. The LM239 and LM239A are characterized for operation from –25 deg C to 125 deg C. The LM339 and LM339A are characterized for operation from 0 deg C to 70 deg C. The LM2901 is characterized for operation from –40 deg C to 125 deg C.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– LM339Y pinout
– Schematic
– Absolute maximum ratings over operating free-air temperature range
– Dissipation Rating Table
– Electrical characteristics at specified free-air temperature
– Switching characteristics
Why download the Datasheet?
This datasheet provides all the information from Texas Instruments about the LM339Y Quad Differential Comparator, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
