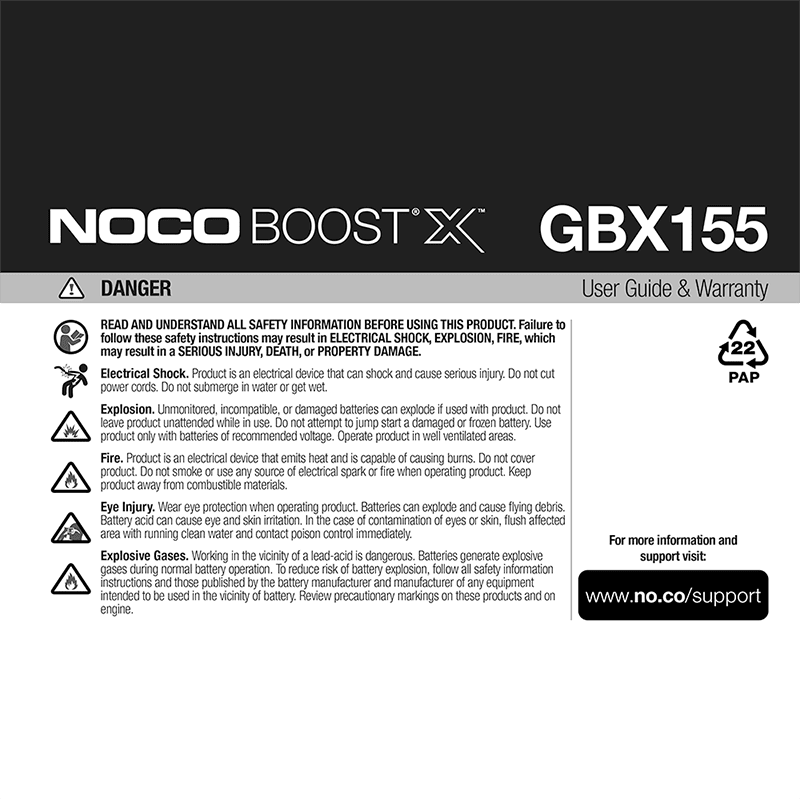

NOCO GBX155 Boost X 4250A Lithium Jump Starter User Guide

Description

This PDF user guide is for the NOCO Boost X GBX155 4250 Amp 12V UltraSafe Lithium Jump Starter.

About the Item

NOCO Boost X GBX155 4250 Amp 12V UltraSafe Lithium Jump Starter

UPC: 046221200096

NOCO Boost X GBX155 is a portable lithium jump starter for 12-volt batteries in vehicles up to 10.0-liters gasoline and 8.0-liter diesel engines, including cars, motorcycles, trucks, ATVs, boats, RVs, vans, SUVs, tractors, and more.

Read and understand all safety information before using this product.
Please read the user guide before using this product and retain for future reference.

(PDF) USER GUIDE (ENGLISH) (FRANÇAIS) (DEUTSCH) (ITALIANO) (ESPAÑOL) (PORTUGUÊS) (NEDERLANDS) (DANSK) (NORSK) (SUOMI) (SVENSKA) (ΕΛΛΗΝΙΚΆ) (TÜRKÇE) (POLSKI) (MAGYAR NYELV) (ČEŠTINA) (SLOVENČINA) (SLOVENŠČINA) (ROMÂNĂ) (БЪЛГАРСКИ) (EESTI KEEL) (LETTISH) (LIETUVIŲ KALBA) (РУССКИЙ) (БЕЛАРУСКАЯ) (УКРАЇНСЬКА) (BOSNIAK) (HRVATSKI) (日本語) (한국어) (CHINESE ) (עִבְרִית) (اَلْعَرَبِيَّةُ)

SUMMARY OF CONTENTS

– Important Safety Warnings

– How to use NOCO GBX155 :
Step 1: Charge the GBX155. Fast Charge. Auto Charger. Power Source.
Step 2: Connect to the Battery.
Step 3: Jump Starting. 60-Second Timeout. Low Voltage Batteries & Manual Override.

– User interface:
1. Power LED
2. Power Button
3. Reverse Polarity Error LED
4. Cold LED
5. Hot LED
6. Error LED
7. Internal Battery Level
8. Light Mode Button
9. Boost LED
10. Manual Override Button
11. Fast Charge LED

– Technical Specifications

– Warranty

TROUBLESHOOTING (LED: Error | Reason/Solution):
– Reverse Polarity Error LED: Solid Red | Reverse polarity detected. / Reverse the battery connections.
– Error LED: Single (1) Flash | Short circuit detected on battery clamps. / Remove all loads, reconnect clamps to battery.
– Error LED: Double (2) Flash | High voltage detected at clamps (the GBX155 is connected to a voltage system greater than 12V, such as 24V).
– Error LED: Triple (3) Flash | Bad battery cell detected. / When an internal battery cell has failed during charging.
– Error LED: Quadruple (4) Flash | Charge timeout error (i.e. the GBX155 has been in bulk charge for too long).
– Error LED: Sextuple (6) Flash | Back-Charge detected into the GBX155 through the clamps while in a Boost Mode (i.e. the GBX155 is in Manual Override and then connected to a system greater than 12V, such as 24V).
– Hot LED: Solid | Unit is fully operational, but approaching upper temperature limit. / Allow the unit to cool.
– Hot LED: Flashing | Unit is too hot to jump start, only the flashlight is available in this state. / Allow the unit to cool.
– Cold LED: Solid | Unit is fully operational, but approaching lower temperature limit. / Allow the unit to warm up.
– Cold LED: Flashing | Unit is too cold to jump start, only the flashlight is available in this state / Allow the unit to warm up.
– Fast Charge LED: Flashing Red | If charging the unit, check the cable or charger for damage / If charging a USB-C device, check cable or device for damage / If problem persists, contact NOCO support.
– Fast Charge LED: Solid Red | Connected Charger is Incompatible. / Unplug USB Cable, Turn Off/On the Unit, Use Different Charger.

Why Download the Manual?

This user guide provides all the information from NOCO about the Boost X GBX155 UltraSafe Lithium Jump Starter, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
