Radyne Tiernan ABR202A Digital Audio Broadcast Receiver Installation / Operation Guide
Download PDF user manual for Radyne Tiernan ABR202A Digital Audio Broadcast Satellite Receiver (EN) 118 pages 01-0961-401 Rev.A 2006 zip
Description
This PDF installation and operation manual is for the Radyne Tiernan ABR202A Digital Audio Broadcast Satellite Receiver.
About the Item
Radyne Tiernan ABR202A Digital Audio Broadcast Satellite Receiver
The ABR202A is a multiple transmission rate digital audio receiver.
Satellites have proven to be a reliable method of communication for distribution of CD-quality digital audio. The Integrated Digital Audio Distribution Network, of which the ABR is a key component, is a recognized worldwide standard for digital audio distribution.
The ABR202A is the next generation receiver product, featuring functional backward compatibility to the ABR200 and ABR202.
The unique capabilities of the Tiernan digital audio system allow a network to start out small (offering a single monaural or stereo channel) and grow to a larger multichannel system without replacement of receiver hardware.
Fast, easy selection of audio channels can be made either at the receiver or at the studio uplink.
The combination of Tiernan and Radyne transmission technology and the professional standard digital audio compression technology (ISO/MPEG Layer II/IIA) achieves reliable and efficient digital audio distribution. The Tiernan digital audio distribution system also provides asynchronous data distribution and relay contact closures for control of external station equipment.

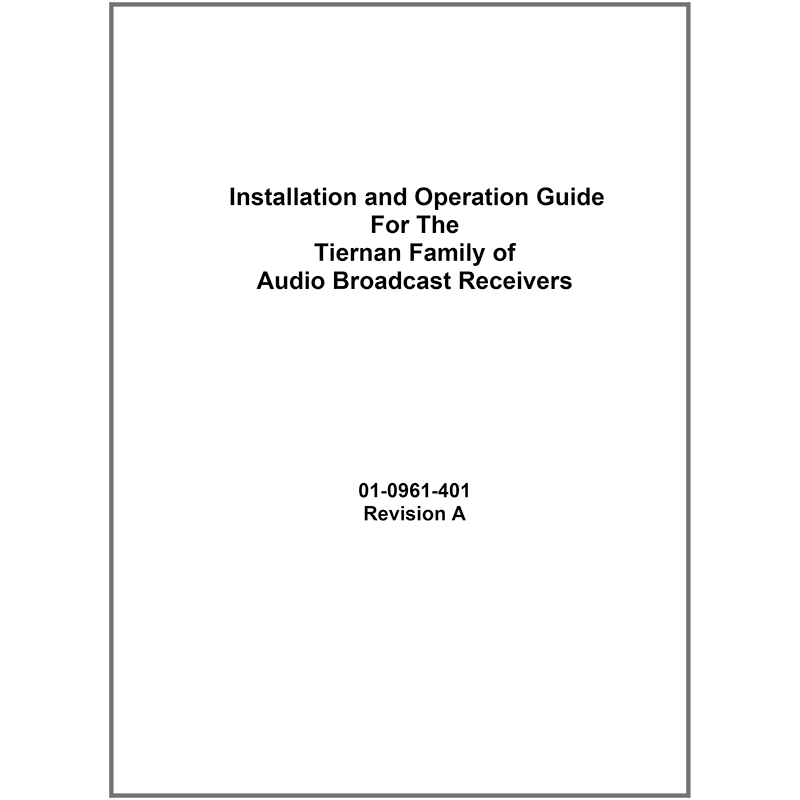

(PDF) INSTALLATION AND OPERATION GUIDE (ENGLISH)
SUMMARY OF CONTENTS
– Satellite Digital Audio Distribution Network Overview
– ABR202A Overview and Features
– Functional Description and Theory of Operation
– Quick Installation
– Full Installation and Startup
– Remote Monitor and Control Operation
– Maintenance and Troubleshooting
– Technical Specifications and Port Information
– Interface Pinouts
– Telephone Modem Operation
– Interfacility Link Cable Characteristics
– Troubleshooting
Why download the Manual?
This installation and operation guide provides all the information from Radyne / Tiernan about the ABR202A Digital Audio Broadcast Satellite Receiver, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
