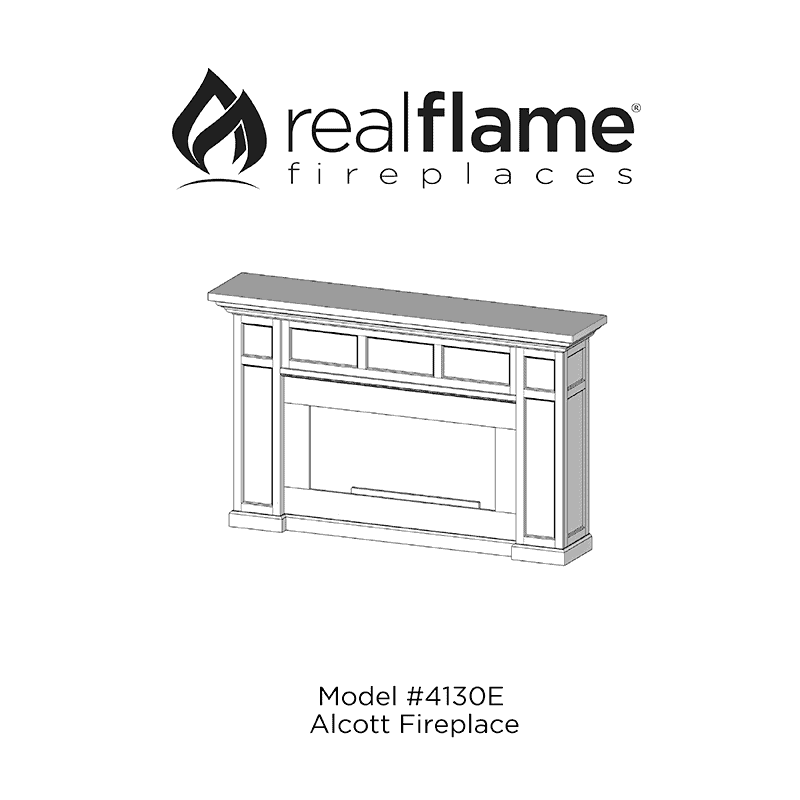

Real Flame 4130E Alcott Landscape Electric Fireplace User Manual

Description

This PDF instruction manual is for the Real Flame 4130E Alcott Electric Fireplace with FireBox 4192 insert.

About the Item

Real Flame 4130E Alcott Landscape Electric Fireplace (with FireBox insert model: 4192)

4130E-WO – White Oak
4130E-AB – Aged Barrel
4130E-EO – English Oak
4130E-W – White

Part of the Real Flame VividFlame Landscape Series, this widescreen electric firebox mimics the look of a real, flickering fire, but does not require a chimney or vents and conveniently plugs into a standard outlet.
This free-standing, extra-long indoor fireplace has a mantel with a real wood finish and features six flame colors, five flame brightness levels, adjustable thermostat, timer function and automatic safety shut-off.
The electric fireplace insert provides supplemental heat for rooms up to 1,000 sq ft or the heater can be turned off so you can enjoy the comforting ambiance of a glowing fireplace year-round.
Mantel, firebox with log set, hardware and remote control are included.

Real Flame electric fireplaces mimic the look of a real fire but do not require a chimney or vents and plug into a standard three-prong outlet. After assembly, place your fireplace in the desired location, install the anti-topple device if required, plug into an outlet, and turn on the firebox by using the touch controls or remote control. The LED flames flicker realistically and the incorporated heater warms your room. The thermostat is adjustable so the heater can be turned off and you can enjoy the charm of a fire year-round. Customize your fireplace using the brightness settings, timer function and, in some models, flame color.

TECHNICAL INFO:
– Heat output: 5,100 BTUs
– Heating power: 120V/60Hz, 1,500W, 12.6 amps
– Infrared quartz heating and LED lighting
– Constructed of solid wood veneered MDF, powder coated steel and glass
– Includes mantel, electric firebox, remote control, 6′ power cord with lay-flat plug, anti-topple safety device and hardware
– Adjustable thermostat settings: 71, 75, 78, 82, 86, 99 deg F (22, 24, 26, 28, 30, 37 deg C)
– Provides supplemental heat for rooms up to 1,000 sq ft
– Thermostat turns off when desired temperature is reached
– Turn heat option off to enjoy heatless flames year-round
– 6 flame colors: orange, red-orange, white, blue, blue-white, and multicolor
– 5 flame brightness levels
– Multiple timer settings ranging from 10 minutes to 9 hours
– Fireplace mantel supports up to 30 lbs. Do not place TV on the mantel
– Plugs into a standard three-prong outlet
– Automatic safety shut off device
– CSA and FCC certified
– Developed by our in-house design team and manufactured in China
– 1 year limited warranty on electric firebox and mantel
– Assembly required
– Ships in two boxes via small parcel

DIMENSIONS:
– Fireplace: 74.75″L x 15.75″W x 45.75″H; 161 lbs
– Firebox: 39″L x 5.75″W x 18.25″H; 42 lbs
– Shipping: Box 1: 79.5″L x 20.5″W x 11″H; 137 lbs, Box 2: 42″L x 8.75″W x 21.75″H; 47 lbs

Read and understand all instruction manuals included with your firebox and mantel before installing this unit.
Read all instructions before installing or using this fireplace. Save the firebox user’s guide for future reference.

DOCUMENT(S) AVAILABLE

(PDF) MANTEL ASSEMBLY INSTRUCTIONS

Available Languages

ENGLISH (EN) | FRANÇAIS (FR) | ESPAÑOL (ES)

SUMMARY OF CONTENTS

– Parts List
– Hardware Kit
– Mantel Assembly steps

INSTALLING THE 4192 ELECTRIC FIREBOX
– Steps to install the electric firebox into your Real Flame fireplace mantel.

ANTI-TOPPLE DEVICE INSTALLATION
Follow all instructions included with your Real Flame mantel and firebox.

WARRANTY & RETURN POLICIES
– Warranty
– Return Policy
– Replacement Parts
– Incorrect Order Received

(PDF) FIREBOX MODEL 4192 USER GUIDE / GUIDE DE L’USAGER / GUÍA PARA EL USUARIO

SUMMARY OF CONTENTS

– Parts list
– Hardware kit
– Important safety instructions
– Glass panel information
– Warnings
– Site selection and preparation
– Operation and features
– Using the remote control
– Using the control panel
– Care and maintenance
– Battery replacement (CR2025)
– Cleaning

Why download the Manual?

This instruction manual provides all the information from Real Flame about 4130E Alcott electric fireplace with FireBox 4192 insert, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
