RGP104 Diotec 1A High Reliability Fast Recovery Diode Data Sheet

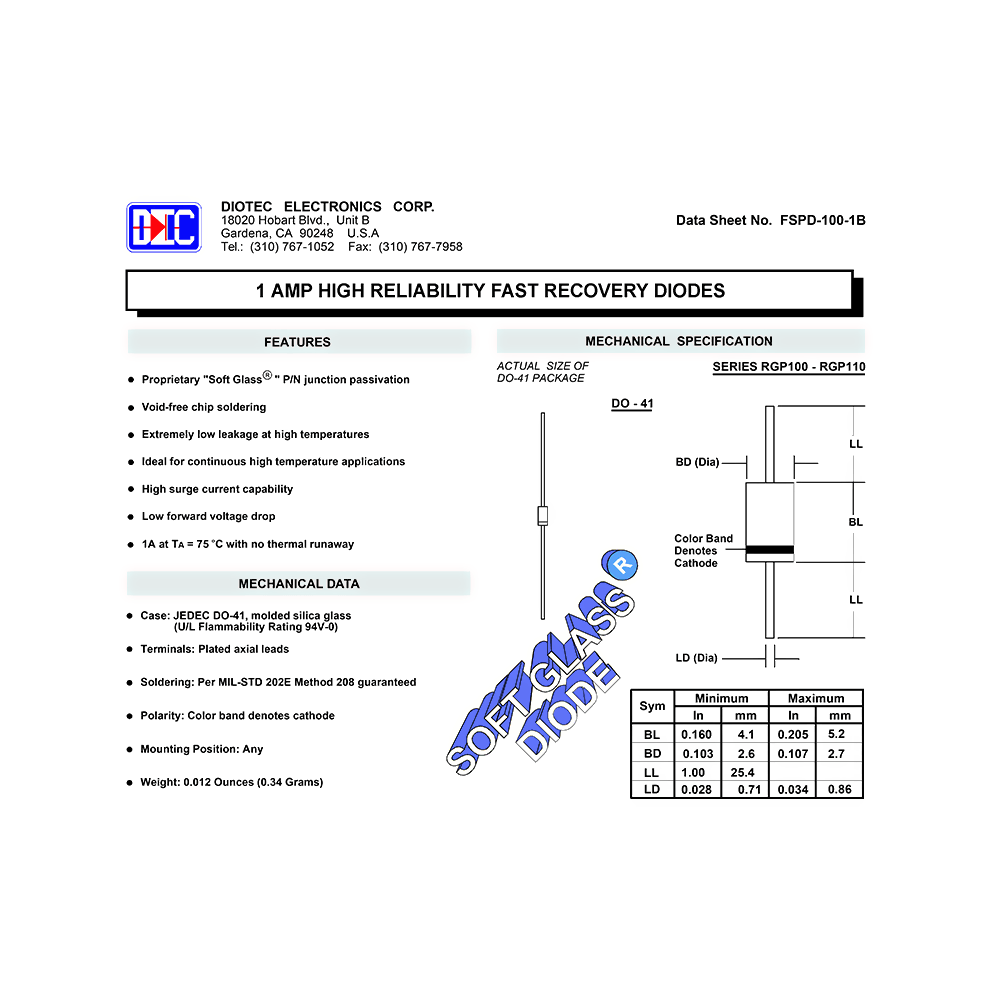

Download PDF datasheet for Diotec Electronics RGP104 1 Ampere 400 Volt High Reliability Fast Recovery Diode (EN) 2 pages FSPD-100-1B zip

SKU: RGP104DIOTECELECTRONICSDS Category: Brand:

Description

This PDF datasheet is for the Diotec RGP104 Diode.

Diotec Electronics RGP104 1 Ampere 400 Volt High Reliability Fast Recovery Diode

FEATURES:
– Proprietary “Soft Glass”(R) P/N junction passivation
– Void-free chip soldering
– Extremely low leakage at high temperatures
– Ideal for continuous high temperature applications
– High surge current capability
– Low forward voltage drop
– 1A at TA = 75 C with no thermal runaway

(PDF) DATASHEET (ENGLISH)

CONTENTS

MECHANICAL DATA

MECHANICAL SPECIFICATION

RGP104 PINOUT: Color Band Denotes Cathode

MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS
– Maximum DC Blocking Voltage
– Maximum RMS Voltage
– Maximum Peak Recurrent Reverse Voltage
– Average Forward Rectified Current
– Peak Forward Surge Current
– Maximum Forward Voltage
– Maximum Reverse Recovery Time
– Maximum Average DC Reverse Current
– Typical Thermal Resistance
– Typical Junction Capacitance
– Operating and Storage Temperature Range

RATING & CHARACTERISTIC CURVES
– Figure 1. Forward Current Derating Curve
– Figure 2. Maximum Non-Repetitive Surge Current
– Figure 3. Typical Forward Characteristic
– Figure 4. Typical Junction Capacitance
– Figure 5. Reverse Recovery Test Setup And Time Characteristic
