Rocksolar Weekender Max 80W/111Wh Portable Power Station RS81MAX User Manual
Download PDF user manual for Rocksolar Technology Weekender Max RS81MAX Portable Power Station 80W (120W peak) / 111Wh Lithium ion (EN) 10 pages 2023 zip
Description
This PDF user manual is for the Rocksolar Weekender Max 80W/111Wh Portable Power Station, Model RS81MAX.
About the Item
Rocksolar Weekender Max RS81MAX 80W (120W peak) / 111Wh Lithium ion Portable Power Station
The ROCKSOLAR RS81 MAX is an impressively portable and potent 80W power station. This versatile unit incorporates an advanced battery management system to protect you and your devices from overcurrent, and a smart cooling fan to deter overheating.
The RS81 MAX offers multiple charging solutions with its array of ports. It includes 1 AC Output, 1 DC (12-16.8V/10A, 10.8A max) OUT, 2 USB 18W Ports, 2 USB 5V/2.4A Ports, and 1 USB C Qualcomm QuickCharge 3.0 18W port. The unit can accept a DC 15V~25V/1.2A Max input from a solar panel.
Despite its lightweight design of just 2.9 lbs, the RS81 MAX holds a large 30000mAh/111Wh lithium battery. This device is incredibly quiet, making it a convenient power station to carry anywhere. It delivers a Modified Sinewave with a peak wattage of 150W and a lifecycle surpassing 1000+ charges.
The RS81 MAX is designed for swift recharging, be it the unit itself or your devices. Charge your devices using the included cable via a wall output, or recharge the ROCKSOLAR power station using ROCKSOLAR 30W, 60W, or 100W Solar Panels (sold separately).
The RS81 MAX is more than just a battery – like all ROCKSOLAR power stations, it’s designed to offer additional functionalities. This unit features an LED Display to show the remaining battery life, and an ultra-bright LED light panel to illuminate your surroundings, making it a handy companion for any situation.
The unit provides Modified Sine Wave output, and can be compatible to AC electric appliance that works with Sinusoidal waveform (power less than 80W). However, anything that uses an AC motor isn’t going to work to full capacity on a modified sine wave. Such as an electrical fan, i t will even make the electric appliance arouse some noise. Appliances like refrigerators, microwaves, and compressors that use AC motors and some delicate medical equipment will be better off with a pure sine wave inverter.
This manual is to help you use the product correctly.

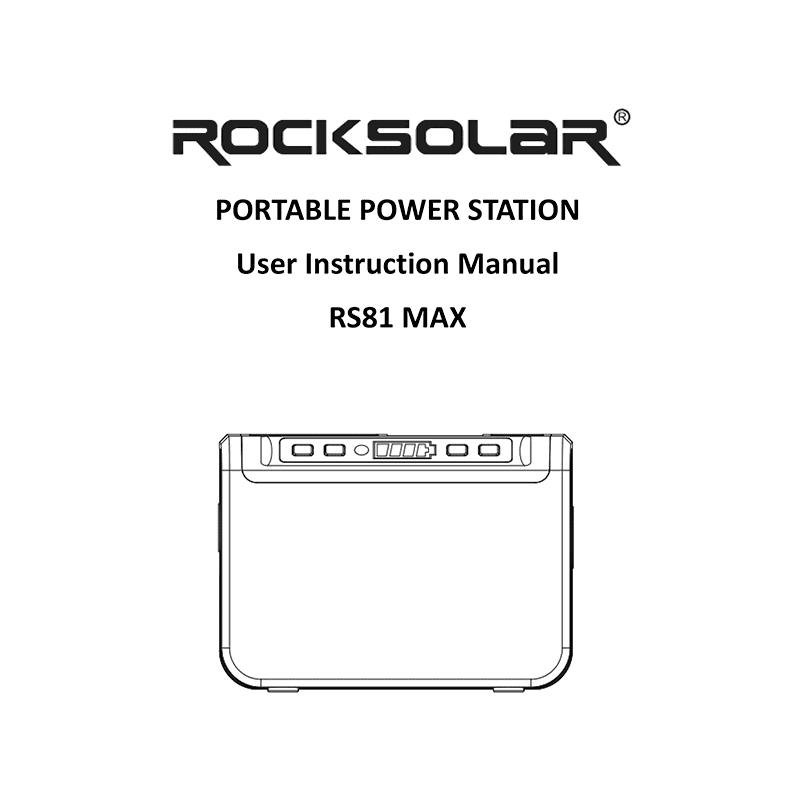

(PDF) USER MANUAL (ENGLISH)
SUMMARY OF CONTENTS
ABOUT THE UNIT
PRODUCT PARAMETERS
PRODUCT DESCRIPTION
PRODUCT INSTRUCTION
1) How to provide power for DC12V appliances (such as head lamp, fan) with this product?
– Protection Mode
2) How to provide power for AC appliances with this product?
– Short circuit/Overpower Protection
3) How to provide power for USB(C) digital appliances with this product?
– Quick Charge Output
4) How to use the flashlight
5) How to use the Led light panel
6) How to charge the unit?
a. Charge through AC Wall Charger
b. Charge from Solar panel
SECURITY AND MAINTENANCE
PRODUCT APPLICATION SKILLS
COLD WEATHER USAGE
RECYCLE
BATTERY INFORMATION
WARRANTY
– Warranty Period
– Remedy
– Limitation Of Liability
– Exclusions
HOW TO RECEIVE SERVICE
HOW TO CONTACT ROCKSOLAR TECHNOLOGY
Why Download the Manual?
This user manual provides all the information from Rocksolar Technology about the Weekender Max RS81MAX Power Station, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to Download the Manual?
Download it by clicking the button below
