RS202L Rectron 2A 100V Bridge Rectifier Data Sheet

Download PDF datasheet for Rectron Semiconductor RS202L Single-phase 2A 100V Silicon Bridge Rectifier (EN) 2 pages 2001 zip

SKU: RS202LRECTRONDS2001 Category: Brand:

Description

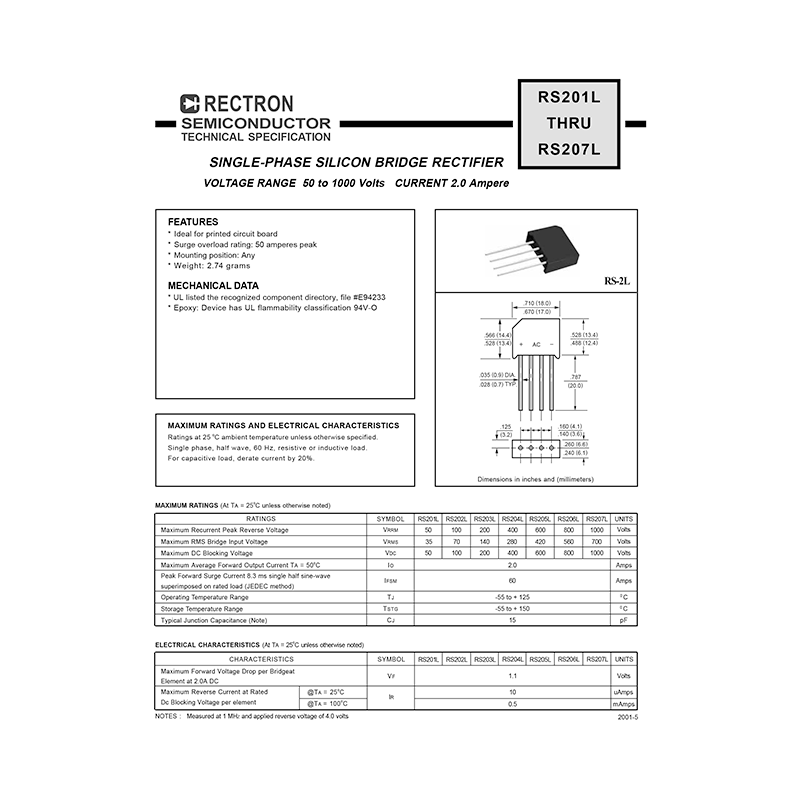

This PDF datasheet is for the Rectron RS202L bridge rectifier.

Rectron Semiconductor RS202L Single-phase 2-Ampere 100-Volt Silicon Bridge Rectifier

Single-phase 2.0 Ampere Silicon Bridge Rectifier

FEATURES
– Ideal for printed circuit board
– Surge overload rating: 50 amperes peak
– Mounting position: Any
– Weight: 2.74 grams
– UL listed the recognized component directory, file #E94233
– Epoxy: Device has UL flammability classification 94V-O

(PDF) DATASHEET (ENGLISH)

CONTENTS

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

RS202L PINOUT

ELECTRICAL CHARACTERISTICS

RATING AND CHARACTERISTIC CURVES
– Maximum Non-Repetitive Forward Surge Current
– Typical Forward Current Derating Curve
– Typical Instantaneous Forward Characteristics
– Typical Reverse Characteristics

Why download the Datasheet?

This datasheet provides all the information from Rectron Semiconductor about the RS202L Rectifier, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Datasheet?

Download it by clicking the button below
