STK412-150 Sanyo 2-ch Audio Power Amplifier Data Sheet

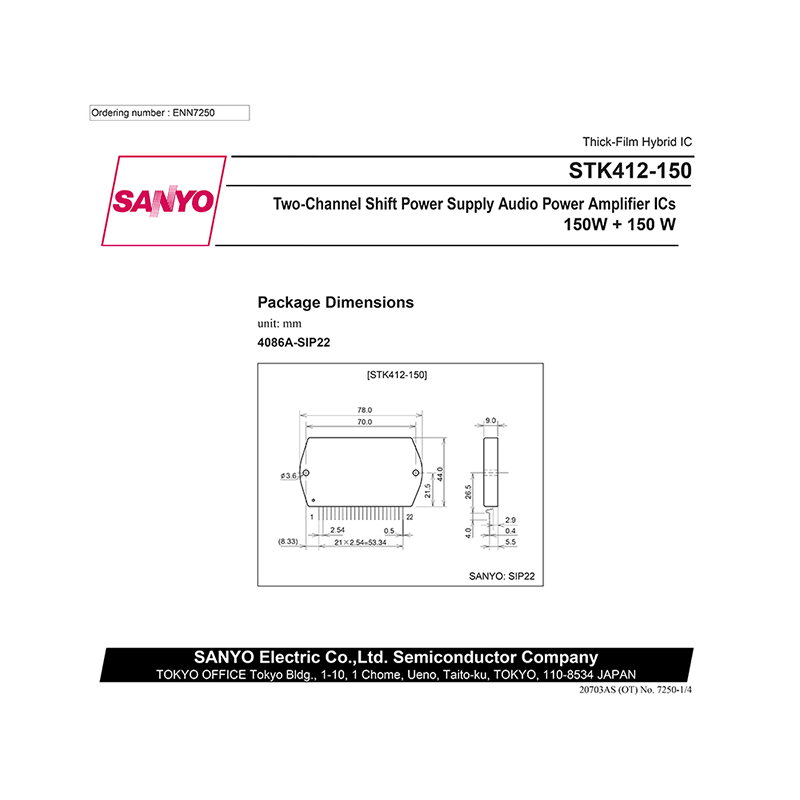

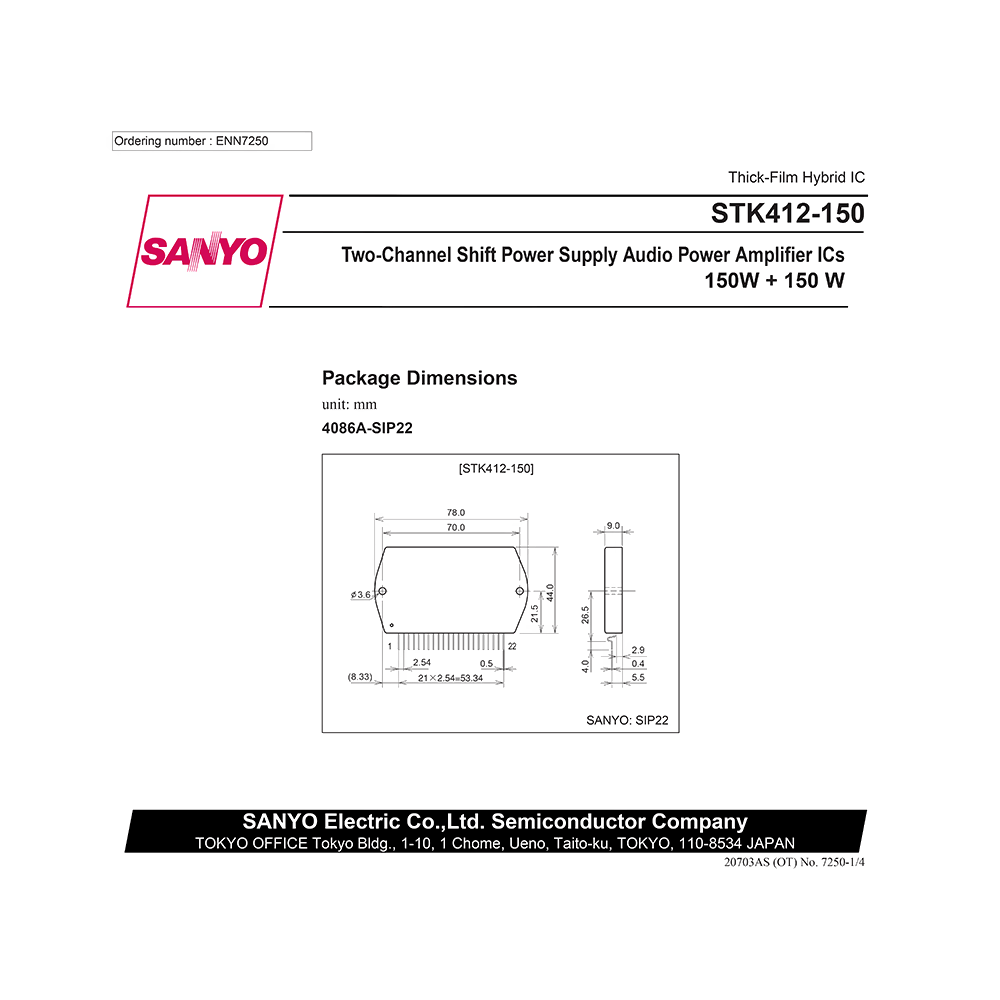

Download PDF datasheet for Sanyo STK412-150 150W+150W Two-Channel Shift Power Supply Audio Power Amplifier (EN) 4 pages 20703AS (OT) No.7250 2003 zip
Description
This PDF data sheet is for the Sanyo STK412-150 audio power amplifier.
About the Item
Sanyo STK412-150 150W+150W Two-channel Shift Power Supply Audio Power Amplifier
The STK412-000 series are class H audio power amplifier hybrid ICs that feature a built-in shift power supply circuit. These ICs provide high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power transistors according to the detected level of the input audio signal.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– Overview
– Features
– Package Dimensions
– Series Organization
– Specifications
– Maximum supply voltage
– Thermal resistance
– Junction temperature
– Operating IC substrate temperature
– Storage temperature
– Allowable load shorted time
– Operating Characteristics
– Output power
– Total harmonic distortion
– Frequency characteristics
– Input impedance
– Output noise voltage
– Quiescent current
– Midpoint voltage
– Specified Transformer Power Supply (MG-250 equivalent)
– Specified Transformer Power Supply (MG-200 equivalent)
– Internal Equivalent Circuit
– Sample Application Circuit
– STK412-150 pinout
Why download the Datasheet?
This datasheet provides all the information from Sanyo about the STK412-150 audio power amplifier, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
